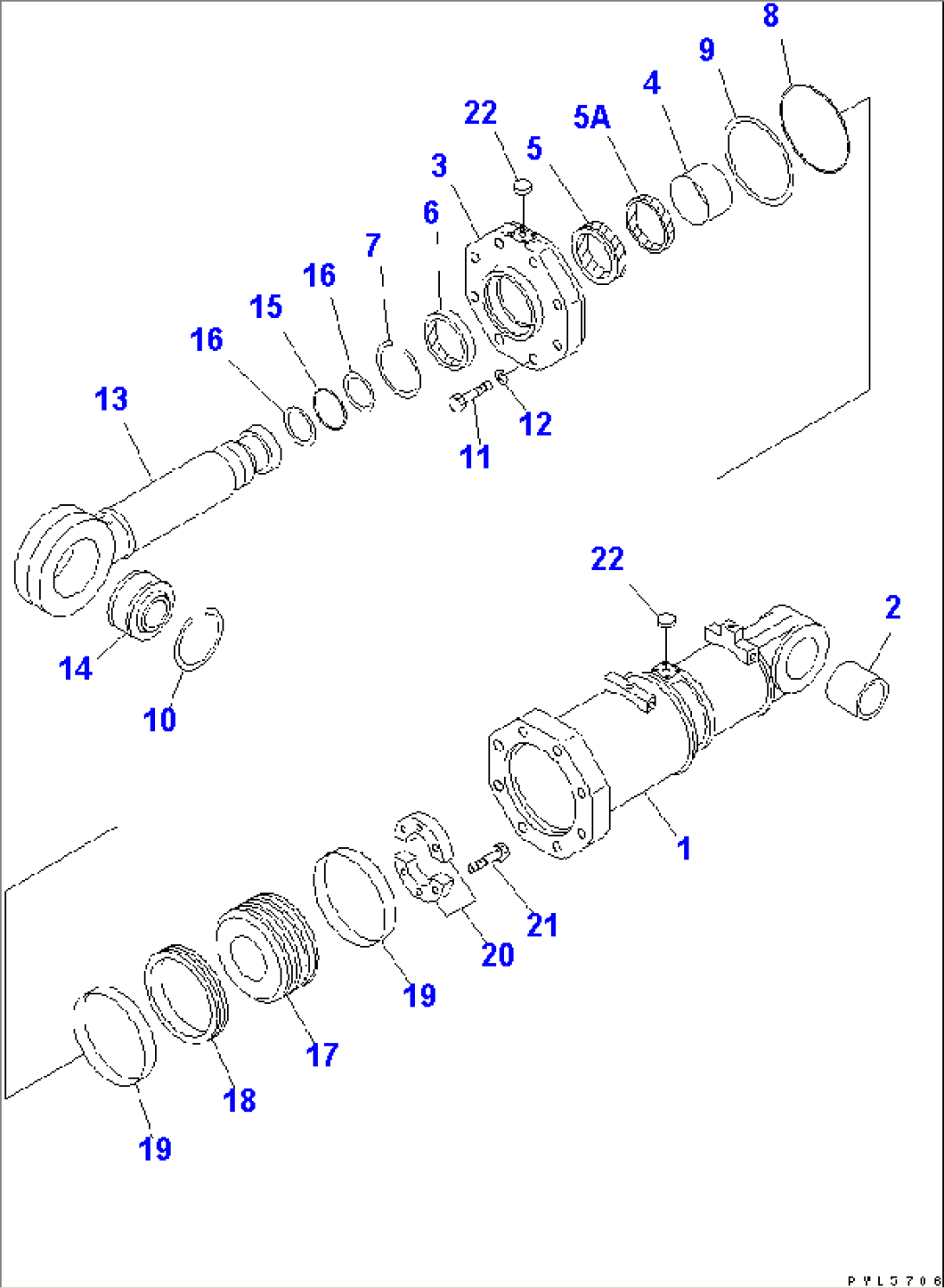

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-01-0X440 | CYLINDER ASS'Y,(FINAL COATING) | 10105- | ||
| 1 | 19M-63-52540 | CYLINDER | 10105- | |
| 2 | 707-76-13030 | BUSHING | 10105- | |
| 3 | 707-27-32020 | CYLINDER,HEAD | 10105- | |
| 4 | 707-52-91351 | BUSHING | 10105- | |
| 5 | 707-51-16030 | PACKING,ROD (KIT) | 10105- | |
| 5A | 707-51-16850 | RING,BUFFER (KIT) | 10105- | |
| 6 | 707-56-16740 | SEAL,DUST (KIT) | 10105- | |
| 7 | 07179-14180 | RING,SNAP | 10105- | |
| 8 | 07000-15315 | O-RING (KIT) | 10105- | |
| 9 | 07001-05315 | RING,BACK-UP (KIT) | 10105- | |
| 10 | 04071-00210 | RING,SNAP | 10105- | |
| 11 | 01011-83640 | BOLT | 10105- | |
| 12 | 01643-33690 | WASHER | 10105- | |
| 13 | 19M-63-52521 | ROD,PISTON | 10105- | |
| 14 | 19M-09-11521 | BUSHING | 10105- | |
| 15 | 07000-B5130 | O-RING (KIT) | 10105- | |
| 16 | 707-35-91350 | RING,BACK-UP (KIT) | 10105- | |
| 17 | 707-36-32030 | PISTON | 10105- | |
| 18 | 707-44-32010 | RING,PISTON (KIT) | 10105- | |
| 19 | 707-39-32010 | RING,WEAR (KIT) | 10105- | |
| 20 | 707-40-26011 | SPACER | 10105- | |
| 21 | 01010-61665 | BOLT | 10105- | |
| 22 | 07378-11200 | HEAD,(FOR SHIPPING) | 10105- | |
| 707-98-95430 | SERVICE KIT | 10105- |
