| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-43-73260 | CABLE | 1001- | |
| 2 | 04211-20844 | YOKE | 1001- | |
| 3 | 04205-10822 | PIN | 1001- | |
| 4 | 04050-12015 | PIN,COTTER | 1001- | |
| 5 | 04434-51410 | CLIP | 1001- | |
| 6 | 01435-01016 | BOLT | 1001- | |
| 7 | 567-43-73280 | BRACKET | 1001- | |
| 8 | 01435-01020 | BOLT | 1001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd255 5 s/n 1001 up (applies to s/n 1601 up (saa6d125e 3))
- Main frame and related parts
- Dump control and positioner
Поиск по каталогу

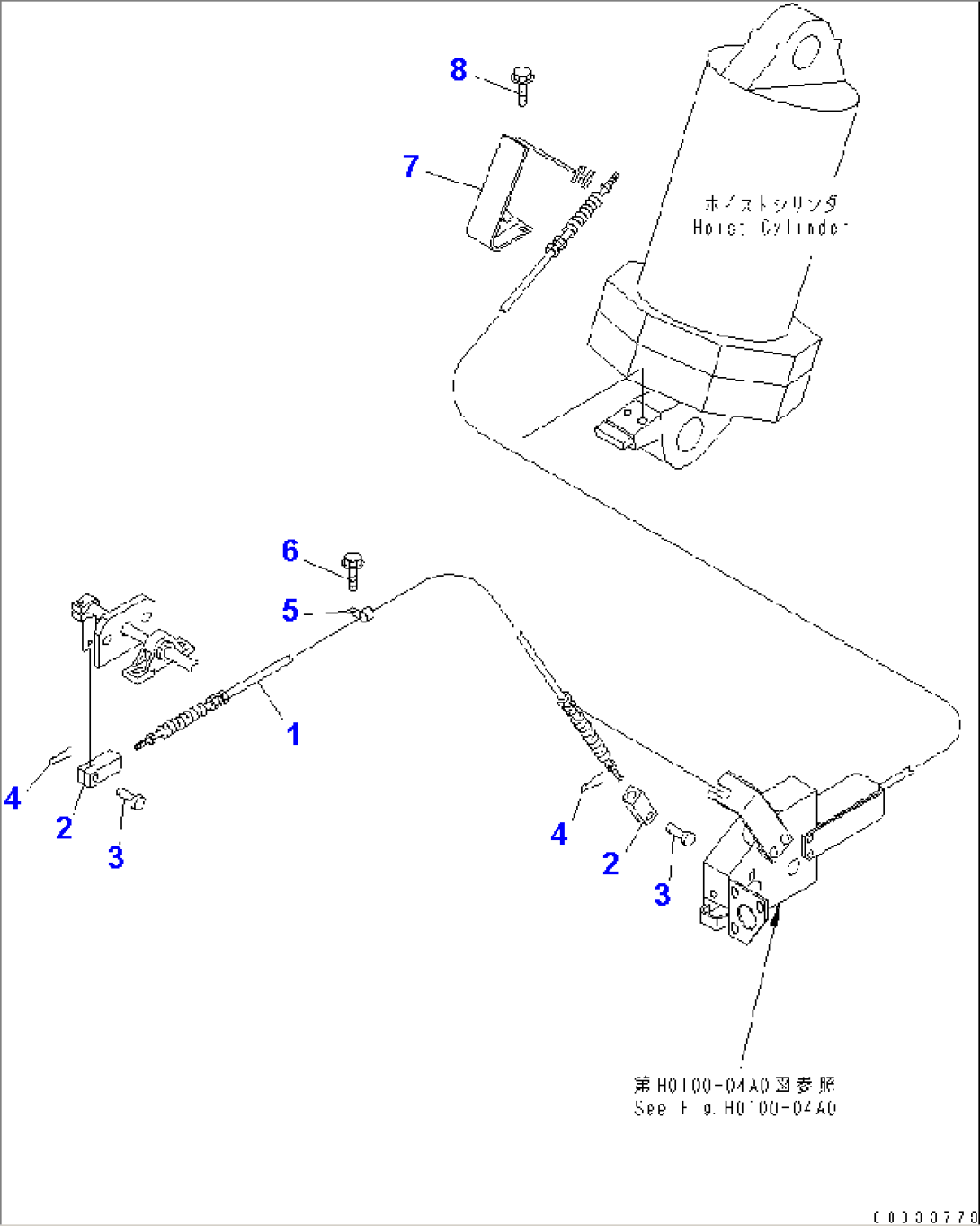

DUMP CONTROL AND POSITIONER
