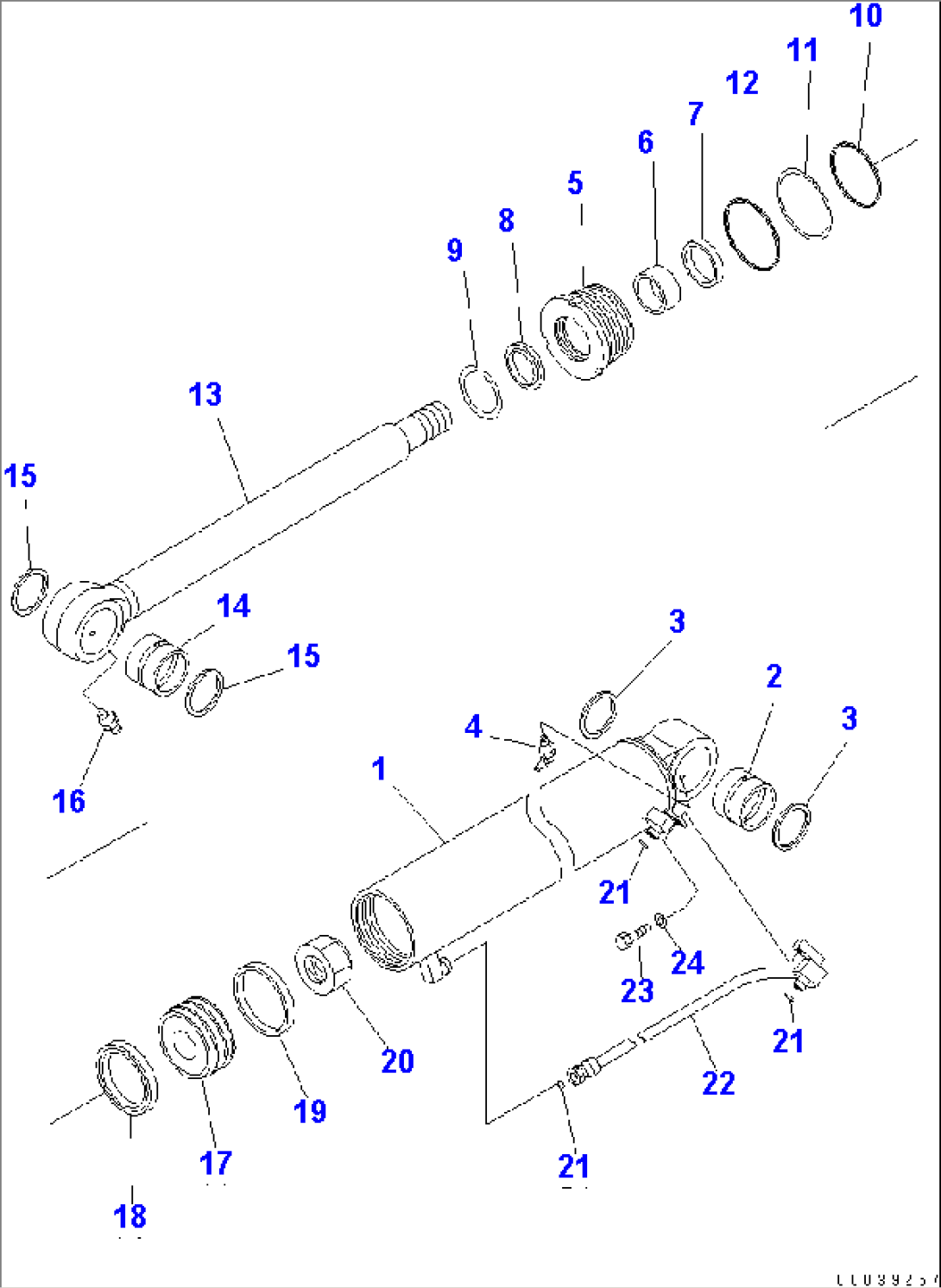

| Item | Part No. | Part Name | Qty | Serial No. |
| G2 | (\8\707-00-XZ481) | CYLINDER ASS'Y,R.H. | 1501- | |
| ==================== | ||||
| 707-00-0C711 | CYLINDER ASS'Y,DUMP, R.H. | 1501- | ||
| 1 | 707-11-13651 | CYLINDER,R.H. | 1501- | |
| 2 | 07144-10706 | BUSHING | 1501- | |
| 3 | 07145-00070 | SEAL,DUST (KIT) | 1501- | |
| 4 | 07020-00900 | FITTING,GREASE | 1501- | |
| 5 | 707-29-13840 | HEAD,CYLINDER | 1501- | |
| 6 | 707-52-10700 | BUSHING | 1501- | |
| 7 | 707-51-70030 | PACKING,ROD (KIT) | 1501- | |
| 8 | 07016-00708 | SEAL,DUST (KIT) | 1501- | |
| 9 | 07179-12084 | RING,SNAP | 1501- | |
| 10 | 07000-12125 | O-RING (KIT) | 1501- | |
| 11 | 07146-02126 | RING,BACK-UP (KIT) | 1501- | |
| 12 | 07000-12130 | O-RING (KIT) | 1501- | |
| 13 | 14S-63-54120 | ROD,PISTON | 1501- | |
| 14 | 07144-10706 | BUSHING | 1501- | |
| 15 | 07145-00070 | SEAL,DUST (KIT) | 1501- | |
| 16 | 07020-00000 | FITTING,GREASE | 1501- | |
| 17 | 707-36-13240 | PISTON | 1501- | |
| 18 | 707-44-13180 | RING,PISTON (KIT) | 1501- | |
| 19 | 07156-01315 | RING,WEAR (KIT) | 1501- | |
| 20 | 707-67-52020 | NUT | 1501- | |
| 21 | 02896-11012 | O-RING | 1501- | |
| 22 | 707-86-47121 | TUBE,R.H. | 1501- | |
| 23 | 01010-81030 | BOLT | 1501- | |
| 24 | 01643-31032 | WASHER | 1501- | |
| ==================== | ||||
| KIT | 707-99-43640 | SERVICE KIT | 1501- |
