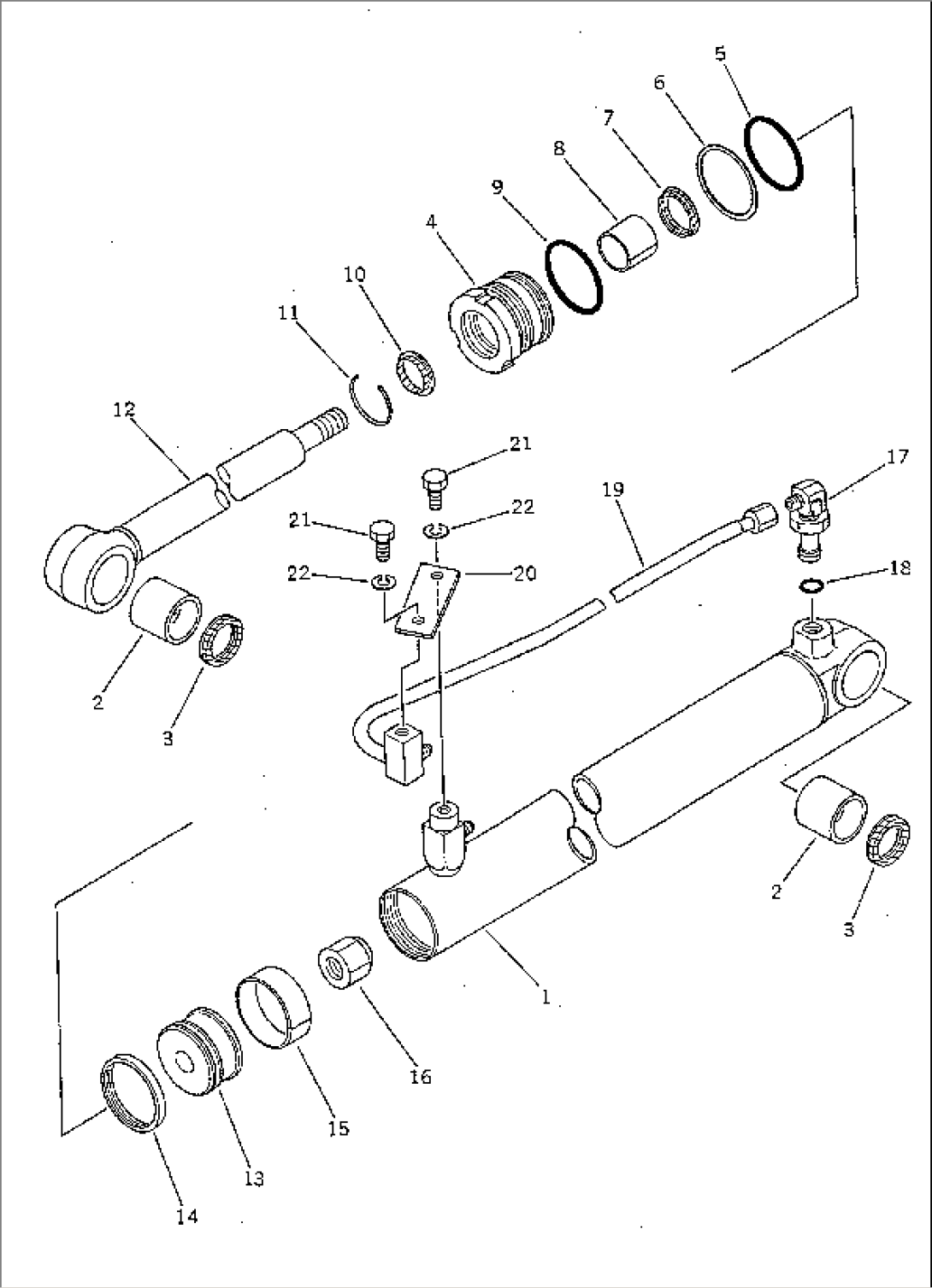

| Item | Part No. | Part Name | Qty | Serial No. |
| 361-63-22100 | DUMP CYLINDER ASS'Y | 1001- | ||
| 1 | 361-63-22140 | CYLINDER | 1001- | |
| 2 | 07143-10304 | BUSHING | 1001- | |
| 3 | 07145-00035 | SEAL,DUST | 1001- | |
| 4 | 707-29-60920 | HEAD,CYLINDER | 1001- | |
| 5 | 07000-12055 | O-RING | 1001- | |
| 6 | 07001-02055 | RING,BACK-UP | 1001- | |
| 7 | 707-51-35210 | PACKING,ROD | 1001- | |
| 8 | 07177-03525 | BUSHING | 1001- | |
| 9 | 07000-02060 | O-RING | 1001- | |
| 10 | 175-63-75190 | SEAL,DUST | 1001- | |
| 11 | 07179-00054 | RING,SNAP | 1001- | |
| 12 | 361-63-22120 | ROD,PISTON | 1001- | |
| 13 | 707-36-60910 | PISTON | 1001- | |
| 14 | 707-44-60070 | RING,PISTON | 1001- | |
| 15 | 07155-00615 | RING,WEAR | 1001- | |
| 16 | 07165-12022 | NUT | 1001- | |
| 17 | 07235-10315 | ELBOW | 1001- | |
| 18 | 07002-12034 | O-RING | 1001- | |
| 19 | 361-63-22160 | TUBE | 1001- | |
| 20 | 362-846-1170 | PLATE | 1001- | |
| 21 | 01010-51020 | BOLT | 1001- | |
| 22 | 01602-21030 | WASHER,SPRING | 1001- |
