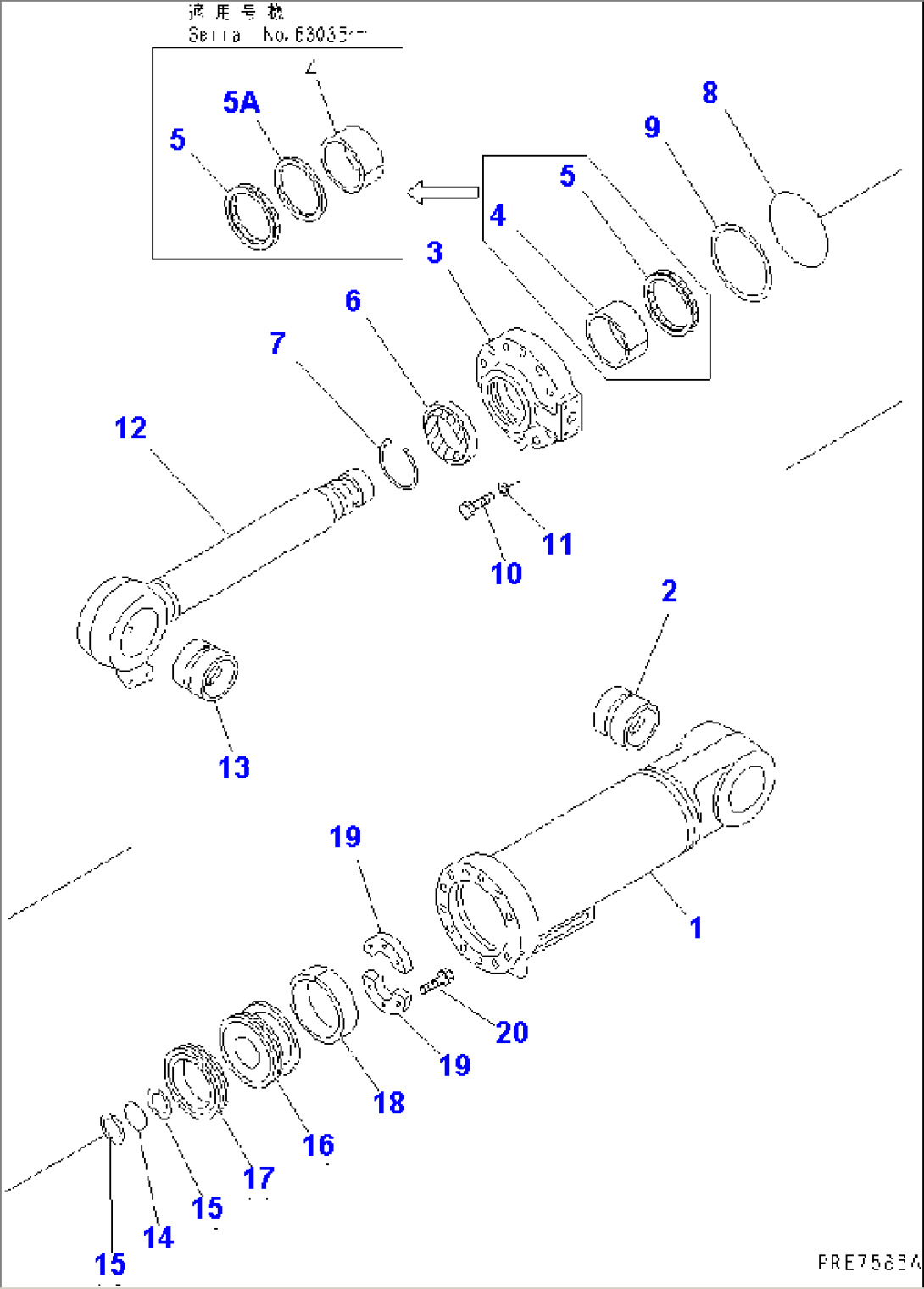

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-01-08572 | CYLINDER ASS'Y | 63036- | ||
| 707-01-08571 | CYLINDER ASS'Y | 63001-63035 | ||
| 707-01-02561 | CYLINDER ASS'Y | 63036- | ||
| 707-01-02560 | CYLINDER ASS'Y | 63001-63035 | ||
| 1 | \6\ | CYLINDER | 63001- | |
| 2 | 707-76-11010 | BUSHING | 63001- | |
| 3 | \6\ | HEAD,CYLINDER | 63036- | |
| \6\ | HEAD,CYLINDER | 63001-63035 | ||
| 4 | 707-52-90680 | BUSHING | 63036- | |
| 707-52-10910 | BUSHING | 63001-63035 | ||
| 5 | 707-51-90030 | PACKING,ROD (KIT) | 63001- | |
| 5A | 707-51-90640 | RING,BUFFER (KIT) | 63036- | |
| 6 | 195-63-94170 | SEAL,DUST (KIT) | 63001- | |
| 7 | 07179-13104 | RING,SNAP | 63001- | |
| 8 | 07000-15170 | O-RING (KIT) | 63001- | |
| 9 | 07146-05172 | RING,BACK-UP (KIT) | 63001- | |
| 10 | 01010-81865 | BOLT | 63001- | |
| 11 | 01643-31845 | WASHER | 63001- | |
| 12 | 707-58-90610 | ROD,PISTON | 63001- | |
| 13 | 707-76-11010 | BUSHING | 63001- | |
| 14 | 07000-12070 | O-RING (KIT) | 63001- | |
| 15 | 707-35-52910 | RING,BACK-UP (KIT) | 63001- | |
| 16 | 707-36-18400 | PISTON | 63001- | |
| 17 | 707-44-18180 | RING,PISTON (KIT) | 63001- | |
| 18 | 07156-01822 | RING,WEAR (KIT) | 63001- | |
| 19 | 707-40-18070 | SPACER | 63001- | |
| 20 | 01010-61240 | BOLT | 63001- | |
| SERVICE KIT | ||||
| KIT | 707-99-64520 | SERVICE KIT | 63036- | |
| KIT | 707-99-64410 | SERVICE KIT,DUMP CYLINDER | 63001-63035 |
