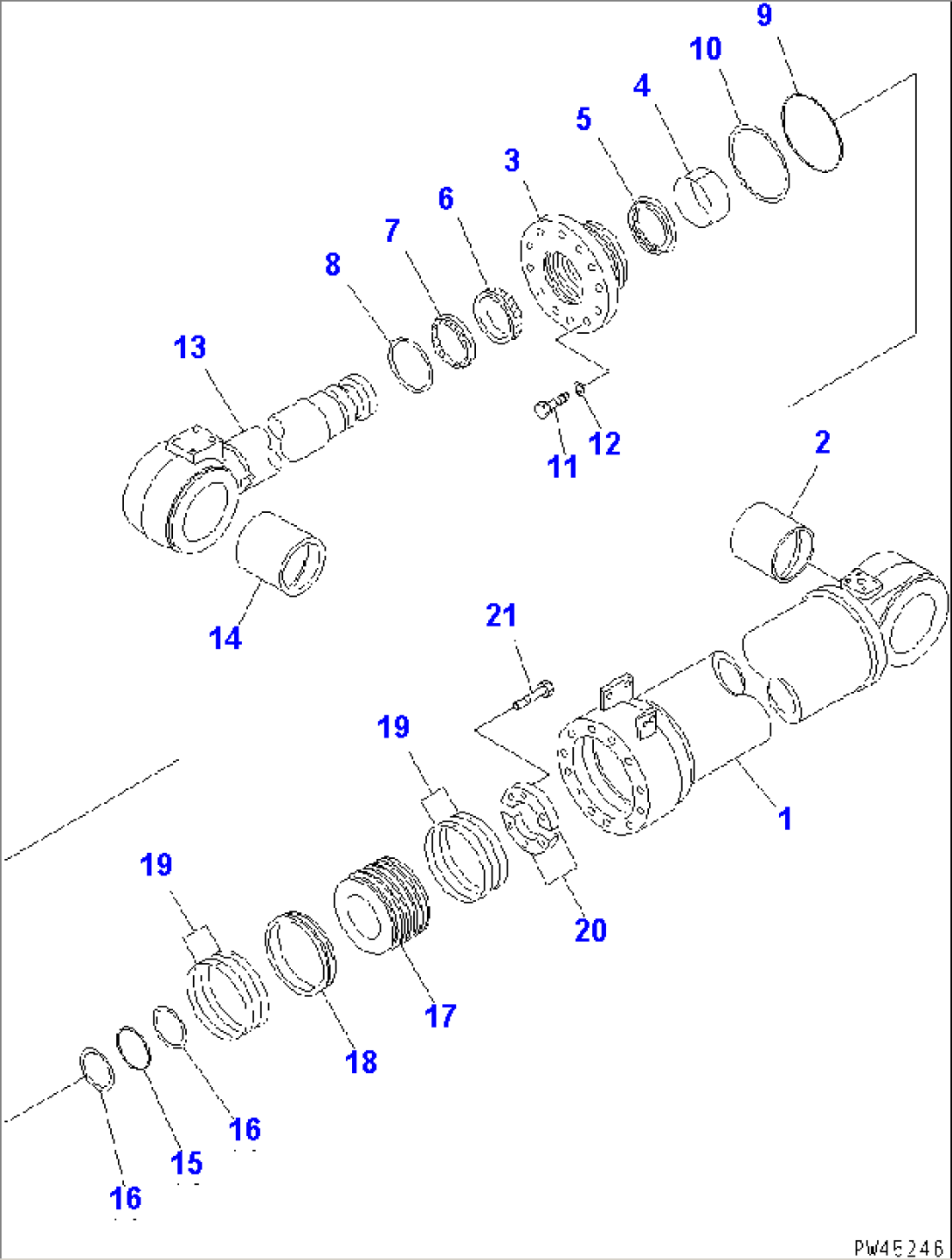

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-01-01220 | CYLINDER ASS'Y | 10001- | ||
| 1 | 707-13-28020 | CYLINDER | 10001- | |
| 2 | 427-70-11790 | BUSHING | 10001- | |
| 3 | 707-27-28110 | HEAD,CYLINDER | 10001- | |
| 4 | 707-52-91450 | BUSHING | 10001- | |
| 5 | 707-51-17640 | RING,BUFFER | 10001- | |
| 6 | 707-51-17130 | PACKING,ROD | 10001- | |
| 7 | 707-56-17510 | SEAL,DUST | 10001- | |
| 8 | 07179-15190 | RING,SNAP | 10001- | |
| 9 | 07000-15275 | O-RING | 10001- | |
| 10 | 178-63-22460 | RING,BACK-UP | 10001- | |
| 11 | 01011-83610 | BOLT | 10001- | |
| 12 | 01643-33690 | WASHER | 10001- | |
| 13 | 707-58-17010 | ROD,PISTON | 10001- | |
| 14 | 427-70-11790 | BUSHING | 10001- | |
| 15 | 07000-15145 | O-RING | 10001- | |
| 16 | 707-35-91550 | RING,BACK-UP | 10001- | |
| 17 | 707-36-28210 | PISTON | 10001- | |
| 18 | 707-44-28180 | RING,PISTON | 10001- | |
| 19 | 707-39-28820 | RING,WEAR | 10001- | |
| 20 | 707-40-28020 | SPACER | 10001- | |
| 21 | 01010-31665 | BOLT | 10001- |
