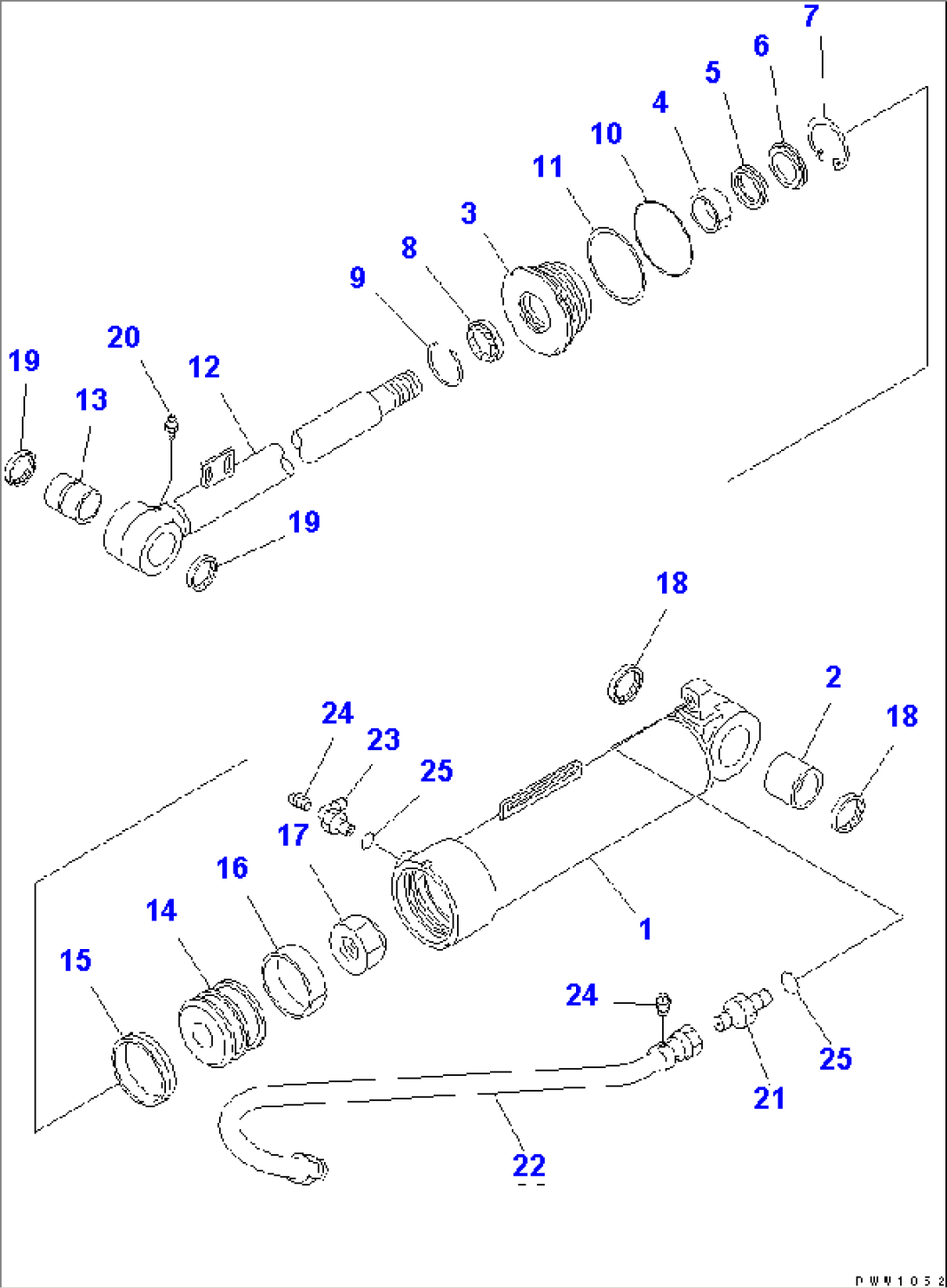

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-X7210) | CYLINDER GROUP,DUMP | 54001- | |
| ==================== | ||||
| 707-00-12300 | CYLINDER ASS'Y | 53001- | ||
| 1 | 707-11-12041 | CYLINDER | 53001- | |
| 2 | 707-76-60120 | BUSHING | 53001- | |
| 3 | 707-15-22320 | HEAD,CYLINDER | 53001- | |
| 4 | 07177-06030 | BUSHING | 53001- | |
| 5 | 707-51-60020 | PACKING,ROD (KIT) | 53001- | |
| 6 | 707-57-60010 | RETAINER | 53001- | |
| 7 | 04065-08025 | RING,SNAP | 53001- | |
| 8 | 141-63-93270 | SEAL,DUST (KIT) | 53001- | |
| 9 | 07179-00082 | RING,SNAP | 53001- | |
| 10 | 07000-12125 | O-RING (KIT) | 53001- | |
| 11 | 111-63-81230 | RING,BACK-UP (KIT) | 53001- | |
| 12 | 707-58-60440 | ROD,PISTON | 53001- | |
| 13 | 707-76-50371 | BUSHING | 53001- | |
| 14 | 707-36-12180 | PISTON | 53001- | |
| 15 | 707-44-12180 | RING,PISTON (KIT) | 53001- | |
| 16 | 07155-01230 | RING,WEAR (KIT) | 53001- | |
| 17 | 07165-14547 | NUT,NYLON | 53001- | |
| 18 | 416-09-11120 | SEAL,DUST | 54001- | |
| 19 | 416-09-11140 | SEAL,DUST | 54001- | |
| 20 | 07020-00000 | FITTING,GREASE | 54001- | |
| 21 | 07230-20628 | UNION | 54001- | |
| 22 | 417-62-13362 | TUBE | 54001- | |
| 23 | 07235-50628 | ELBOW | 54001- | |
| 24 | 07042-80108 | PLUG | 54001- | |
| 25 | 07002-12434 | O-RING | 54001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| KIT | 707-99-41100 | SERVICE KIT,DUMP CYLINDER | 53001- |
