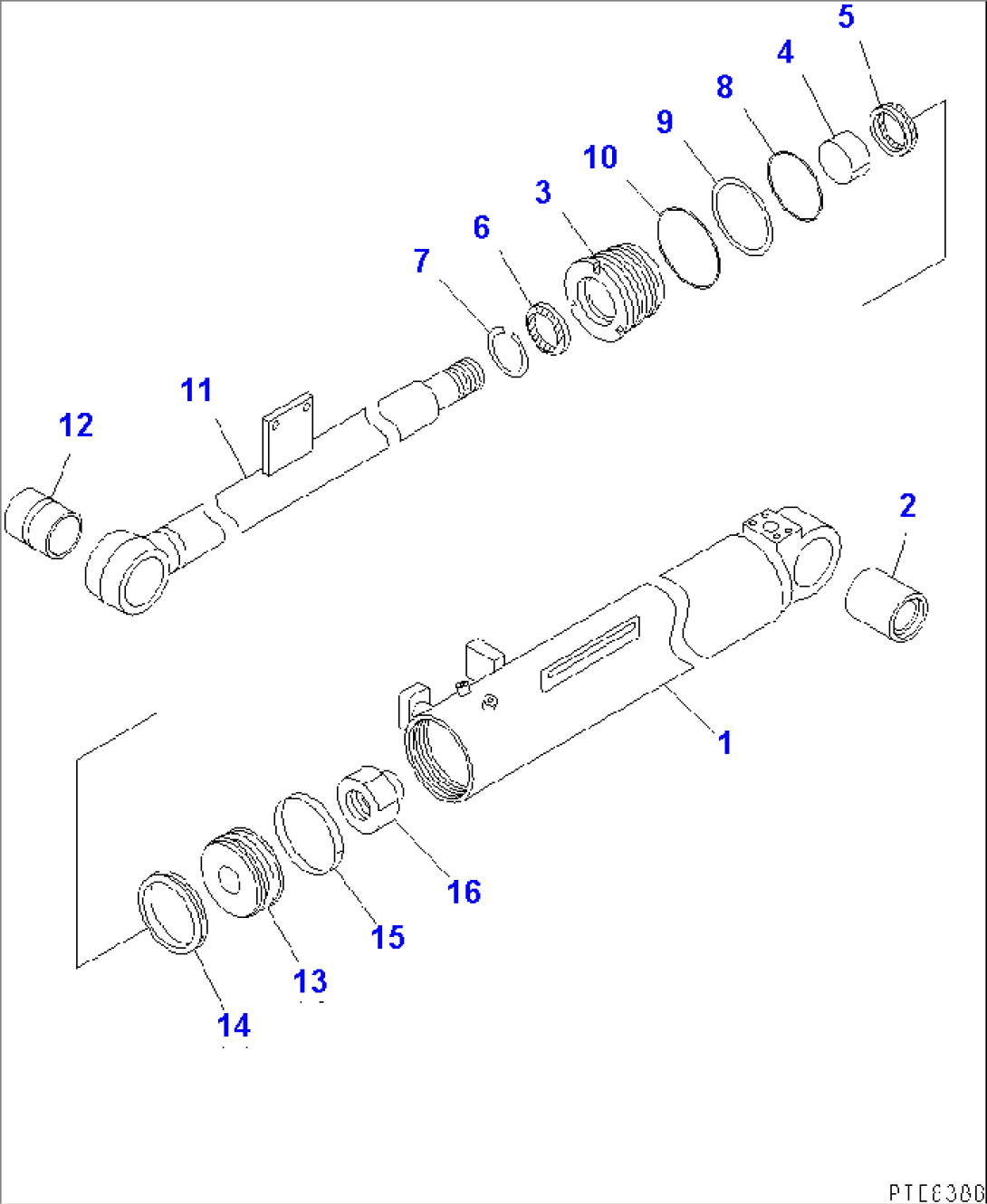

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-08781 | CYLINDER ASS'Y,DUMP | 63001-64000 | ||
| 707-00-02280 | CYLINDER ASS'Y | 63001-@ | ||
| 1 | 707-11-13071 | CYLINDER | 63001-@ | |
| 2 | 707-76-70080 | BUSHING | 63001-@ | |
| 3 | 707-29-13840 | HEAD,CYLINDER | 63001-@ | |
| 4 | 707-52-10700 | BUSHING | 63001-@ | |
| 5 | 707-51-70030 | PACKING,ROD (KIT) | 63001-@ | |
| 6 | 144-63-95170 | SEAL,DUST (KIT) | 63001-@ | |
| 7 | 07179-12084 | RING,SNAP | 63001-@ | |
| 8 | 07000-12125 | O-RING (KIT) | 63001-@ | |
| 9 | 07146-02126 | RING,BACK-UP (KIT) | 63001-@ | |
| 10 | 07000-12130 | O-RING (KIT) | 63001-@ | |
| 11 | 707-58-70450 | ROD,PISTON | 63001-@ | |
| 12 | 707-76-70080 | BUSHING | 63001-@ | |
| 13 | 707-36-13240 | PISTON | 63001-@ | |
| 14 | 707-44-13180 | RING,PISTON (KIT) | 63001-@ | |
| 15 | 07156-01315 | RING,WEAR (KIT) | 63001-@ | |
| 16 | 07165-15252 | NUT | 63001-@ | |
| SERVICE KIT | ||||
| KIT | 707-99-43520 | SERVICE KIT,DUMP CYLINDER | 63001-@ |
