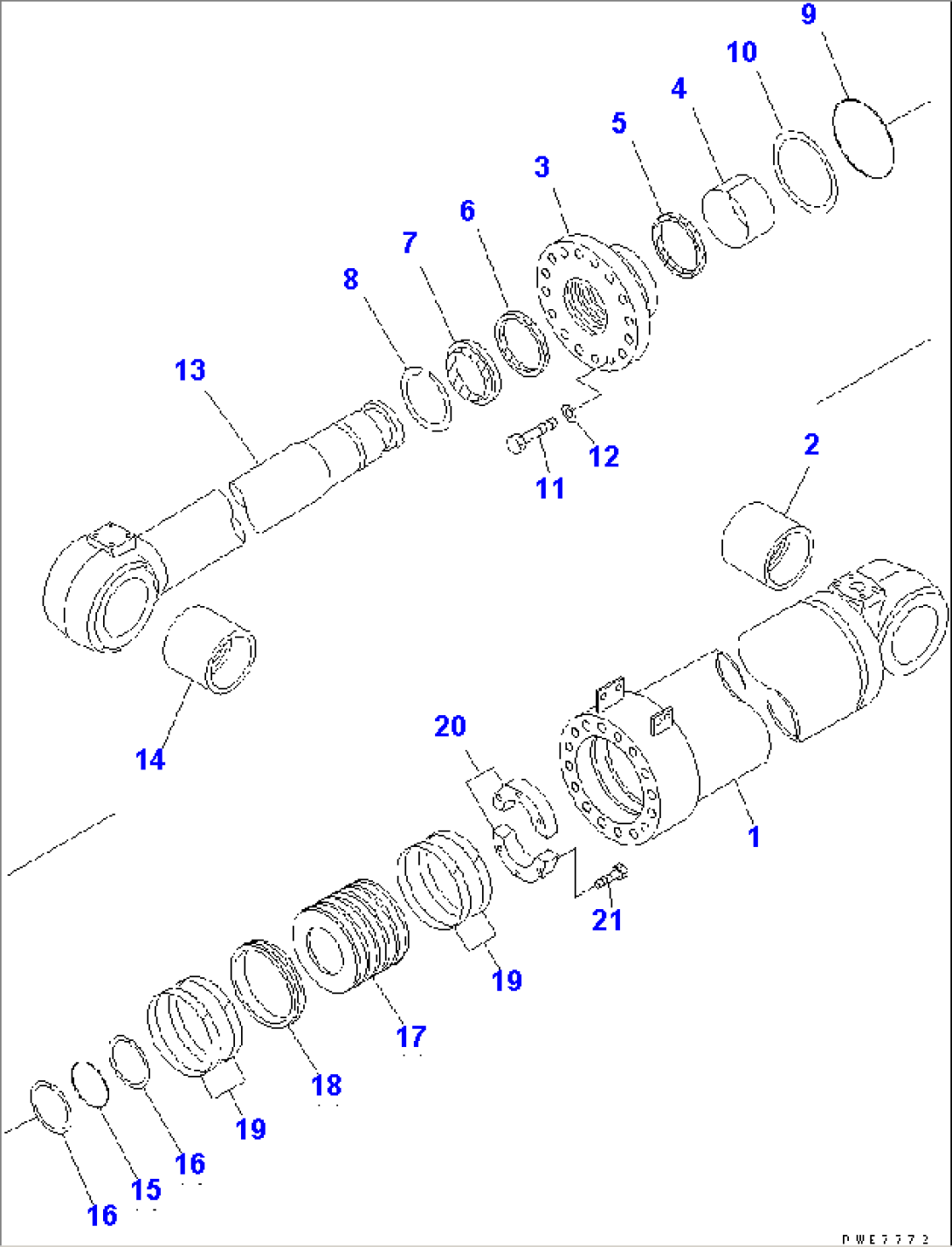

| Item | Part No. | Part Name | Qty | Serial No. |
| (\8\707-01-0M130) | CYLINDER ASS'Y,DUMP (FINAL COATING) | 60001- | ||
| 707-01-02492 | CYLINDER ASS'Y,DUMP | 60001- | ||
| 1 | 707-13-30081 | CYLINDER | 60001- | |
| 2 | 707-76-18040 | BUSHING | 60001- | |
| 3 | 707-27-30031 | HEAD,CYLINDER | 60001- | |
| 4 | 707-52-91550 | BUSHING | 60001- | |
| 5 | 707-51-18640 | RING,BUFFER (KIT) | 60001- | |
| 6 | 707-51-18130 | PACKING,ROD (KIT) | 60001- | |
| 7 | 707-56-18520 | SEAL,DUST (KIT) | 60001- | |
| 8 | 07179-15200 | RING,SNAP | 60001- | |
| 9 | 07000-15290 | O-RING (KIT) | 60001- | |
| 10 | 707-35-93020 | RING,BACK-UP (KIT) | 60001- | |
| 11 | 01011-83660 | BOLT | 60001- | |
| 12 | 01643-33690 | WASHER | 60001- | |
| 13 | 707-58-18023 | ROD,PISTON | 60001- | |
| 14 | 707-76-18040 | BUSHING | 60001- | |
| 15 | 07000-15150 | O-RING (KIT) | 60001- | |
| 16 | 707-35-52991 | RING,BACK-UP (KIT) | 60001- | |
| 17 | 707-36-30013 | PISTON | 60001- | |
| 18 | 707-44-30180 | RING,PISTON (KIT) | 60001- | |
| 19 | 707-39-30820 | RING,WEAR (KIT) | 60001- | |
| 20 | 707-40-30013 | SPACER | 60001- | |
| 21 | 01010-61670 | BOLT | 60001- | |
| SERVICE KIT | ||||
| K | 707-99-96200 | SERVICE KIT | 60001- |
