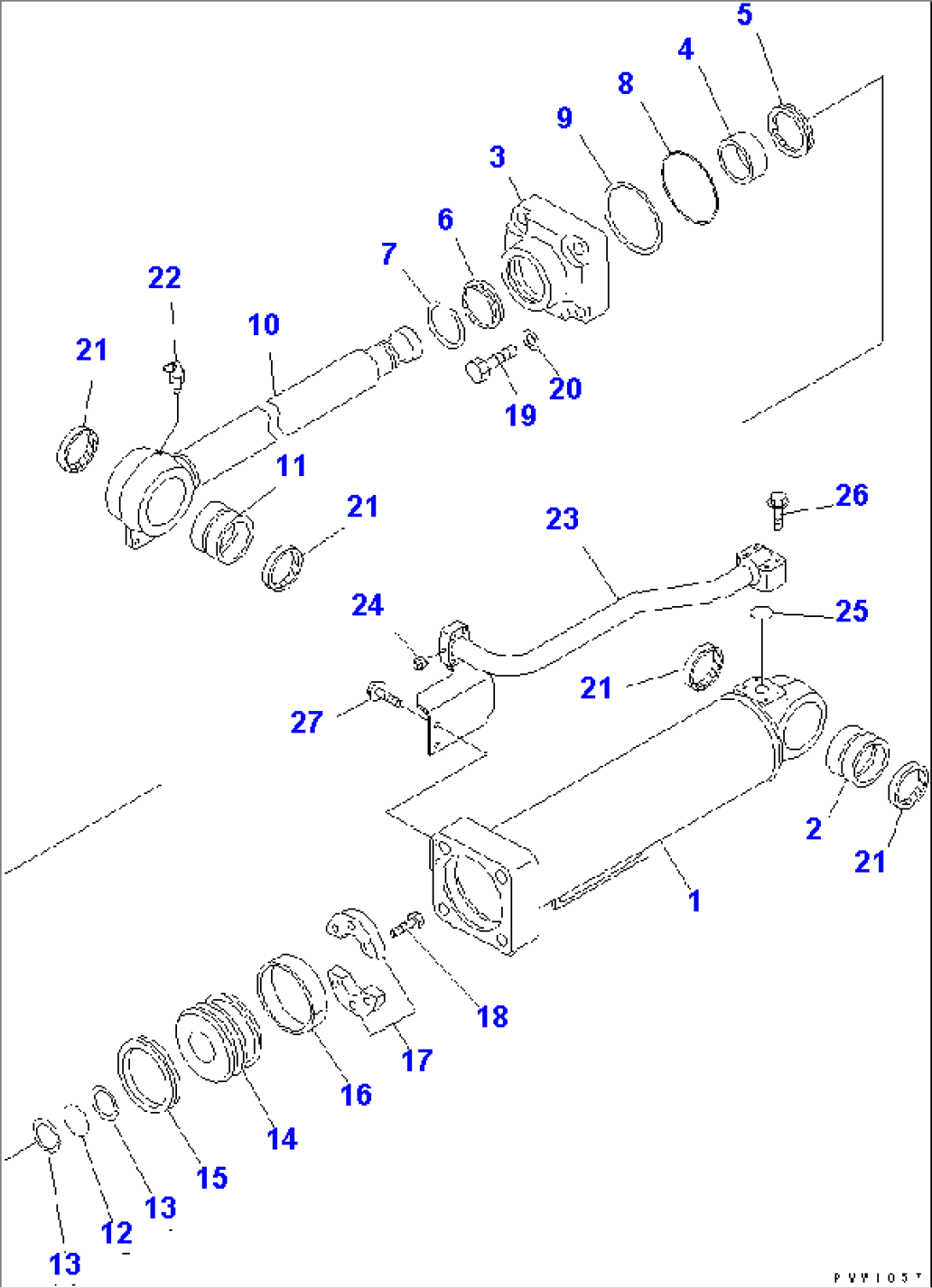

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-01-X7020) | CYLINDER GROUP,DUMP | 66001- | |
| ==================== | ||||
| 707-01-02231 | CYLINDER ASS'Y | 65001- | ||
| 1 | 707-13-15221 | CYLINDER | 65001- | |
| 2 | 707-76-70400 | BUSHING | 65001- | |
| 3 | 707-27-15290 | HEAD,CYLINDER | 65001- | |
| 4 | 07177-07530 | BUSHING | 65001- | |
| 5 | 707-51-75030 | PACKING,ROD (KIT) | 65001- | |
| 6 | 144-63-94170 | SEAL,DUST (KIT) | 65001- | |
| 7 | 07179-13089 | RING,SNAP | 65001- | |
| 8 | 07000-12145 | O-RING (KIT) | 65001- | |
| 9 | 07146-02146 | RING,BACK-UP (KIT) | 65001- | |
| 10 | 707-58-75150 | ROD,PISTON | 65001- | |
| 11 | 707-76-70400 | BUSHING | 65001- | |
| 12 | 07000-12060 | O-RING (KIT) | 65001- | |
| 13 | 707-35-52900 | RING,BACK-UP (KIT) | 65001- | |
| 14 | 707-36-15200 | PISTON | 65001- | |
| 15 | 707-44-15180 | RING,PISTON (KIT) | 65001- | |
| 16 | 07155-01535 | RING,WEAR (KIT) | 65001- | |
| 17 | 707-40-16170 | SPACER | 65001- | |
| 18 | 01010-61240 | BOLT | 65001- | |
| 19 | 01010-82785 | BOLT | 65001- | |
| 20 | 01643-32780 | WASHER | 65001- | |
| 21 | 418-09-11110 | SEAL,DUST | 66001- | |
| 22 | 07020-00675 | FITTING,GREASE | 66001- | |
| 23 | 418-870-2120 | TUBE | 66001- | |
| 24 | 07042-80108 | PLUG | 66001- | |
| 25 | 07000-13035 | O-RING | 66001- | |
| 26 | 01435-01055 | BOLT | 66001- | |
| 27 | 01435-01020 | BOLT | 66001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| KIT | 707-99-53500 | SERVICE KIT,DUMP CYLINDER | 65001- |
