| Item | Part No. | Part Name | Qty | Serial No. |

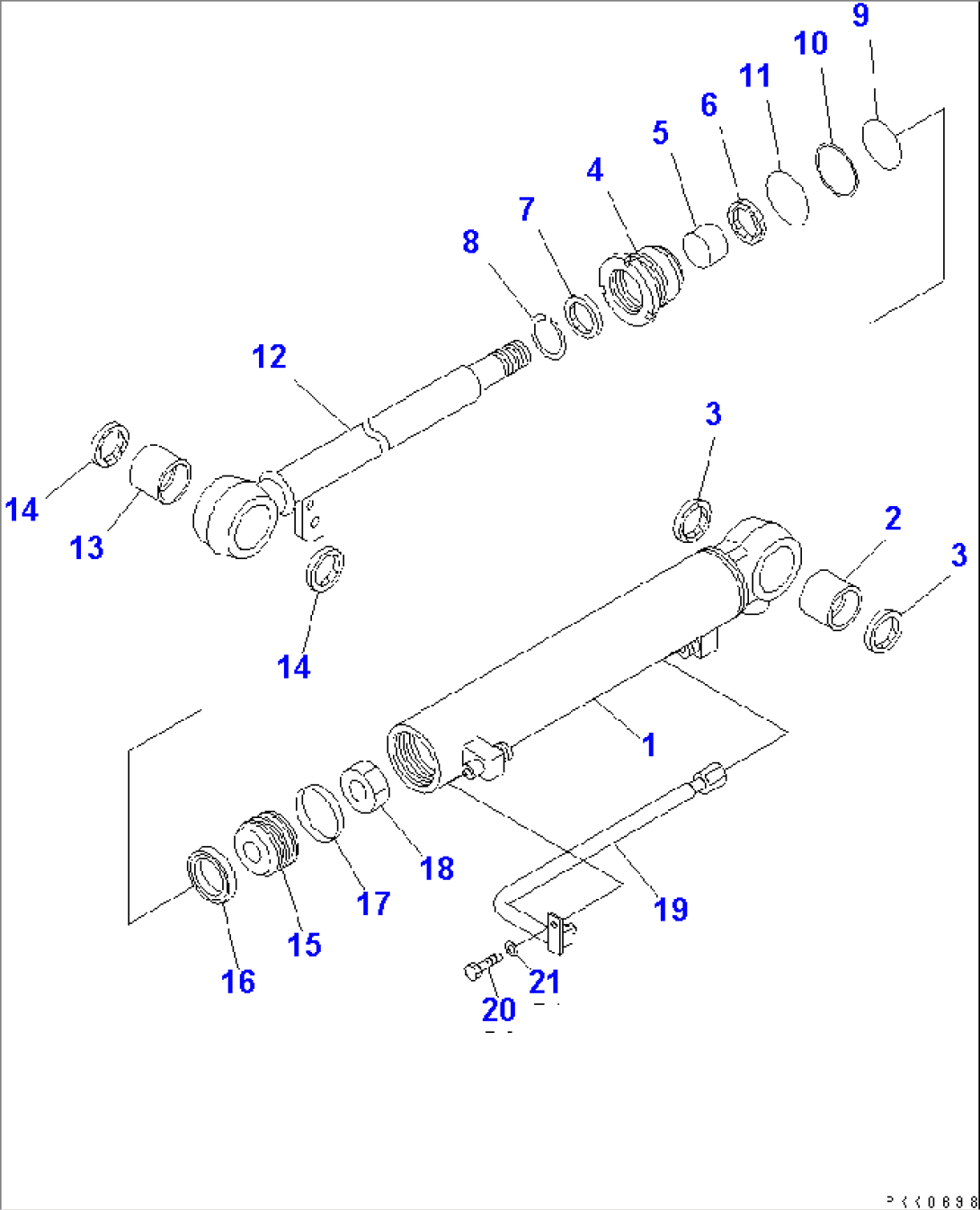

| G1 | (\8\361-63-X2171) | CYLINDER GROUP,DUMP | 12322- | |
| ==================== | ||||
| 361-63-02171 | CYLINDER ASS'Y | 12322- | ||
| 1 | 361-63-22440 | CYLINDER | 12322- | |
| 2 | 07143-10304 | BUSHING | 12322- | |
| 3 | 07145-00035 | SEAL,DUST (KIT) | 12322- | |
| 4 | 707-29-65840 | HEAD,CYLINDER | 12322- | |
| 5 | 07177-04025 | BUSHING | 12322- | |
| 6 | 707-51-40210 | PACKING,ROD (KIT) | 12322- | |
| 7 | 198-63-75190 | SEAL,DUST (KIT) | 12322- | |
| 8 | 07179-12052 | RING,SNAP | 12322- | |
| 9 | 07000-12060 | O-RING (KIT) | 12322- | |
| 10 | 707-35-52660 | RING,BACK-UP (KIT) | 12322- | |
| 11 | 07000-12065 | O-RING (KIT) | 12322- | |
| 12 | 361-63-22021 | ROD,PISTON | 12322- | |
| 13 | 07143-10304 | BUSHING | 12322- | |
| 14 | 07145-00035 | SEAL,DUST (KIT) | 12322- | |
| 15 | 707-36-65310 | PISTON | 12322- | |
| 16 | 707-44-65180 | RING,PISTON (KIT) | 12322- | |
| 17 | 707-39-65190 | RING,WEAR (KIT) | 12322- | |
| 18 | 01580-03024 | NUT | 12322- | |
| 19 | 361-63-22270 | TUBE | 12322- | |
| 20 | 01010-80820 | BOLT | 12322- | |
| 21 | 01643-30823 | WASHER | 12322- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-98-14830 | SERVICE KIT,DUMP CYLINDER | 12322- |
