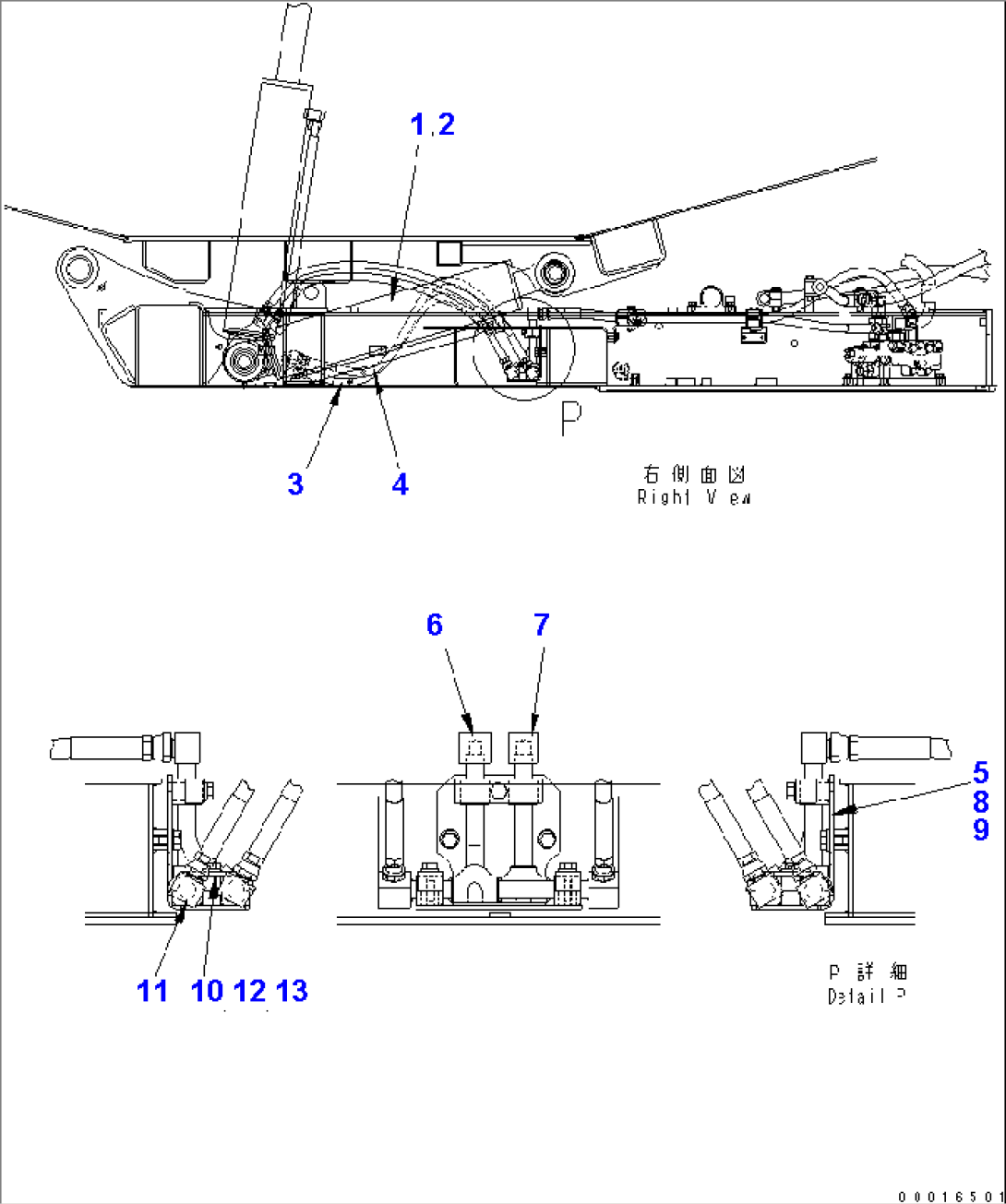

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (707-00-XZ471) | CYLINDER ASS'Y | 1501- | |
| 2 | (707-00-XZ481) | CYLINDER ASS'Y | 1501- | |
| 3 | 14S-62-21210 | HOSE¤ 820MM | 1501- | |
| 4 | 14S-62-21220 | HOSE¤ 930MM | 1501- | |
| 5 | 14S-62-21611 | BRACKET | 1501- | |
| 6 | 14S-62-21551 | TUBE | 1501- | |
| 7 | 14S-62-21541 | TUBE | 1501- | |
| 8 | 01010-81220 | BOLT | 1501- | |
| 9 | 01643-31232 | WASHER | 1501- | |
| 10 | 175-914-2140 | CLAMP | 1501- | |
| 11 | 203-62-58810 | CUSHION | 1501- | |
| 12 | 01010-81040 | BOLT | 1501- | |
| 13 | 01643-31032 | WASHER | 1501- |
