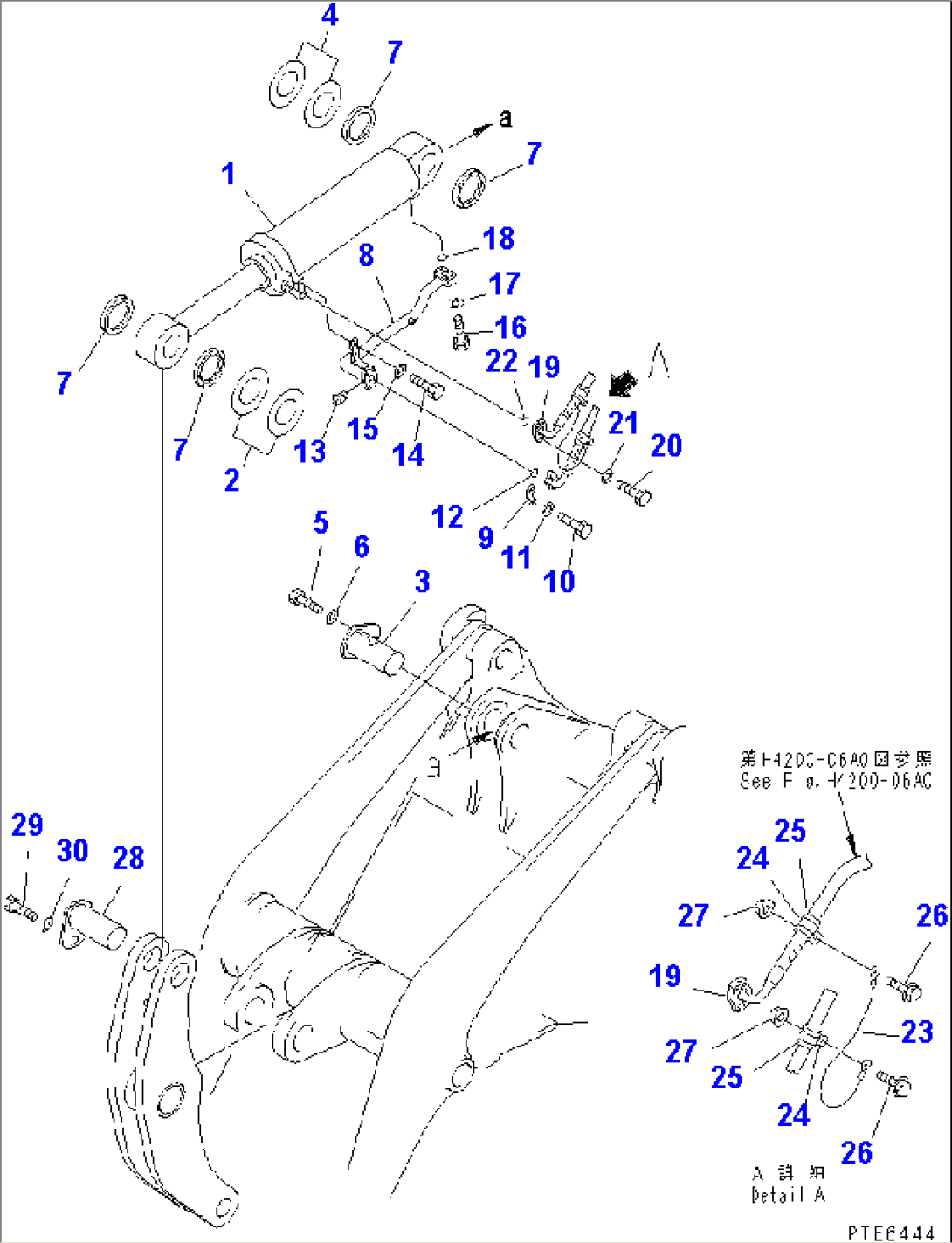

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (707-01-08641) | CYLINDER ASS'Y,DUMP | R50001- | |
| 1 | (707-01-02570) | CYLINDER ASS'Y,DUMP | R50001- | |
| 2 | 421-70-11470 | SHIM, 1.5MM | R50001- | |
| 3 | 424-70-11950 | PIN | R50001- | |
| 4 | 421-70-11470 | SHIM, 1.5MM | R50001- | |
| 4 | 421-70-11480 | SHIM, 3.0MM | R50001- | |
| 5 | 01010-81630 | BOLT | R50001- | |
| 6 | 421-70-11280 | WASHER | R50001- | |
| 7 | 421-09-11320 | SEAL,DUST | R50001- | |
| 8 | 424-62-14322 | TUBE | R50001- | |
| 9 | 07371-31255 | FLANGE,SPLIT | R50001- | |
| 10 | 07372-21035 | BOLT | R50001- | |
| 11 | 01643-51032 | WASHER | R50001- | |
| 12 | 07000-13038 | O-RING | R50001- | |
| 13 | 07042-20108 | PLUG | R50001- | |
| 14 | 01010-81020 | BOLT | R50001- | |
| 15 | 01643-31032 | WASHER | R50001- | |
| 16 | 01010-81060 | BOLT | R50001- | |
| 17 | 01643-51032 | WASHER | R50001- | |
| 18 | 07000-13035 | O-RING | R50001- | |
| 19 | 07371-31255 | FLANGE,SPLIT | R50001- | |
| 20 | 07372-21035 | BOLT | R50001- | |
| 21 | 01643-51032 | WASHER | R50001- | |
| 22 | 07000-13038 | O-RING | R50001- | |
| 23 | 419-62-13460 | WIRE | R50001- | |
| 24 | 21K-62-21660 | CLIP | R50001- | |
| 25 | 419-62-13470 | RUBBER | R50001- | |
| 26 | 01435-01230 | BOLT | R50001- | |
| 27 | 01584-01210 | NUT | R50001- | |
| 28 | 424-70-11940 | PIN | R50001- | |
| 29 | 01010-81630 | BOLT | R50001- | |
| 30 | 421-70-11280 | WASHER | R50001- |
