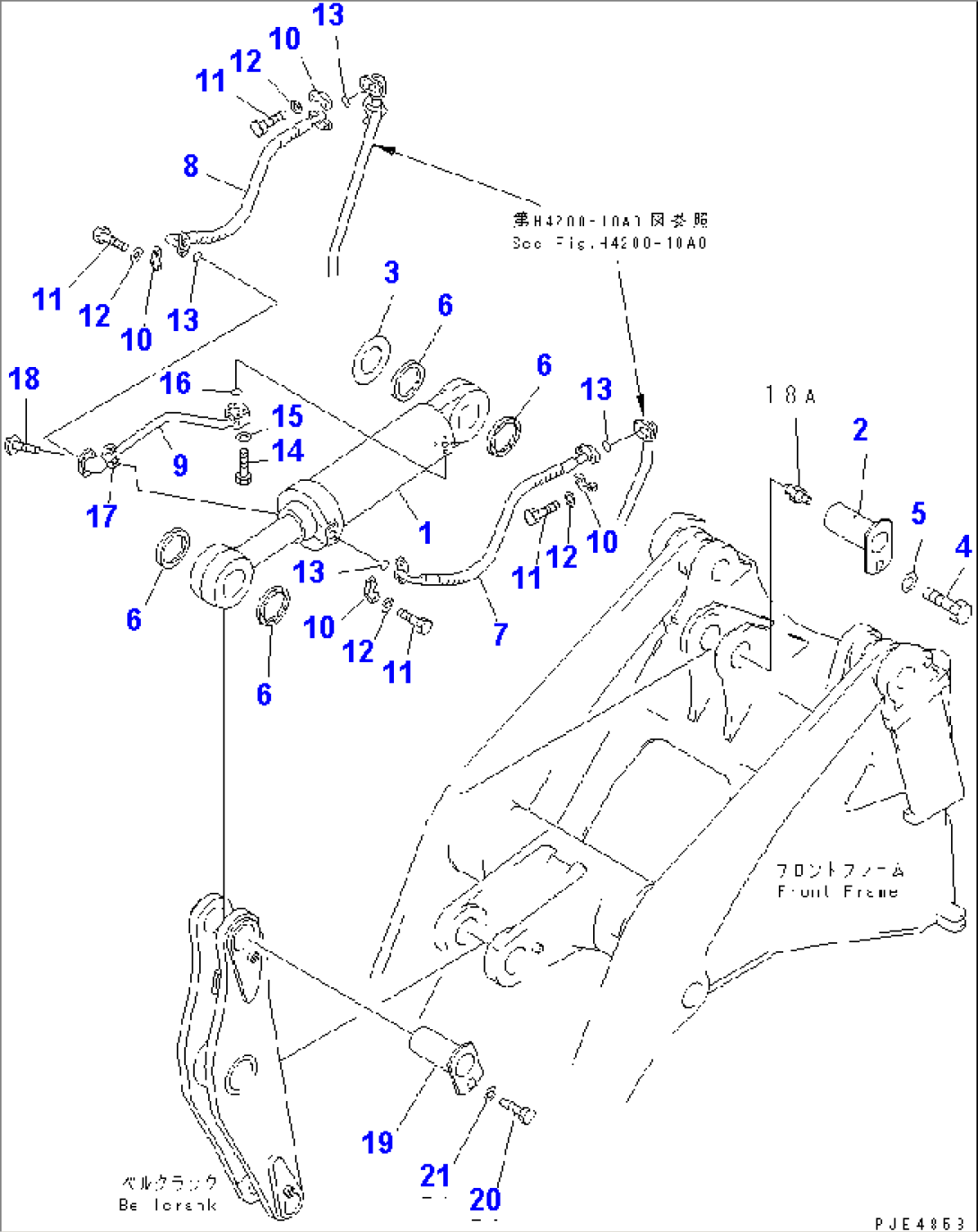

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (707-01-08692) | CYLINDER ASS'Y,DUMP | 53100-54100 | |
| 1 | (\0\707-01-08691) | CYLINDER ASS'Y,DUMP | 53001-53099 | |
| 1 | (707-01-02581) | CYLINDER ASS'Y,DUMP | 53100-54100 | |
| 1 | (\0\707-01-02580) | CYLINDER ASS'Y,DUMP | 53001-53099 | |
| 2 | 421-70-21960 | PIN | 53001-@ | |
| 3 | 421-70-11450 | SHIM, 1.5MM | 53001-@ | |
| 4 | 01010-81630 | BOLT | .-@ | |
| 4 | \1\01010-51630 | BOLT | 53001-. | |
| 5 | 421-70-11280 | WASHER | 53001-@ | |
| 6 | 421-09-11350 | SEAL,DUST | 53001-54100 | |
| 7 | 07124-01211 | HOSE | 53001-@ | |
| 8 | 07124-01211 | HOSE | 53001-@ | |
| 9 | 421-62-13153 | TUBE | 53001-54100 | |
| 10 | 07371-31255 | FLANGE,SPLIT | 53001-@ | |
| 11 | 07372-21035 | BOLT | 53001-@ | |
| 12 | 01643-51032 | WASHER | 53001-@ | |
| 13 | 07000-13038 | O-RING | 53001-@ | |
| 14 | 01010-81060 | BOLT | .-54100 | |
| 14 | \1\01010-51060 | BOLT | 53001-. | |
| 15 | 01643-51032 | WASHER | 53001-54100 | |
| 16 | 07000-13035 | O-RING | 53001-54100 | |
| 17 | 205-62-54460 | CLAMP | 53001-54100 | |
| 18 | 01435-01245 | BOLT | 53001-54100 | |
| 18A | 07020-00000 | FITTING,GREASE | 53001-@ | |
| 19 | 421-70-11940 | PIN | 53001-@ | |
| 20 | 01010-81630 | BOLT | .-@ | |
| 20 | \1\01010-51630 | BOLT | 53001-. | |
| 21 | 421-70-11280 | WASHER | 53001-@ |
