| Item | Part No. | Part Name | Qty | Serial No. |

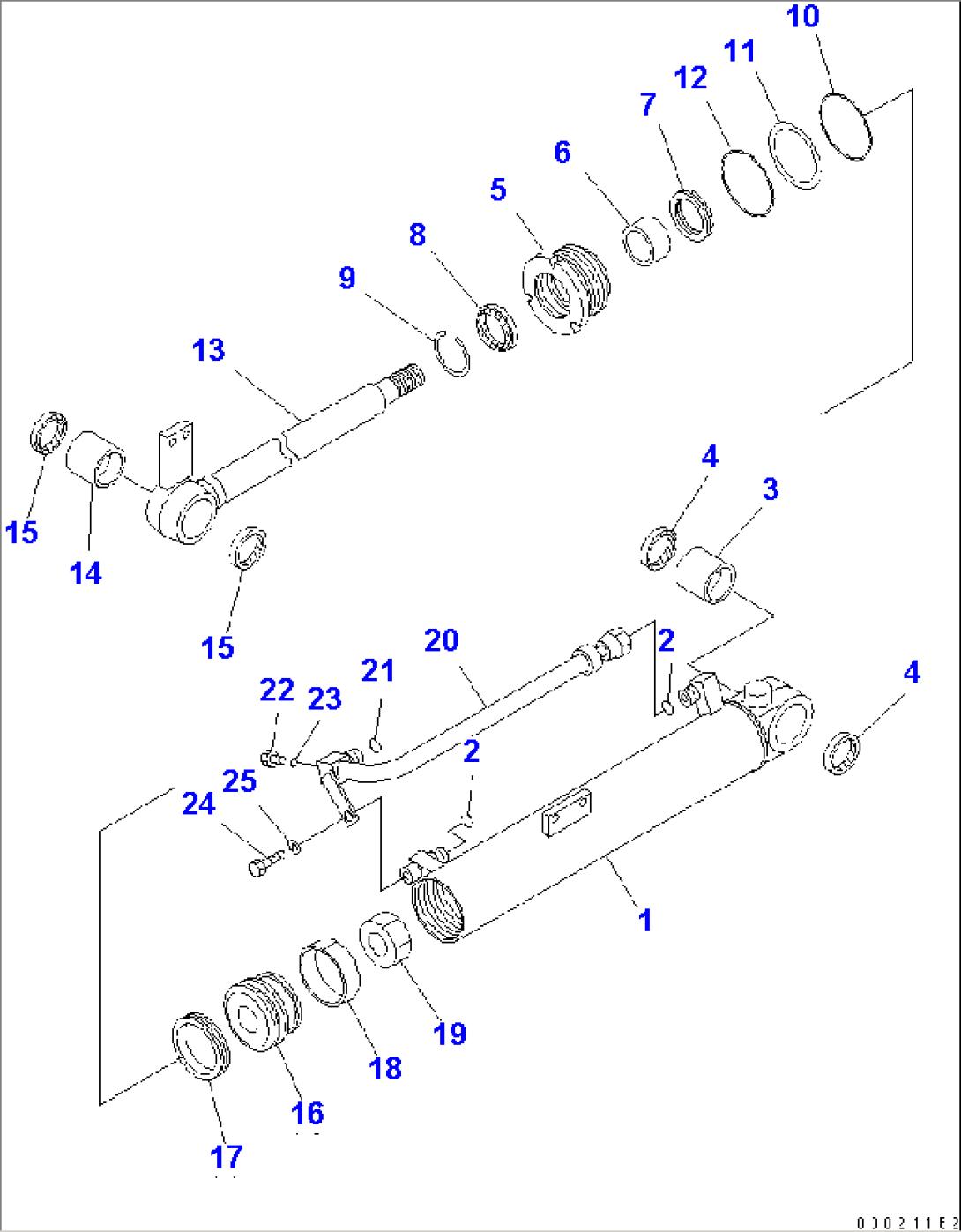

| G1 | (\8\707-00-X8522) | CYLINDER GROUP,(FINAL COATING) | 12001- | |
| ==================== | ||||
| 707-00-03202 | CYLINDER ASS'Y | 12001- | ||
| 1 | 721-11-80432 | CYLINDER | 12001- | |
| 2 | 02896-11012 | O-RING (KIT) | 12001- | |
| 3 | 707-76-45060 | BUSHING | 10001- | |
| 4 | 07145-00045 | SEAL,DUST (KIT) | 10001- | |
| 5 | 707-29-80720 | HEAD,CYLINDER | 10001- | |
| 6 | 07177-04025 | BUSHING | 10001- | |
| 7 | 707-51-40030 | PACKING,ROD (KIT) | 10001- | |
| 8 | 198-63-75190 | SEAL,DUST (KIT) | 10001- | |
| 9 | 07179-12052 | RING,SNAP | 10001- | |
| 10 | 07000-12075 | O-RING (KIT) | 10001- | |
| 11 | 07146-02076 | RING,BACK-UP (KIT) | 10001- | |
| 12 | 07000-12080 | O-RING (KIT) | 12001- | |
| 13 | 721-58-40330 | ROD,PISTON | 10001- | |
| 14 | 707-76-45060 | BUSHING | 10001- | |
| 15 | 07145-00045 | SEAL,DUST (KIT) | 10001- | |
| 16 | 707-36-80230 | PISTON | 10001- | |
| 17 | 707-44-80180 | RING,PISTON (KIT) | 10001- | |
| 18 | 07156-00810 | RING,WEAR (KIT) | 10001- | |
| 19 | 707-67-30030 | NUT | 12001- | |
| 20 | 707-86-44941 | TUBE | 12001- | |
| 21 | 02896-11012 | O-RING (KIT) | 12001- | |
| 22 | 07040-11007 | PLUG | 12001- | |
| 23 | 07002-11023 | O-RING | 12001- | |
| 24 | 01010-81020 | BOLT | 10001- | |
| 25 | 01643-31032 | WASHER | 10001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-98-22270 | SERVICE KIT | 12001- |
