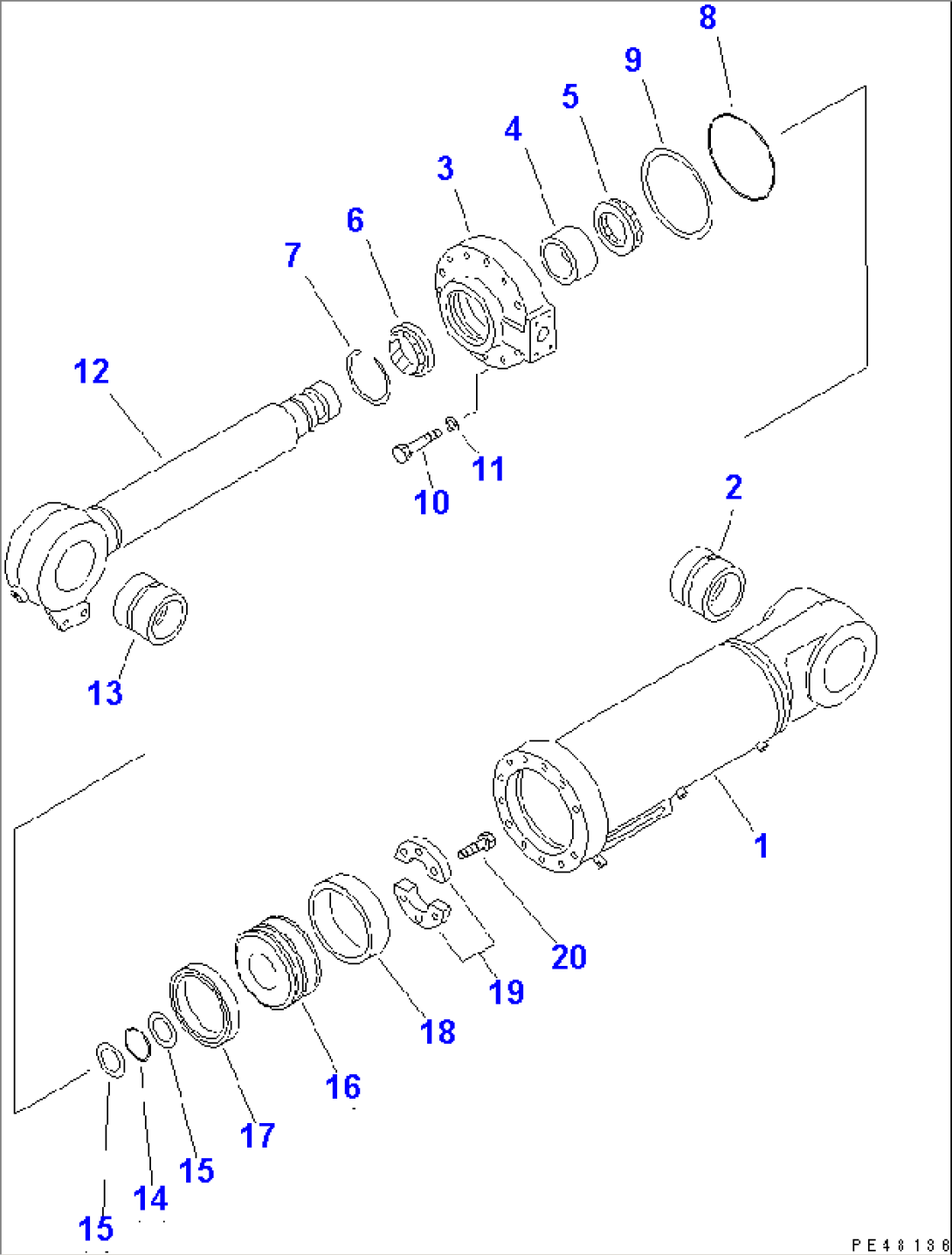

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-01-03251 | CYLINDER ASS'Y | 50001- | ||
| 1 | 707-13-20291 | CYLINDER | 50001- | |
| 2 | 707-76-12130 | BUSHING | 50001- | |
| 3 | 707-27-20250 | HEAD,CYLINDER | 50001- | |
| 4 | 707-52-11010 | BUSHING | 50001- | |
| 5 | 707-51-10030 | PACKING,ROD (KIT) | 50001- | |
| 6 | 176-63-56170 | SEAL,DUST (KIT) | 50001- | |
| 7 | 07179-13114 | RING,SNAP | 50001- | |
| 8 | 07000-15190 | O-RING (KIT) | 50001- | |
| 9 | 07146-05192 | RING,BACK-UP (KIT) | 50001- | |
| 10 | 01010-82075 | BOLT | 50001- | |
| 11 | 01643-32060 | WASHER | 50001- | |
| 12 | 707-58-10090 | ROD,PISTON | 50001- | |
| 13 | 707-76-12030 | BUSHING | 50001- | |
| 14 | 07000-12080 | O-RING (KIT) | 50001- | |
| 15 | 707-35-52920 | RING,BACK-UP (KIT) | 50001- | |
| 16 | 707-36-20400 | PISTON | 50001- | |
| 17 | 707-44-20180 | RING,PISTON (KIT) | 50001- | |
| 18 | 07156-02022 | RING,WEAR (KIT) | 50001- | |
| 19 | 707-40-20030 | SPACER | 50001- | |
| 20 | 01010-31245 | BOLT | 50001- | |
| 707-99-73020 | SERVICE KIT | 50001- |
