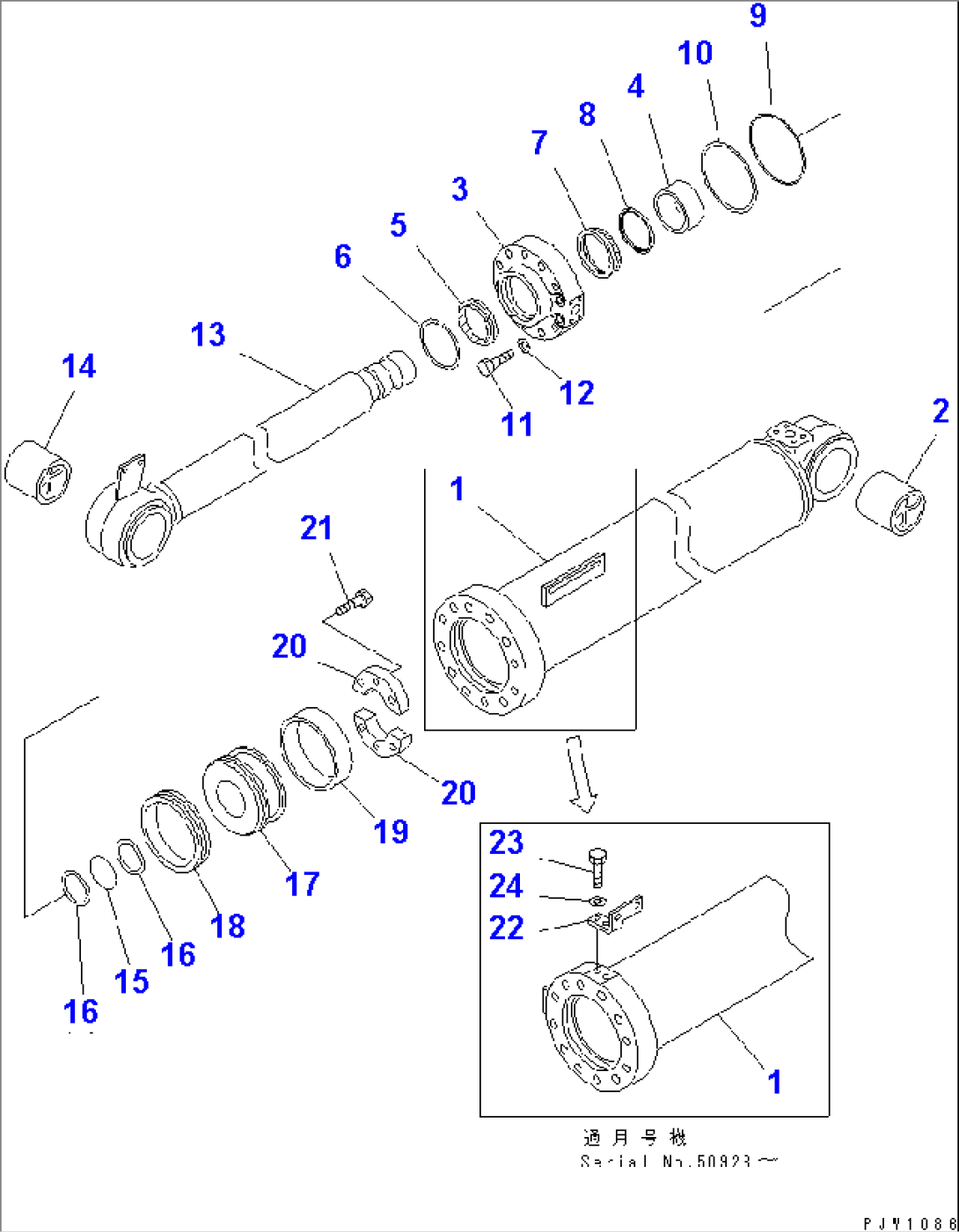

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-01-03243 | CYLINDER ASS'Y,DUMP | 50923-52000 | ||
| 707-01-03242 | CYLINDER ASS'Y,DUMP | 50050-50922 | ||
| 707-01-03241 | CYLINDER ASS'Y,DUMP | 50001-50049 | ||
| 1 | 707-13-22351 | CYLINDER | 50923-@ | |
| 707-13-22350 | CYLINDER | 50001-50922 | ||
| 2 | 707-76-12140 | BUSHING | 50001-@ | |
| 3 | 707-27-22040 | HEAD,CYLINDER | 50001-@ | |
| 4 | 707-52-90950 | BUSHING | 50001-@ | |
| 5 | 195-63-93170 | SEAL,DUST (KIT) | 50001-@ | |
| 6 | 07179-13136 | RING,SNAP | 50001-@ | |
| 7 | 707-51-12030 | PACKING,ROD (KIT) | 50001-@ | |
| 8 | 707-51-12640 | RING,BUFFER (KIT) | 50001-@ | |
| 9 | 07000-15220 | O-RING (KIT) | 50001-@ | |
| 10 | 07001-05220 | RING,BACK-UP (KIT) | 50001-@ | |
| 11 | 01010-82295 | BOLT | 50001-@ | |
| 12 | 01643-32260 | WASHER | 50001-@ | |
| 13 | 707-58-12351 | ROD,PISTON | 50050-@ | |
| 707-58-12350 | ROD,PISTON | 50001-50049 | ||
| 14 | 707-76-12140 | BUSHING | 50001-@ | |
| 15 | 07000-12100 | O-RING (KIT) | 50001-@ | |
| 16 | 707-35-52940 | RING,BACK-UP (KIT) | 50001-@ | |
| 17 | 707-36-22140 | PISTON | 50001-@ | |
| 18 | 707-44-22280 | RING,PISTON (KIT) | 50001-@ | |
| 19 | 07156-02225 | RING,WEAR (KIT) | 50001-@ | |
| 20 | 707-40-22171 | SPACER | 50001-@ | |
| 21 | 01010-61455 | BOLT | 50050-@ | |
| 01010-31455 | BOLT | 50001-50049 | ||
| 22 | 707-88-01820 | PLATE | 50923-@ | |
| 23 | 01010-81030 | BOLT | 50923-@ | |
| 24 | 01643-31032 | WASHER | 50923-@ | |
| SERVICE KIT | ||||
| K | 707-99-75450 | SERVICE KIT | 50001-52000 |
