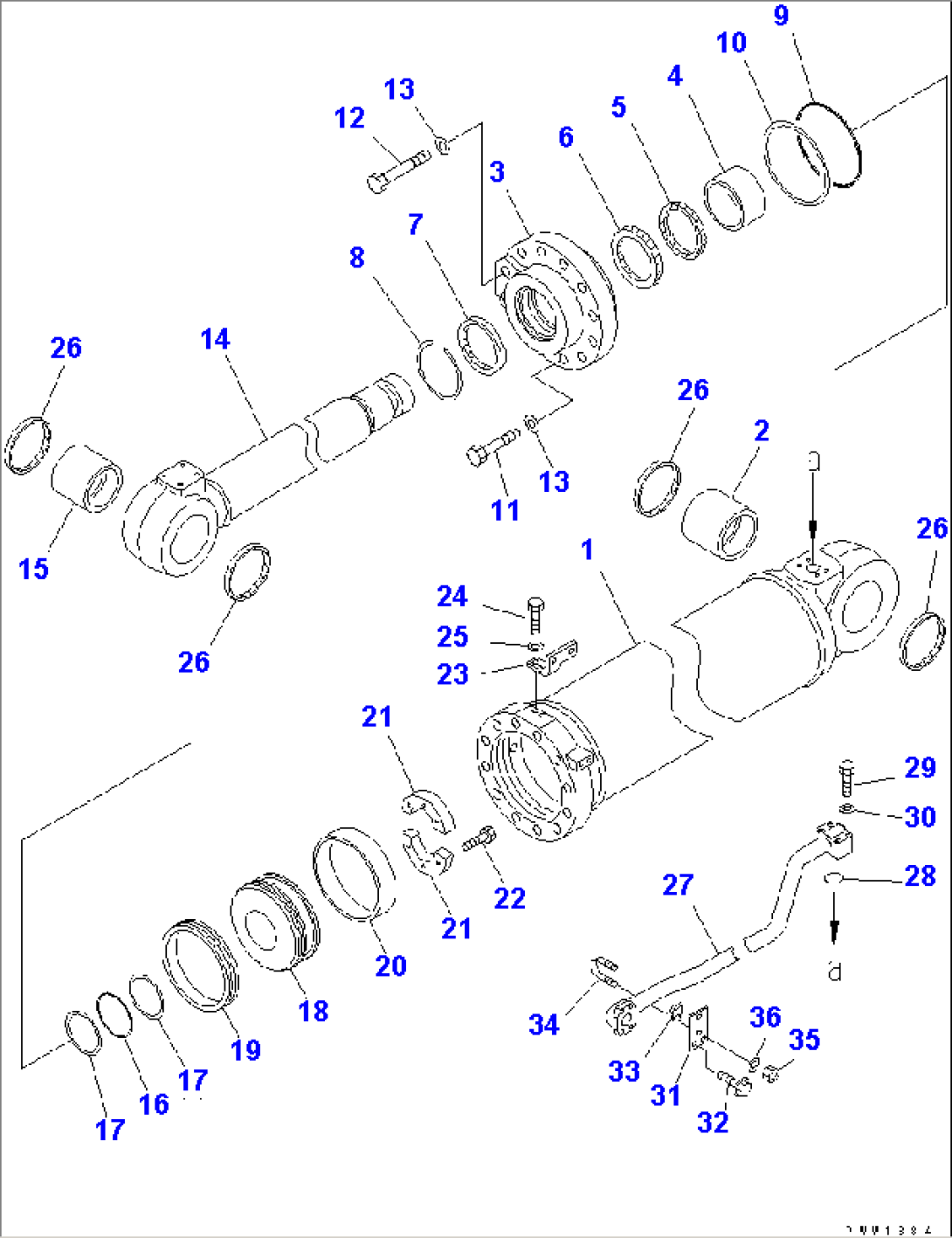

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-01-X7320) | CYLINDER GROUP | 50326- | |
| ==================== | ||||
| 707-01-03232 | CYLINDER ASS'Y | 50269- | ||
| 1 | 707-13-28082 | CYLINDER | 50269- | |
| 2 | 426-70-11890 | BUSHING | 50001- | |
| 3 | 707-27-28160 | HEAD,CYLINDER | 50001- | |
| 4 | 707-52-91151 | BUSHING | 50001- | |
| 5 | 707-51-14640 | RING,BUFFER (KIT) | 50001- | |
| 6 | 707-51-14080 | PACKING,ROD (KIT) | 50001- | |
| 7 | 707-56-14740 | SEAL,DUST (KIT) | 50001- | |
| 8 | 07179-14160 | RING,SNAP | 50001- | |
| 9 | 07000-15275 | O-RING (KIT) | 50001- | |
| 10 | 178-63-22460 | RING,BACK-UP (KIT) | 50001- | |
| 11 | 01011-82710 | BOLT | 50001- | |
| 12 | 01011-82730 | BOLT | 50001- | |
| 13 | 01643-32780 | WASHER | 50001- | |
| 14 | 707-58-14041 | ROD,PISTON | 50001- | |
| 15 | 426-70-11890 | BUSHING | 50001- | |
| 16 | 07000-12115 | O-RING (KIT) | 50001- | |
| 17 | 707-35-52860 | RING,BACK-UP (KIT) | 50001- | |
| 18 | 707-36-28020 | PISTON | 50001- | |
| 19 | 707-44-28180 | RING,PISTON (KIT) | 50001- | |
| 20 | 707-39-28820 | RING,WEAR (KIT) | 50001- | |
| 21 | 707-40-22271 | SPACER | 50001- | |
| 22 | 01010-61455 | BOLT | 50001- | |
| 23 | 707-88-01850 | PLATE | 50269- | |
| 24 | 01010-81030 | BOLT | 50269- | |
| 25 | 01643-31032 | WASHER | 50269- | |
| 26 | 425-09-11110 | SEAL,DUST (KIT) | 50326- | |
| 27 | 426-62-23591 | TUBE | 50326- | |
| 28 | 07000-13045 | O-RING (KIT) | 50326- | |
| 29 | 01010-81275 | BOLT | 50326- | |
| 30 | 01643-31232 | WASHER | 50326- | |
| 31 | 426-62-12541 | PLATE | 50326- | |
| 32 | 01435-01230 | BOLT | 50326- | |
| 33 | 07283-54353 | SEAT | 50326- | |
| 34 | 07283-34354 | CLIP | 50326- | |
| 35 | 01597-01009 | NUT | 50326- | |
| 36 | 01643-31032 | WASHER | 50326- | |
| ==================== | ||||
| SERVICE KIT | ||||
| K | 707-99-84470 | SERVICE KIT,DUMP CYLINDER | 50326- |
