| Item | Part No. | Part Name | Qty | Serial No. |

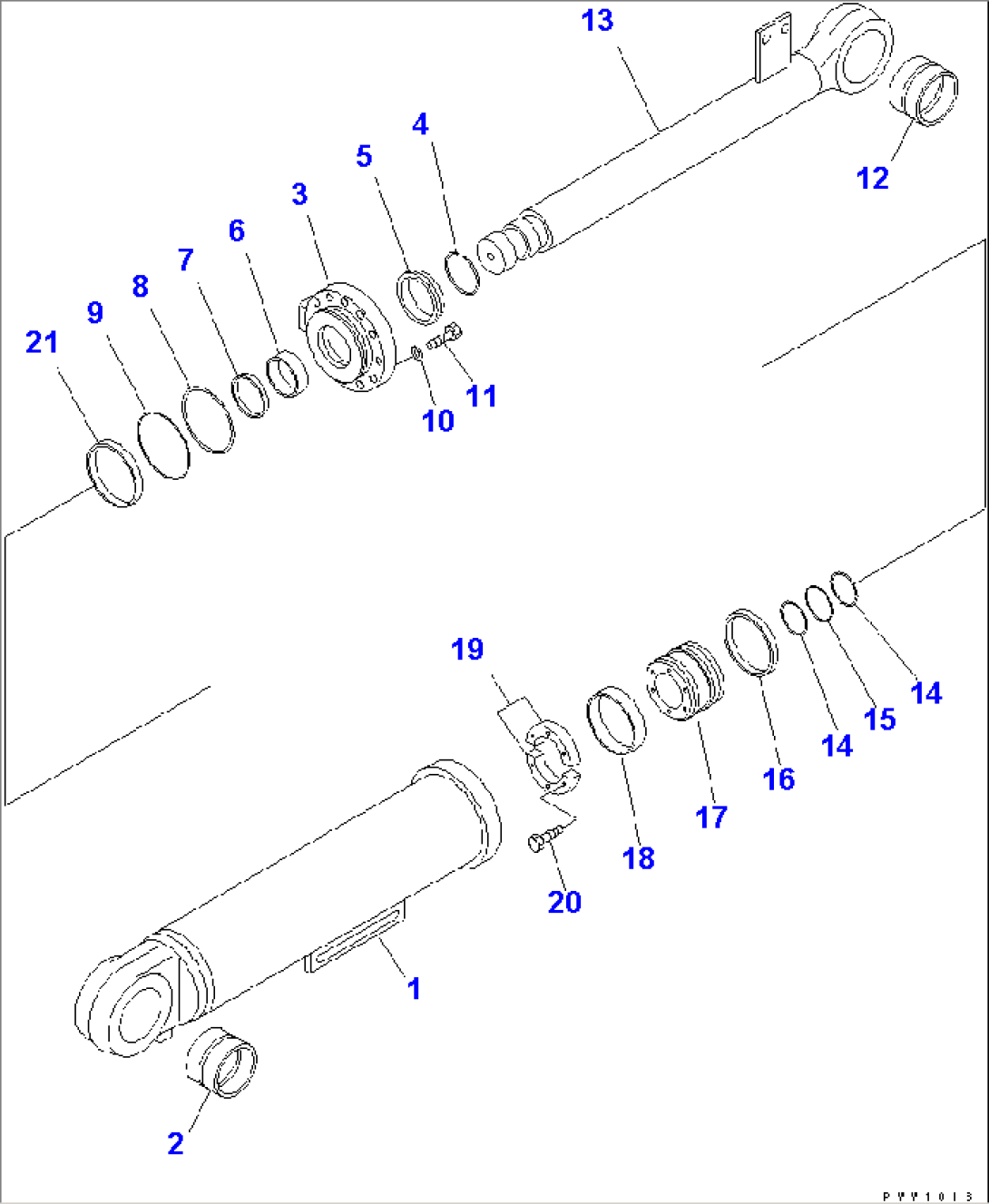

| 421-63-H3021 | CYLINDER ASS'Y,DUMP | 54101- | ||
| 1 | 421-63-H0P02 | CYLINDER | 54101- | |
| 2 | 707-76-12130 | BUSHING | 54101- | |
| 3 | 707-27-20810 | HEAD,CYLINDER | 54101- | |
| 4 | 07179-13114 | RING,SNAP | 54101- | |
| 5 | 176-63-56170 | SEAL (KIT) | 54101- | |
| 6 | 707-52-90780 | BUSHING | 54101- | |
| 7 | 707-51-10030 | PACKING (KIT) | 54101- | |
| 8 | 424-63-H0P08 | RING,BACK-UP (KIT) | 54101- | |
| 9 | 424-63-H0P07 | O-RING (KIT) | 54101- | |
| 10 | 01643-32060 | WASHER | 54101- | |
| 11 | 01010-82075 | BOLT | 54101- | |
| 12 | 707-76-12030 | BUSHING | 54101- | |
| 13 | 707-58-10530 | ROD,CYLINDER | 54101- | |
| 14 | 707-36-52920 | RING,BACK-UP (KIT) | 54101- | |
| 15 | 07000-12080 | O-RING (KIT) | 54101- | |
| 16 | 424-63-H0P10 | SEAL (KIT) | 54101- | |
| 17 | 707-01-H0P10 | PISTON | 54101- | |
| 18 | 07156-02022 | RING (KIT) | 54101- | |
| 19 | 707-40-20030 | SPACER | 54101- | |
| 20 | 01010-81245 | BOLT | 54101- | |
| 21 | 707-51-10640 | RING (KIT) | 54101- | |
| SERVICE KIT | ||||
| K | 707-99-H0P03 | SERVICE KIT,DUMP CYLINDER | 54101- |
