| Item | Part No. | Part Name | Qty | Serial No. |

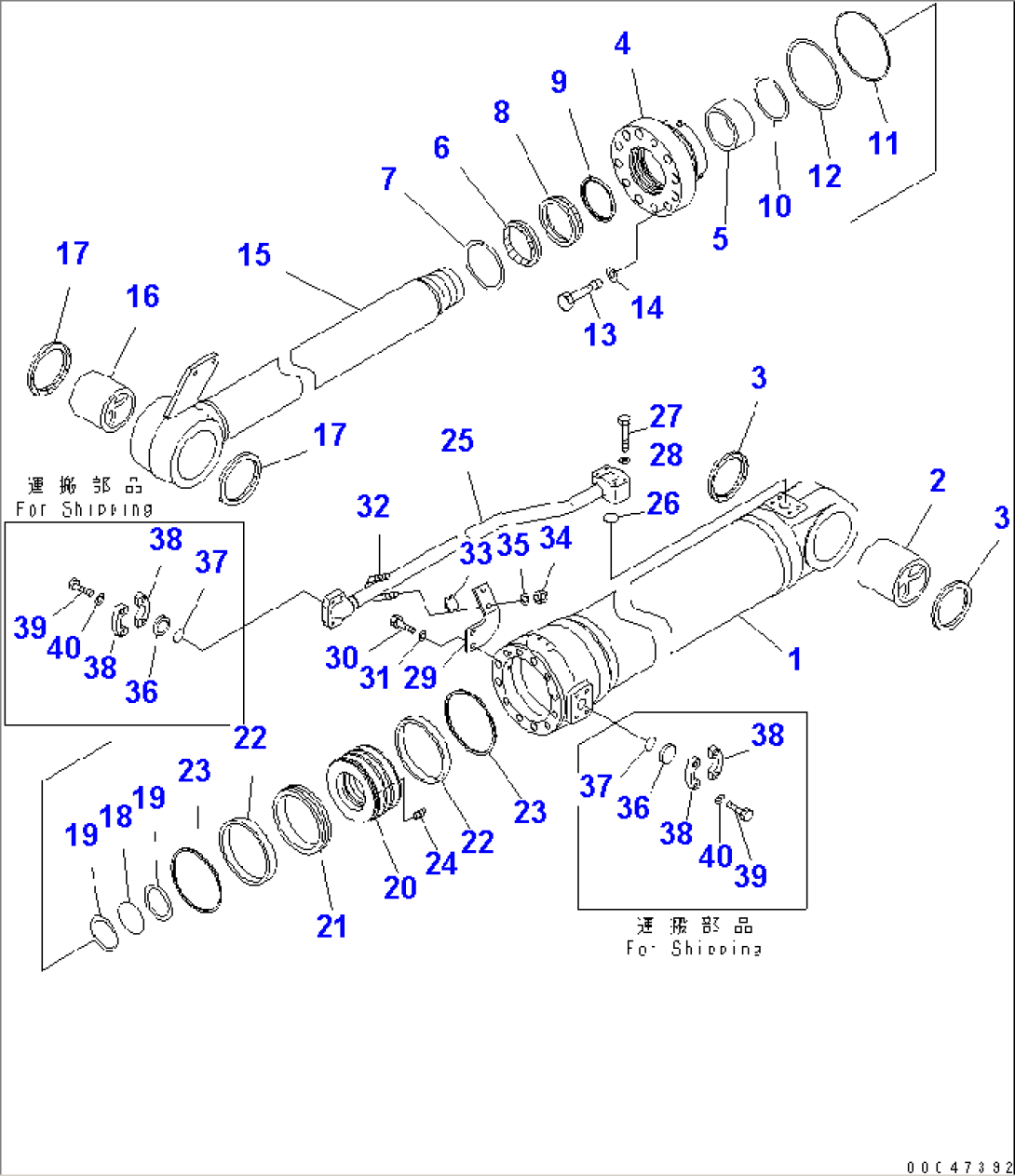

| G1 | (\8\707-01-XR680) | CYLINDER GROUP,DUMP | 55001- | |
| ==================== | ||||
| 707-01-0J730 | CYLINDER ASS'Y | 55001- | ||
| 1 | 707-13-18970 | CYLINDER | 55001- | |
| 2 | 425-70-31840 | BUSHING | 55001- | |
| 3 | 421-09-11330 | SEAL,DUST (KIT) | 55001- | |
| 4 | 707-27-18930 | HEAD,CYLINDER | 55001- | |
| 5 | 707-52-90980 | BUSHING | 55001- | |
| 6 | 195-63-93170 | SEAL,DUST (KIT) | 55001- | |
| 7 | 07179-13136 | RING,SNAP | 55001- | |
| 8 | 707-51-12030 | PACKING,ROD (KIT) | 55001- | |
| 9 | 707-51-12650 | RING,BUFFER (KIT) | 55001- | |
| 10 | 07179-13126 | RING,SNAP | 55001- | |
| 11 | 07000-15175 | O-RING (KIT) | 55001- | |
| 12 | 707-35-91840 | RING,BACK-UP (KIT) | 55001- | |
| 13 | 01011-82400 | BOLT | 55001- | |
| 14 | 707-88-75410 | WASHER | 55001- | |
| 15 | 707-58-12670 | ROD,PISTON | 55001- | |
| 16 | 425-70-31840 | BUSHING | 55001- | |
| 17 | 421-09-11330 | SEAL,DUST (KIT) | 55001- | |
| 18 | 07000-B5110 | O-RING (KIT) | 55001- | |
| 19 | 07001-05110 | RING,BACK-UP (KIT) | 55001- | |
| 20 | 707-36-18520 | PISTON | 55001- | |
| 21 | 707-44-18290 | RING,PISTON (KIT) | 55001- | |
| 22 | 707-39-18510 | RING,WEAR (KIT) | 55001- | |
| 23 | 707-44-18920 | RING | 55001- | |
| 24 | 01310-01225 | SCREW | 55001- | |
| 25 | 707-86-13350 | TUBE | 55001- | |
| 26 | 07000-B3035 | O-RING (KIT) | 55001- | |
| 27 | 01010-81280 | BOLT | 55001- | |
| 28 | 01643-31232 | WASHER | 55001- | |
| 29 | 707-88-05370 | PLATE | 55001- | |
| 30 | 01010-81025 | BOLT | 55001- | |
| 31 | 01643-31032 | WASHER | 55001- | |
| 32 | 07283-33450 | CLIP | 55001- | |
| 33 | 07283-53444 | SEAT | 55001- | |
| 34 | 01597-01009 | NUT | 55001- | |
| 35 | 01643-31032 | WASHER | 55001- | |
| 36 | 07378-11210 | HEAD | 55001- | |
| 37 | 07000-13038 | O-RING | 55001- | |
| 38 | 07371-51260 | FLANGE,SPLIT | 55001- | |
| 39 | 01010-81245 | BOLT | 55001- | |
| 40 | 01643-31232 | WASHER | 55001- | |
| SERVICE KIT | ||||
| K | 707-99-68430 | SERVICE KIT,DUMP CYLINDER | 55001- |
