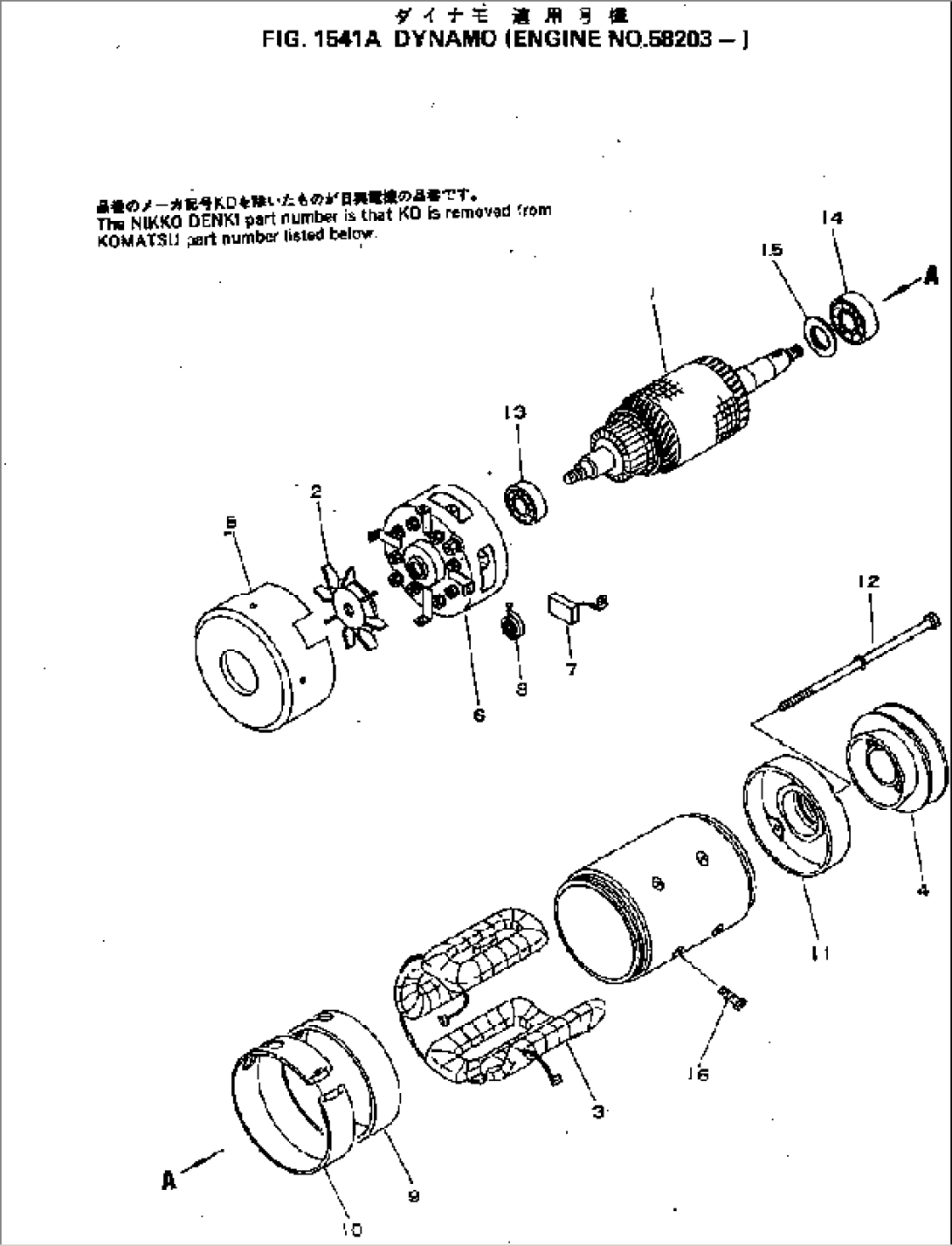

| Item | Part No. | Part Name | Qty | Serial No. |
| 6110-83-6310 | DYNAMO ASS'Y (13A) | 58203- | ||
| 1 | KD7-31100-0030 | ARMATURE ASS'Y | 58203- | |
| 2 | KD1-31421-0080 | FAN | 58203- | |
| 3 | KD1-31230-0400 | FIELD COIL ASS'Y | 58203- | |
| 4 | KD0-31400-0520 | PULLEY ASS'Y | 58203- | |
| 5 | KD1-31761-0570 | COVER | 58203- | |
| 6 | KD7-31700-0030 | REAR BRACKET ASS'Y | 58203- | |
| 7 | KD1-31740-0120 | BRUSH ASS'Y | 58203- | |
| 8 | KD1-31913-0120 | SPRING | 58203- | |
| 9 | KD1-31951-0410 | PACKING | 58203- | |
| 10 | KD1-31801-0200 | BAND | 58203- | |
| 11 | KD7-31300-0020 | FRONT BRACKET ASS'Y | 58203- | |
| 12 | KD0-0143-06002 | BOLT | 58203- | |
| 13 | KD1-0452-62037 | BEARING | 58203- | |
| 14 | KD1-0452-62057 | BEARING | 58203- | |
| 15 | KD1-21921-0090 | WASHER | 58203- | |
| 16 | KD1-0061-08182 | SCREW | 58203- | |
| 17 | KD7-09210-0080 | SEAL ASS'Y,(NOT SHOWN) | 58203- |
