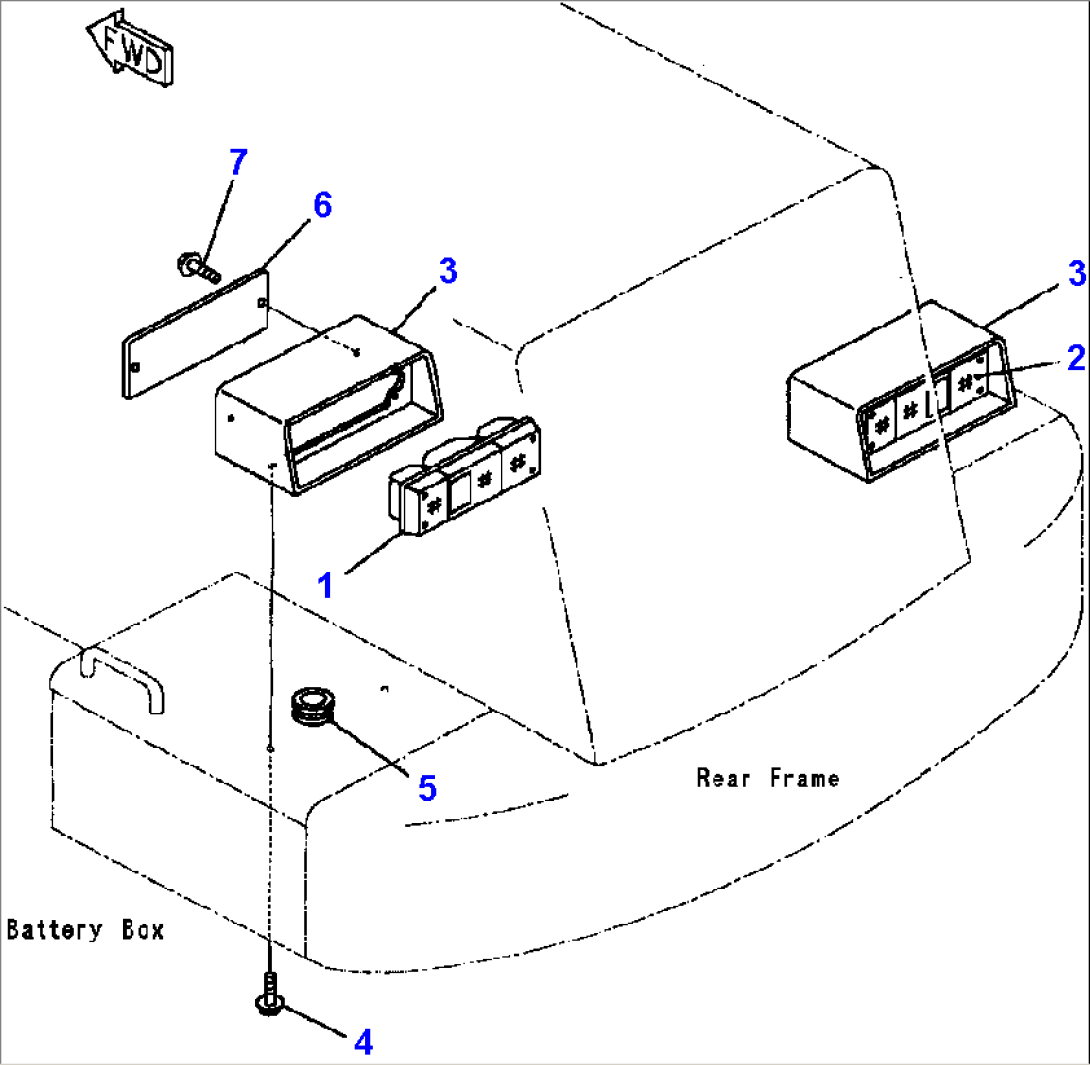

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-23310 | LIGHT ASSEMBLY, REAR COMBINATION, L.H. | A70001 -- | |
| 08104-12420 | BULB, 25/10W | A70001 -- | ||
| 08105-12420 | BULB, 25W | A70001 -- | ||
| 417-06-23330 | LENS, L.H. | A70001 -- | ||
| 01220-40535 | SCREW | A70001 -- | ||
| 42A-06-13160 | NUT | A70001 -- | ||
| 08056-00671 | CONNECTOR | A70001 -- | ||
| 2 | 417-06-23320 | LIGHT ASSEMBLY, REAR COMBINATION, R.H. | A70001 -- | |
| 08104-12420 | BULB, 25/10W | A70001 -- | ||
| 08105-12420 | BULB, 25W | A70001 -- | ||
| 417-06-23340 | LENS, R.H. | A70001 -- | ||
| 01220-40535 | SCREW | A70001 -- | ||
| 42A-06-13160 | NUT | A70001 -- | ||
| 08056-00671 | CONNECTOR | A70001 -- | ||
| 3 | 419-06-23410 | BRACKET | A70001 -- | |
| 4 | 01435-01016 | BOLT | A70001 -- | |
| 5 | 08037-03614 | GROMMET | A70001 -- | |
| 6 | 419-06-23420 | PLATE | A70001 -- | |
| 7 | 01435-01016 | BOLT | A70001 -- |
