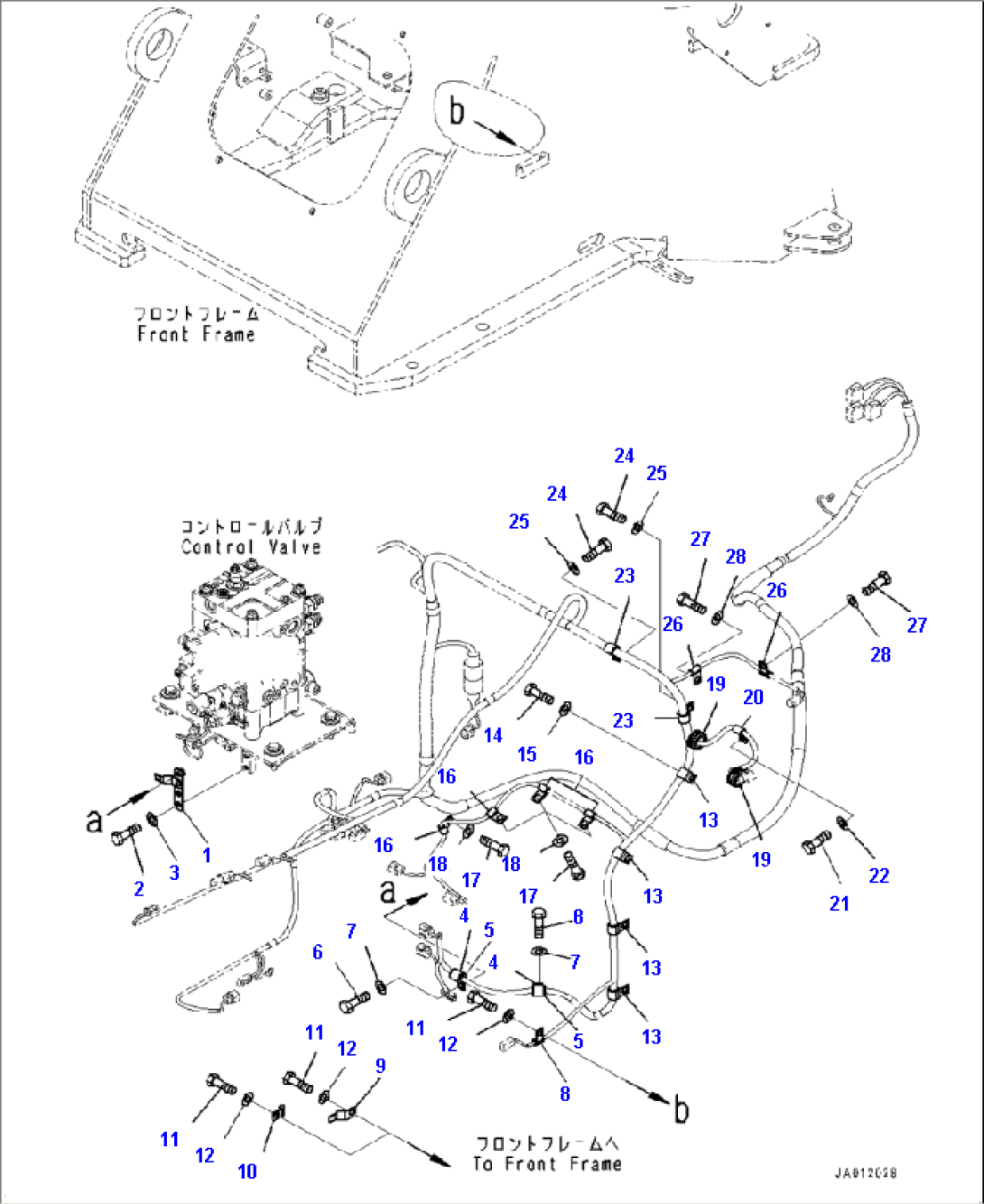

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-51920 | BRACKET | ||
| 2 | 01010-81020 | BOLT | ||
| 3 | 01643-31032 | WASHER | ||
| 4 | 04434-51712 | CLIP | ||
| 5 | 07095-20211 | CUSHION | ||
| 6 | 01010-81020 | BOLT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 04434-50812 | CLIP | ||
| 9 | 08193-20012 | CLIP | ||
| 10 | 04434-50610 | CLIP | ||
| 11 | 01010-81020 | BOLT | ||
| 12 | 01643-31032 | WASHER | ||
| 13 | 04434-51412 | CLIP | ||
| 14 | 01010-81020 | BOLT | ||
| 15 | 01643-31032 | WASHER | ||
| 16 | 04434-50812 | CLIP | ||
| 17 | 01010-81020 | BOLT | ||
| 18 | 01643-31032 | WASHER | ||
| 19 | 418-06-12430 | GROMMET | ||
| 20 | 04434-51012 | CLIP | ||
| 21 | 01010-81020 | BOLT | ||
| 22 | 01643-31032 | WASHER | ||
| 23 | 04434-51712 | CLIP | ||
| 24 | 01010-81020 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 04434-50812 | CLIP | ||
| 27 | 01010-81020 | BOLT | ||
| 28 | 01643-31032 | WASHER |
