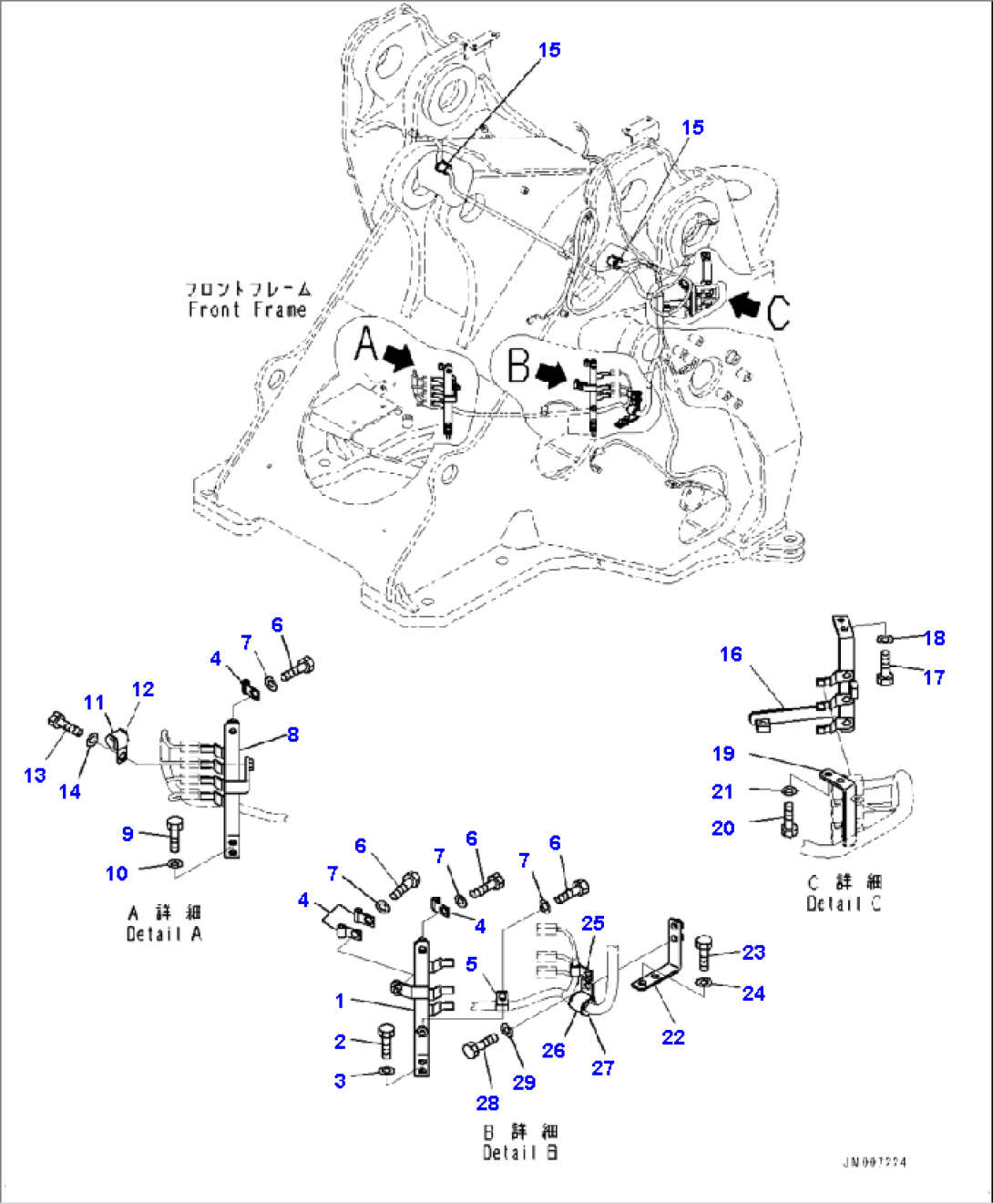

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-06-43430 | BRACKET | ||
| 2 | 01010-81035 | BOLT | ||
| 3 | 01643-31032 | WASHER | ||
| 4 | 04434-50612 | CLIP | ||
| 5 | 04434-51410 | CLIP | ||
| 6 | 01010-81025 | BOLT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 425-06-43290 | BRACKET | ||
| 9 | 01010-81035 | BOLT | ||
| 10 | 01643-31032 | WASHER | ||
| 11 | 04434-52112 | CLIP | ||
| 12 | 07095-20314 | CUSHION | ||
| 13 | 01010-81025 | BOLT | ||
| 14 | 01643-31032 | WASHER | ||
| 15 | 426-09-11210 | GROMMET | ||
| 16 | 425-06-42350 | BRACKET | ||
| 17 | 01010-81020 | BOLT | ||
| 18 | 01643-31032 | WASHER | ||
| 19 | 425-06-54551 | BRACKET | ||
| 20 | 01010-81020 | BOLT | ||
| 21 | 01643-31032 | WASHER | ||
| 22 | 425-06-44560 | BRACKET | ||
| 23 | 01010-81020 | BOLT | ||
| 24 | 01643-31032 | WASHER | ||
| 25 | 04434-51010 | CLIP | ||
| 26 | 04434-52512 | CLIP | ||
| 27 | 07095-20318 | CUSHION | ||
| 28 | 01010-81025 | BOLT | ||
| 29 | 01643-31032 | WASHER |
