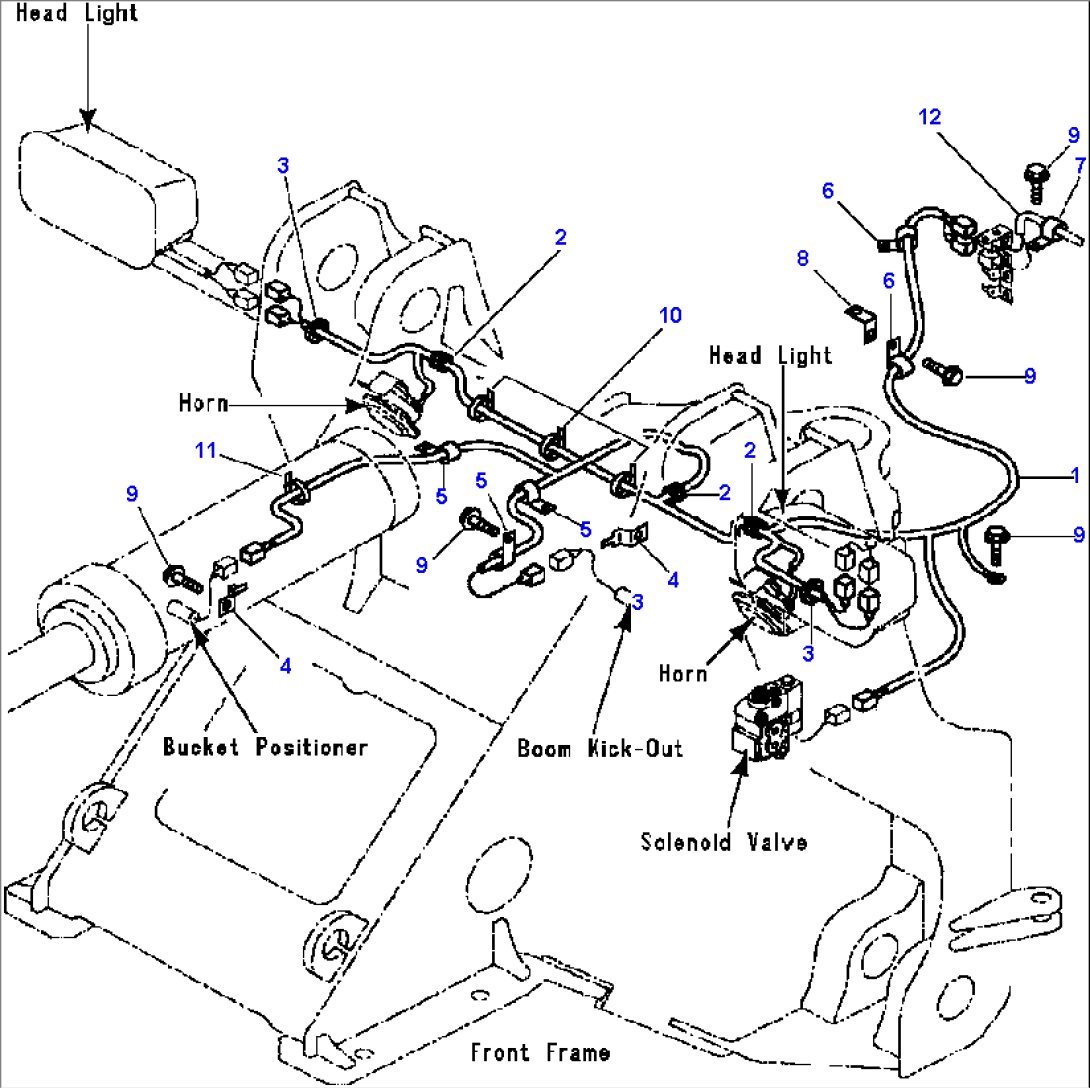

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-06-22360 | HARNESS, FRONT FRAME | A70001 -- | |
| 08020-10000 | DIODE | A70001 -- | ||
| 2 | 424-06-12910 | GROMMET | A70001 -- | |
| 3 | 08037-03614 | GROMMET | A70001 -- | |
| 4 | 08053-01510 | CLIP | A70001 -- | |
| 5 | 08036-01014 | CLIP | A70001 -- | |
| 6 | 08052-12411 | CLIP | A70001 -- | |
| 7 | 04434-51710 | CLIP | A70001 -- | |
| 8 | 42A-16-11210 | PLATE | A70001 -- | |
| 9 | 01435-01016 | BOLT | A70001 -- | |
| 10 | 08034-20834 | STRAP, TIE | A70001 -- | |
| 11 | 08034-20519 | STRAP, TIE | A70001 -- | |
| 12 | HARNESS (SEE FIG. E0202-01A0 ) | A70001 -- |
