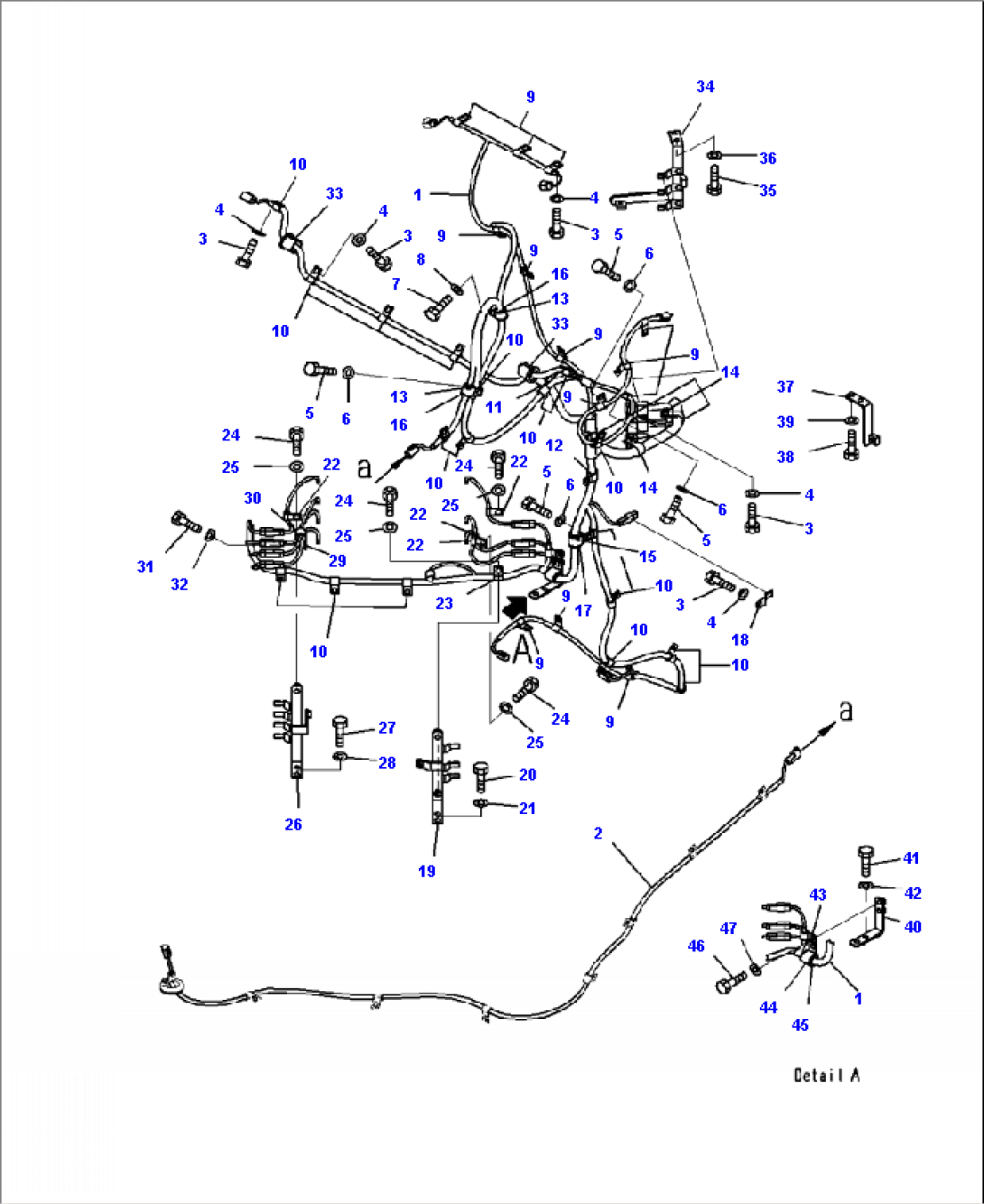

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-06-42212 | WIRING HARNESS | ||
| 2 | 425-06-42260 | WIRING HARNESS, STANARD BOOM | ||
| 2 | 425-06-43510 | WIRING HARNESS, HIGH LIFT BOOM | ||
| 3 | 01010-81016 | BOLT | ||
| 4 | 01643-31032 | WASHER | ||
| 5 | 01010-81020 | BOLT | ||
| 6 | 01643-31032 | WASHER | ||
| 7 | 01010-81025 | BOLT | ||
| 8 | 01643-31032 | WASHER | ||
| 9 | 04434-51010 | CLIP | ||
| 10 | 04434-51410 | CLIP | ||
| 11 | 04434-51710 | CLIP | ||
| 12 | 04434-51910 | CLIP | ||
| 13 | 04434-52110 | CLIP | ||
| 14 | 04434-52310 | CLIP | ||
| 15 | 04434-52512 | CLIP | ||
| 16 | 07095-20314 | CUSHION | ||
| 17 | 07095-20318 | CUSHION | ||
| 18 | 08193-20010 | CLIP | ||
| 19 | 425-06-43430 | BRACKET | ||
| 20 | 01010-81035 | BOLT | ||
| 21 | 01643-31032 | WASHER | ||
| 22 | 04434-50612 | CLIP | ||
| 23 | 04434-51410 | CLIP | ||
| 24 | 01010-81025 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 425-06-43290 | BRACKET | ||
| 27 | 01010-81035 | BOLT | ||
| 28 | 01643-31032 | WASHER | ||
| 29 | 04434-52112 | CLIP | ||
| 30 | 07095-20314 | CUSHION | ||
| 31 | 01010-81025 | BOLT | ||
| 32 | 01643-31032 | WASHER | ||
| 33 | 426-09-11210 | GROMMET | ||
| 34 | 425-06-42350 | BRACKET | ||
| 35 | 01010-81020 | BOLT | ||
| 36 | 01643-31032 | WASHER | ||
| 37 | 425-06-44550 | BRACKET | ||
| 38 | 01010-81020 | BOLT | ||
| 39 | 01643-31032 | WASHER | ||
| 40 | 425-06-44560 | BRACKET | ||
| 41 | 01010-81020 | BOLT | ||
| 42 | 01643-31032 | WASHER | ||
| 43 | 04434-51010 | CLIP | ||
| 44 | 04434-52512 | CLIP | ||
| 45 | 07095-20318 | CUSHION | ||
| 46 | 01010-81025 | BOLT | ||
| 47 | 01643-31032 | WASHER |
