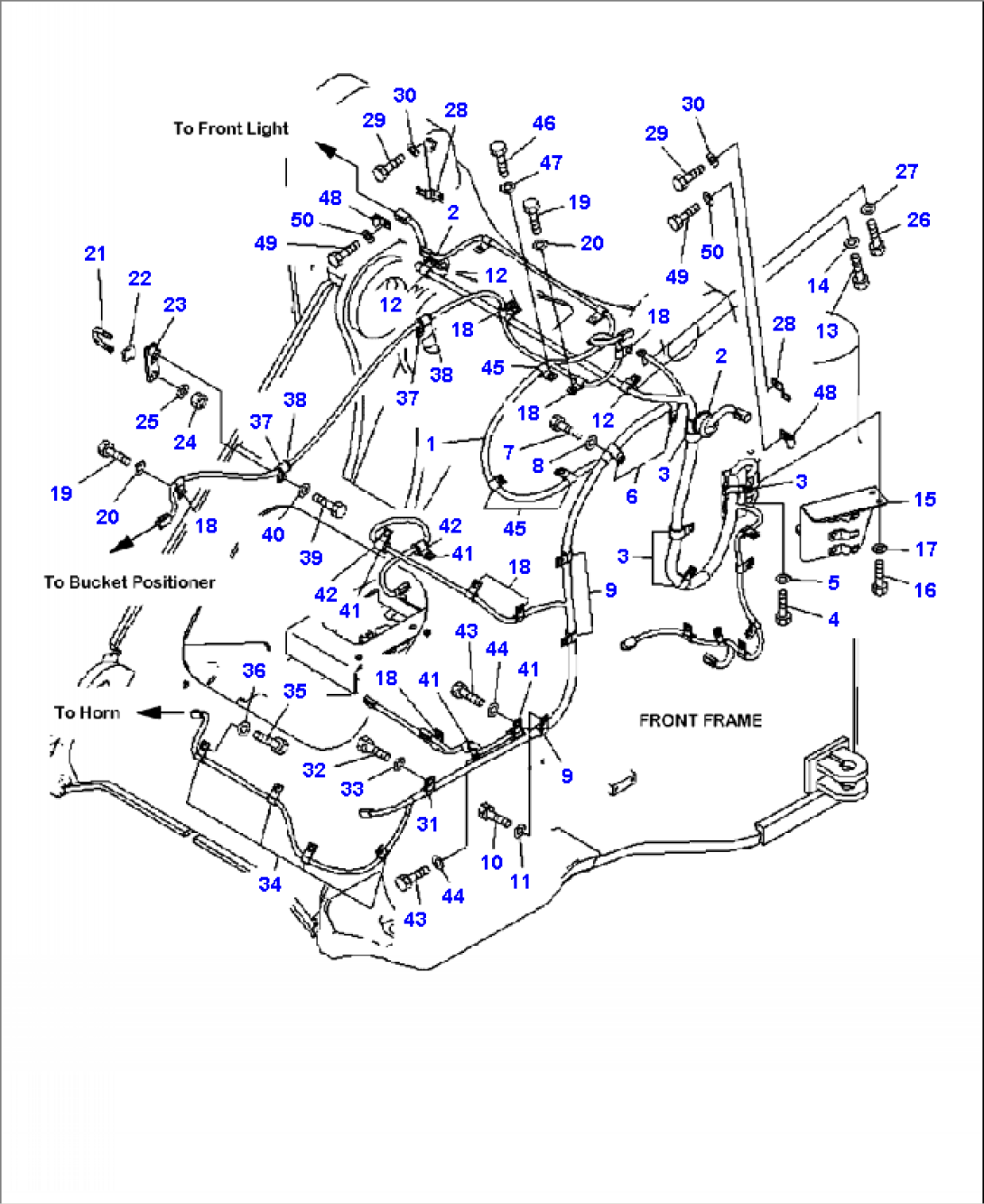

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-06-42112 | WIRING HARNESS | A41001-- | |
| 2 | 416-06-11310 | GROMMET | A41001-- | |
| 3 | 04434-52312 | CLIP | A41001-- | |
| 4 | 01010-81020 | BOLT | A41001-- | |
| 5 | 01643-31032 | WASHER | A41001-- | |
| 6 | 04434-51912 | CLIP | A41001-- | |
| 7 | 01010-81020 | BOLT | A41001-- | |
| 8 | 01643-31032 | WASHER | A41001-- | |
| 9 | 04434-51712 | CLIP | A41001-- | |
| 10 | 01010-81020 | BOLT | A41001-- | |
| 11 | 01643-31032 | WASHER | A41001-- | |
| 12 | 04434-51412 | CLIP | A41001-- | |
| 13 | 01010-81020 | BOLT | A41001-- | |
| 14 | 01643-31032 | WASHER | A41001-- | |
| N/I | 01010-D1020 | BOLT | A41001-- | |
| N/I | 01643-71032 | WASHER | A41001-- | |
| 15 | 423-944-4550 | BRACKET | A41001-- | |
| 16 | 01010-81020 | BOLT | A41001-- | |
| 17 | 01643-31032 | WASHER | A41001-- | |
| 18 | 04434-51012 | CLIP | A41001-- | |
| 19 | 01010-81020 | BOLT | A41001-- | |
| 20 | 01643-31032 | WASHER | A41001-- | |
| N/I | 01010-D1020 | BOLT | A41001-- | |
| N/I | 01643-71032 | WASHER | A41001-- | |
| 21 | 07283-32738 | CLIP | A41001-- | |
| 22 | 07283-52737 | SEAT | A41001-- | |
| 23 | 423-06-42140 | PLATE | A41001-- | |
| 24 | 01597-01009 | NUT | A41001-- | |
| 25 | 01643-31032 | WASHER | A41001-- | |
| 26 | 01010-81016 | BOLT | A41001-- | |
| 27 | 01643-31032 | WASHER | A41001-- | |
| 28 | 08193-20010 | CLIP | A41001-- | |
| 29 | 01010-D1020 | BOLT | A41001-- | |
| 30 | 01643-71032 | WASHER | A41001-- | |
| 31 | 04434-51412 | CLIP | A41001-- | |
| 32 | 01010-81020 | BOLT | A41001-- | |
| 33 | 01643-31032 | WASHER | A41001-- | |
| 34 | 04434-51012 | CLIP | A41001-- | |
| 35 | 01010-81020 | BOLT | A41001-- | |
| 36 | 01643-31032 | WASHER | A41001-- | |
| 37 | 04434-51612 | CLIP | A41001-- | |
| 38 | 07095-20211 | CUSHION | A41001-- | |
| 39 | 01010-81020 | BOLT | A41001-- | |
| 40 | 01643-31032 | WASHER | A41001-- | |
| 41 | 04434-51612 | CLIP | A41001-- | |
| 42 | 07095-20211 | CUSHION | A41001-- | |
| 43 | 01010-D1020 | BOLT | A41001-- | |
| 44 | 01643-71032 | WASHER | A41001-- | |
| N/I | 01010-D1020 | BOLT | A41001-- | |
| N/I | 01643-71032 | WASHER | A41001-- | |
| 45 | 04434-51412 | CLIP | A41001-- | |
| 46 | 01010-81020 | BOLT | A41001-- | |
| 47 | 01643-31032 | WASHER | A41001-- | |
| 48 | 04434-51012 | CLIP | A41001-- | |
| 49 | 01010-D1020 | BOLT | A41001-- | |
| 50 | 01643-71032 | WASHER | A41001-- |
