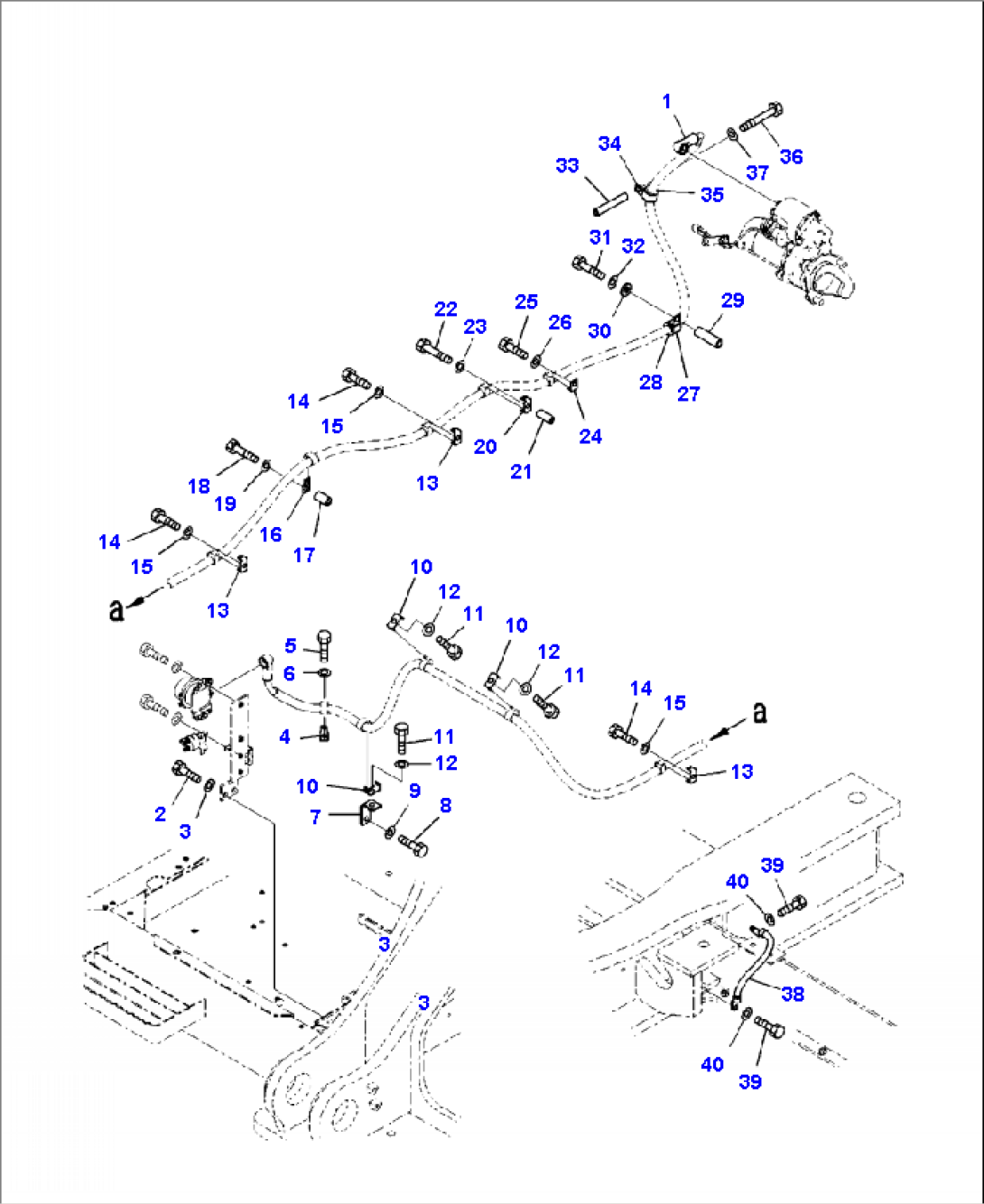

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08038-10035 | CAP | A88001-- | |
| 2 | 01010-81225 | BOLT | A88001-- | |
| 3 | 01643-31232 | WASHER | A88001-- | |
| 4 | 08057-22012 | CLIP | A88001-- | |
| 5 | 01010-81225 | BOLT | A88001-- | |
| 6 | 01643-31232 | WASHER | A88001-- | |
| 7 | 207-979-6180 | BRACKET | A88001-- | |
| 8 | 01010-81225 | BOLT | A88001-- | |
| 9 | 01643-31232 | WASHER | A88001-- | |
| 10 | 08057-22012 | CLIP | A88001-- | |
| 11 | 01010-81225 | BOLT | A88001-- | |
| 12 | 01643-31232 | WASHER | A88001-- | |
| 13 | 08057-22012 | CLIP | A88001-- | |
| 14 | 01010-81225 | BOLT | A88001-- | |
| 15 | 01643-31232 | WASHER | A88001-- | |
| 16 | 08057-00812 | PLATE | A88001-- | |
| 17 | 208-06-75180 | SPACER | A88001-- | |
| 18 | 01010-81265 | BOLT | A88001-- | |
| 19 | 01643-31232 | WASHER | A88001-- | |
| 20 | 08057-22012 | CLIP | A88001-- | |
| 21 | 14X-54-26640 | COLLAR | A88001-- | |
| 22 | 01010-81275 | BOLT | A88001-- | |
| 23 | 01643-31232 | WASHER | A88001-- | |
| 24 | 08057-12012 | CLIP | A88001-- | |
| 25 | 01010-81225 | BOLT | A88001-- | |
| 26 | 01643-31232 | WASHER | A88001-- | |
| 27 | 04434-53212 | CLIP | A88001-- | |
| 28 | 07095-20523 | CUSHION | A88001-- | |
| 29 | 195-979-3570 | COLLAR | A88001-- | |
| 30 | 22D-62-12120 | SPACER | A88001-- | |
| 31 | 01011-81200 | BOLT | A88001-- | |
| 32 | 01643-31232 | WASHER | A88001-- | |
| 33 | 6151-51-5490 | SPACER | A88001-- | |
| 34 | 04434-53211 | CLIP | A88001-- | |
| 35 | 198-06-53610 | CUSHION | A88001-- | |
| 36 | 01011-81040 | BOLT | A88001-- | |
| 37 | 01643-31032 | WASHER | A88001-- | |
| 38 | 08028-44035 | CABLE | A88001-- | |
| 39 | 01010-81020 | BOLT | A88001-- | |
| 40 | 01643-31032 | WASHER | A88001-- |
