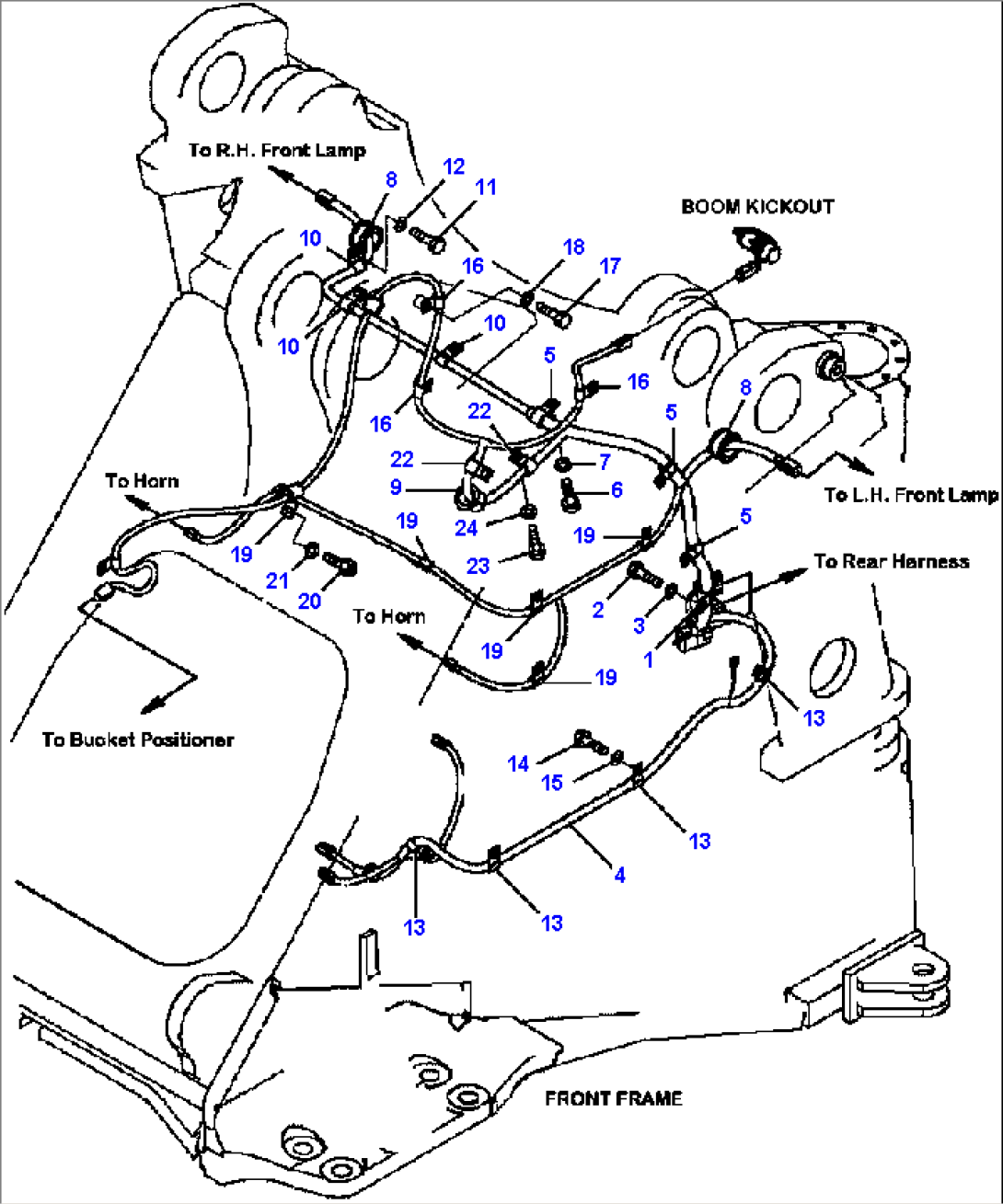

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-51912 | CLIP | A45001-- | |
| 2 | 01010-81020 | BOLT | A45001-- | |
| 3 | 01643-31032 | WASHER | A45001-- | |
| 4 | 421-06-41240 | WIRING HARNESS | A45001-- | |
| 5 | 04434-51912 | CLIP | A45001-- | |
| 6 | 01010-81020 | BOLT | A45001-- | |
| 7 | 01643-31032 | WASHER | A45001-- | |
| 8 | 416-06-11310 | GROMMET | A45001-- | |
| 9 | 426-09-11210 | GROMMET | A45001-- | |
| 10 | 04434-51412 | CLIP | A45001-- | |
| 11 | 01010-81020 | BOLT | A45001-- | |
| 12 | 01643-31032 | WASHER | A45001-- | |
| 13 | 04434-51412 | CLIP | A45001-- | |
| 14 | 01010-81020 | BOLT | A45001-- | |
| 15 | 01643-31032 | WASHER | A45001-- | |
| 16 | 04434-51012 | CLIP | A45001-- | |
| 17 | 01010-81020 | BOLT | A45001-- | |
| 18 | 01643-31032 | WASHER | A45001-- | |
| 19 | 04434-51012 | CLIP | A45001-- | |
| 20 | 01010-81020 | BOLT | A45001-- | |
| 21 | 01643-31032 | WASHER | A45001-- | |
| 22 | 04434-51412 | CLIP | A45001-- | |
| 23 | 01010-81020 | BOLT | A45001-- | |
| 24 | 01643-31032 | WASHER | A45001-- |
