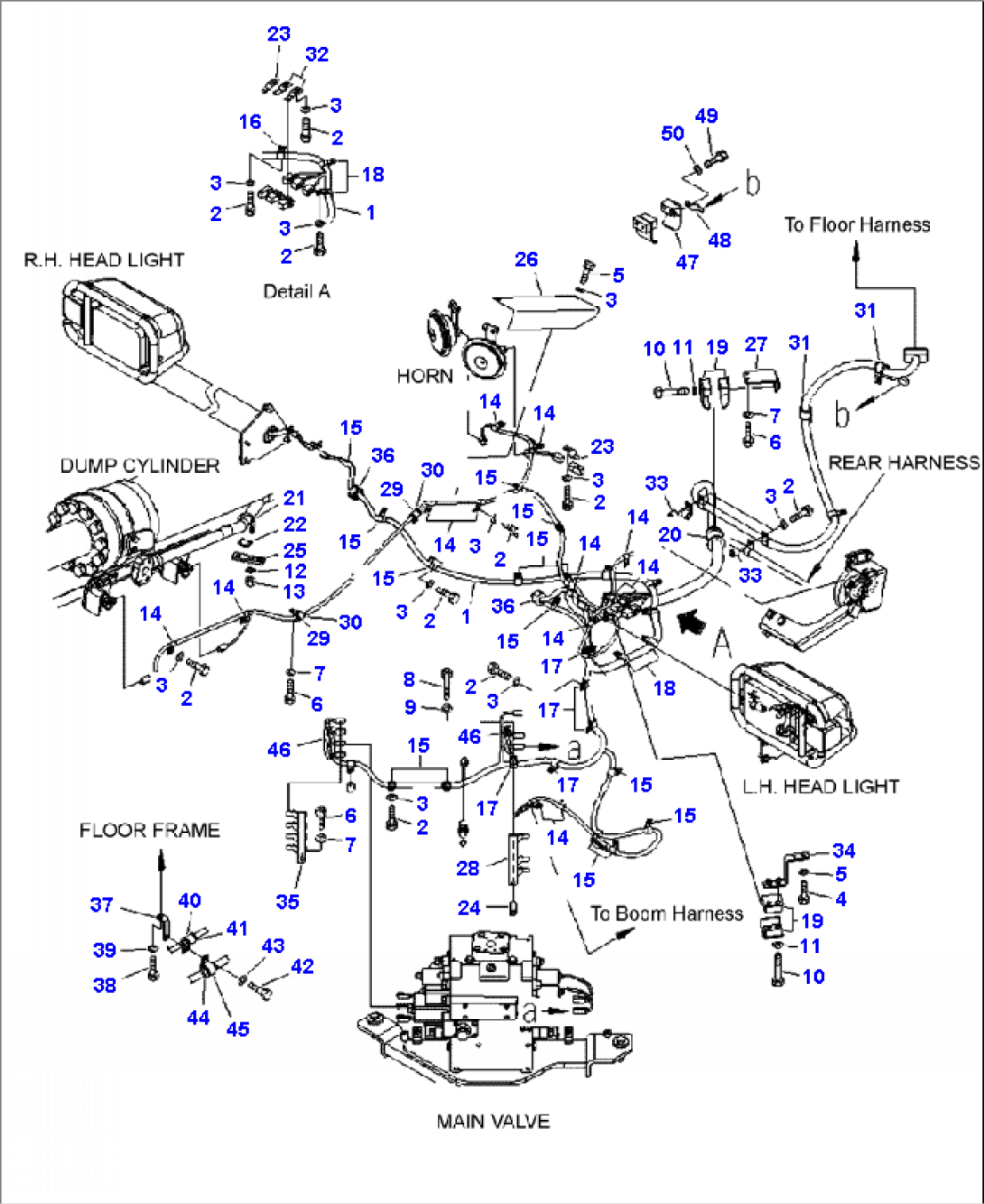

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-877-3350 | WIRING HARNESS | A92001-- | |
| 2 | 01010-81016 | BOLT | A92001-- | |
| 3 | 01643-31032 | WASHER | A92001-- | |
| 4 | 01010-81020 | BOLT | A92001-- | |
| 5 | 01643-31032 | WASHER | A92001-- | |
| 6 | 01010-81025 | BOLT | A92001-- | |
| 7 | 01643-31032 | WASHER | A92001-- | |
| 8 | 01010-81075 | BOLT | A92001-- | |
| 9 | 01643-31032 | WASHER | A92001-- | |
| 10 | 01010-81280 | BOLT | A92001-- | |
| 11 | 01643-31232 | WASHER | A92001-- | |
| 12 | 01643-31032 | WASHER | A92001-- | |
| 13 | 01596-01009 | NUT | A92001-- | |
| 14 | 04434-51012 | CLIP | A92001-- | |
| 15 | 04434-51412 | CLIP | A92001-- | |
| 16 | 04434-51512 | CLIP | A92001-- | |
| 17 | 04434-51712 | CLIP | A92001-- | |
| 18 | 04434-52312 | CLIP | A92001-- | |
| 19 | 07094-11024 | CLAMP | A92001-- | |
| 20 | 07095-01033 | CUSHION | A92001-- | |
| 21 | 07283-33442 | CLIP | A92001-- | |
| 22 | 07283-53444 | SEAT | A92001-- | |
| 23 | 08193-21012 | CLIP | A92001-- | |
| 24 | 41E-70-15420 | SPACER | A92001-- | |
| 25 | 423-06-32280 | BRACKET | A92001-- | |
| 26 | 425-06-32661 | COVER | A92001-- | |
| 27 | 425-06-32673 | BRACKET | A92001-- | |
| 28 | 426-877-3330 | PLATE | A92001-- | |
| 29 | 04434-51612 | CLIP | A92001-- | |
| 30 | 07095-20211 | CUSHION | A92001-- | |
| 31 | 07095-20523 | CUSHION | A92001-- | |
| 32 | 08193-31012 | CLIP | A92001-- | |
| 33 | 175-79-83760 | SPACER | A92001-- | |
| 34 | 425-06-33280 | BRACKET | A92001-- | |
| 35 | 425-06-33291 | PLATE | A92001-- | |
| 36 | 426-09-11210 | GROMMET | A92001-- | |
| 37 | 425-03-11420 | PLATE | A92001-- | |
| 38 | 01010-81020 | BOLT | A92001-- | |
| 39 | 01643-31032 | WASHER | A92001-- | |
| 40 | 04434-53212 | CLIP | A92001-- | |
| 41 | 07095-20522 | CUSHION | A92001-- | |
| 42 | 01010-81025 | BOLT | A92001-- | |
| 43 | 01643-31032 | WASHER | A92001-- | |
| 44 | 04434-53412 | CLIP | A92001-- | |
| 45 | 07095-20625 | CUSHION | A92001-- | |
| 46 | 935 522 C1 | TIES, NYLON | A92001-- | |
| 47 | 425-877-3340 | CLAMP | A92001-- | |
| 48 | 08193-21012 | CLIP | A92001-- | |
| 49 | 01010-81016 | BOLT | A92001-- | |
| 50 | 01643-31032 | WASHER | A92001-- |
