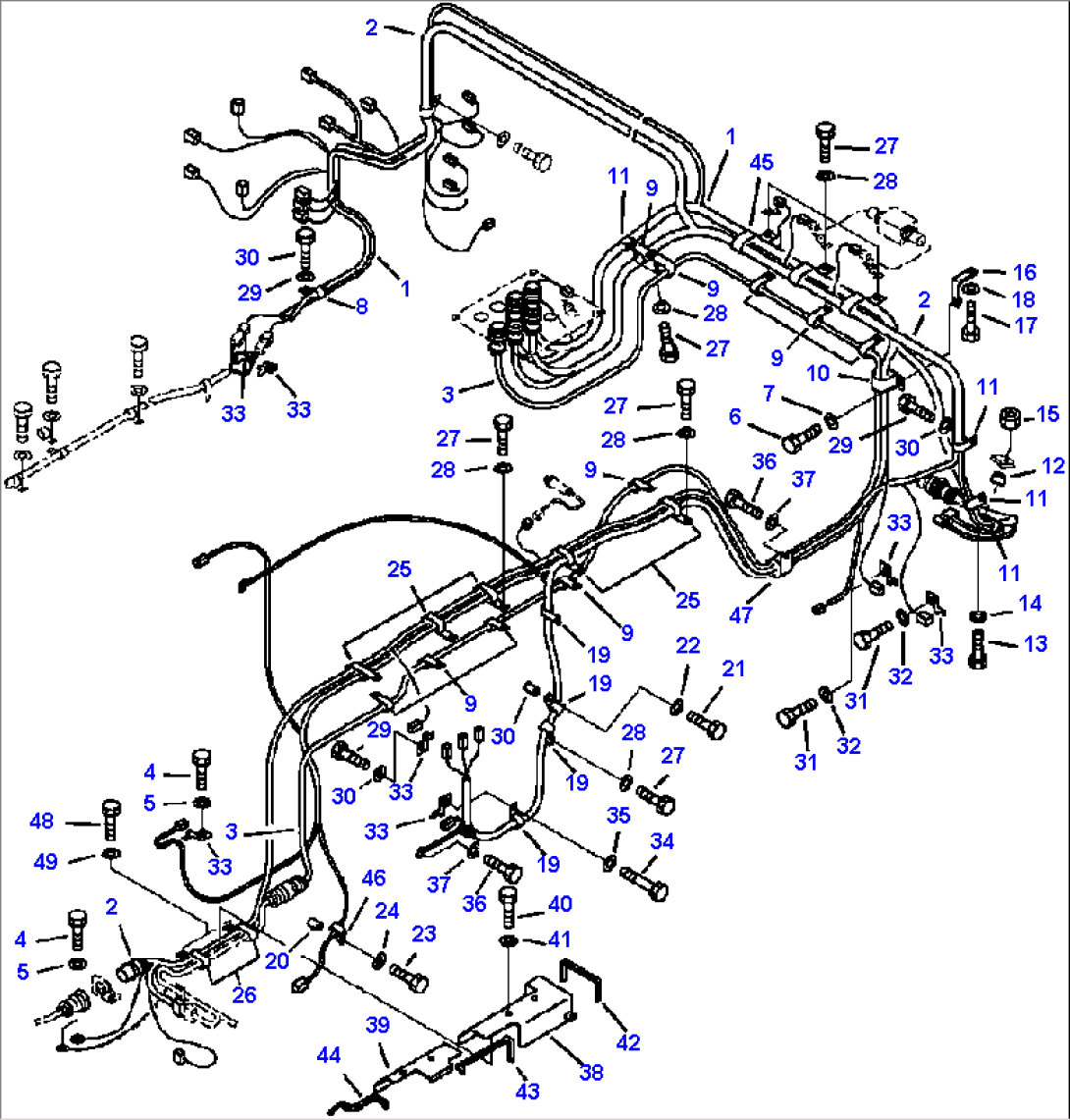

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-06-27111 | WIRING HARNESS | ||
| 2 | 56B-06-27120 | WIRING HARNESS | ||
| 3 | 56B-06-27170 | WIRING HARNESS | ||
| 4 | 01010-81016 | BOLT | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 01010-81020 | BOLT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 04434-51810 | CLIP | ||
| 9 | 04434-52210 | CLIP | ||
| 10 | 56B-06-21340 | CLIP | ||
| 11 | 04434-53411 | CLIP | ||
| 12 | 195-01-14540 | COLLAR | ||
| 13 | 01010-81040 | BOLT | ||
| 14 | 01643-31032 | WASHER | ||
| 15 | 01580-11008 | NUT | ||
| 16 | 56B-06-11240 | BRACKET | ||
| 17 | 01010-81020 | BOLT | ||
| 18 | 01643-31032 | WASHER | ||
| 19 | 04434-51610 | CLIP | ||
| 20 | 415-03-11210 | SPACER | ||
| 21 | 01011-81015 | BOLT | ||
| 22 | 01643-31032 | WASHER | ||
| 23 | 01010-81055 | BOLT | ||
| 24 | 01643-31032 | WASHER | ||
| 25 | 203-06-56390 | CLIP | ||
| 26 | 04435-52210 | CLIP | ||
| 27 | 01010-81020 | BOLT | ||
| 28 | 01643-31032 | WASHER | ||
| 29 | 01010-81016 | BOLT | ||
| 30 | 01643-31032 | WASHER | ||
| 31 | 01010-81020 | BOLT | ||
| 32 | 01643-31032 | WASHER | ||
| 33 | 08193-21012 | CLIP | ||
| 34 | 01010-81020 | BOLT | ||
| 35 | 01643-31032 | WASHER | ||
| 36 | 01010-81016 | BOLT | ||
| 37 | 01643-31032 | WASHER | ||
| 38 | 56B-06-28170 | BRACKET | ||
| 39 | 56B-06-21230 | BRACKET | ||
| 40 | 01010-81220 | BOLT | ||
| 41 | 01643-31232 | WASHER | ||
| 42 | 56B-06-21250 | SEAL | ||
| 43 | 56B-06-21320 | SEAL | ||
| 44 | 56B-06-21330 | SEAL | ||
| 45 | 391-62-19250 | CLIP | ||
| 46 | 04434-51010 | CLIP | ||
| 47 | 208-06-19170 | CLIP | ||
| 48 | 01010-81030 | BOLT | ||
| 49 | 01643-31032 | WASHER |
