| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-53411 | CLIP | A88001-- | |
| 2 | 04434-51708 | CLIP | A88001-- | |
| 3 | 01435-00816 | BOLT | A88001-- | |
| 4 | 01023-60620 | SCREW | A88001-- | |
| 5 | 08059-00515 | CLIP | A88001-- | |
| 6 | 08034-20414 | BAND | A88001-- | |
| 7 | 08034-20519 | BAND | A88001-- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc400lc 8 s/n a88001 up
- Electrical system
- E0200 05a0 main wiring harness clamps and mounting (4/4)
Поиск по каталогу

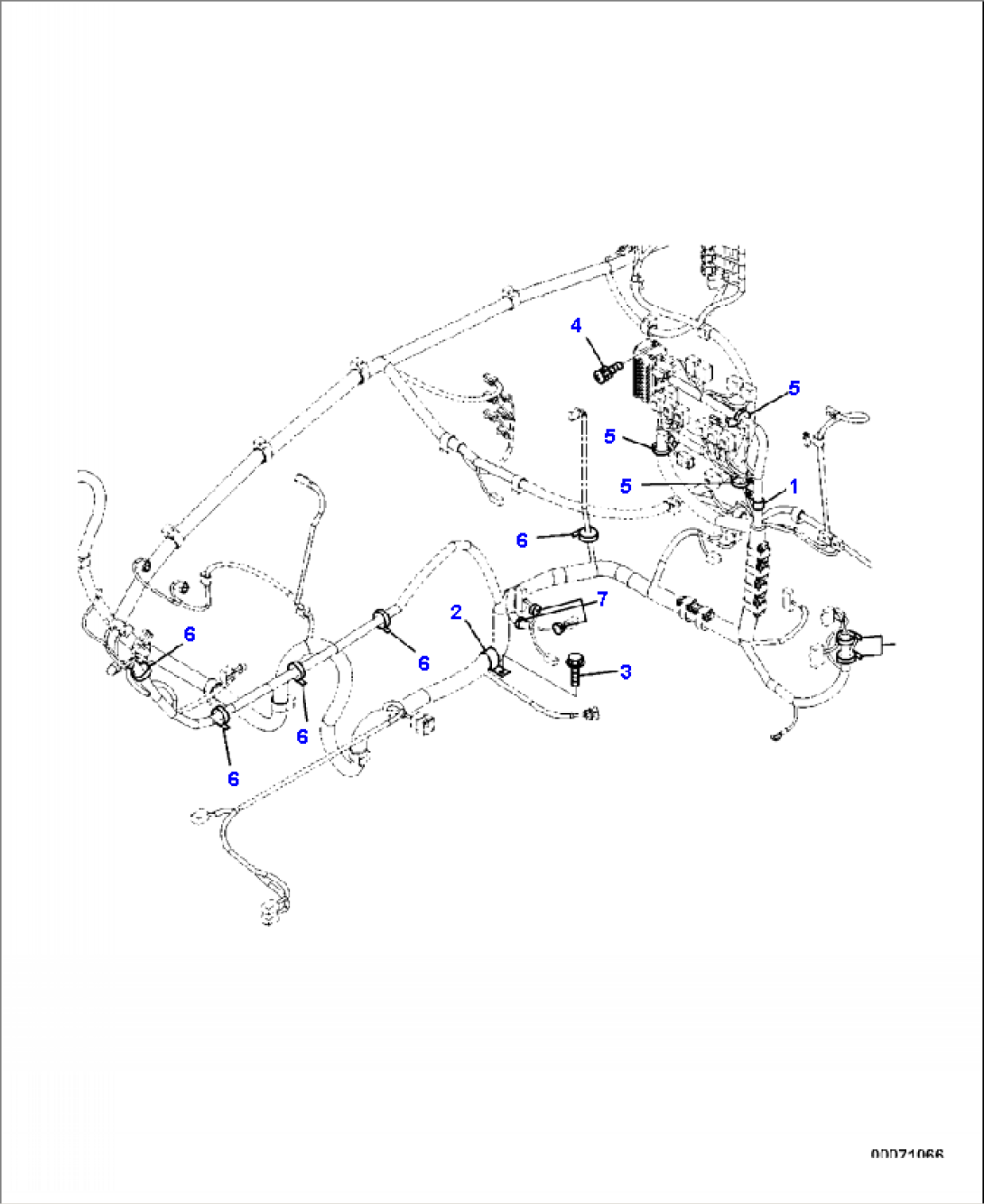

E0200-05A0 MAIN WIRING HARNESS CLAMPS AND MOUNTING (4/4)
