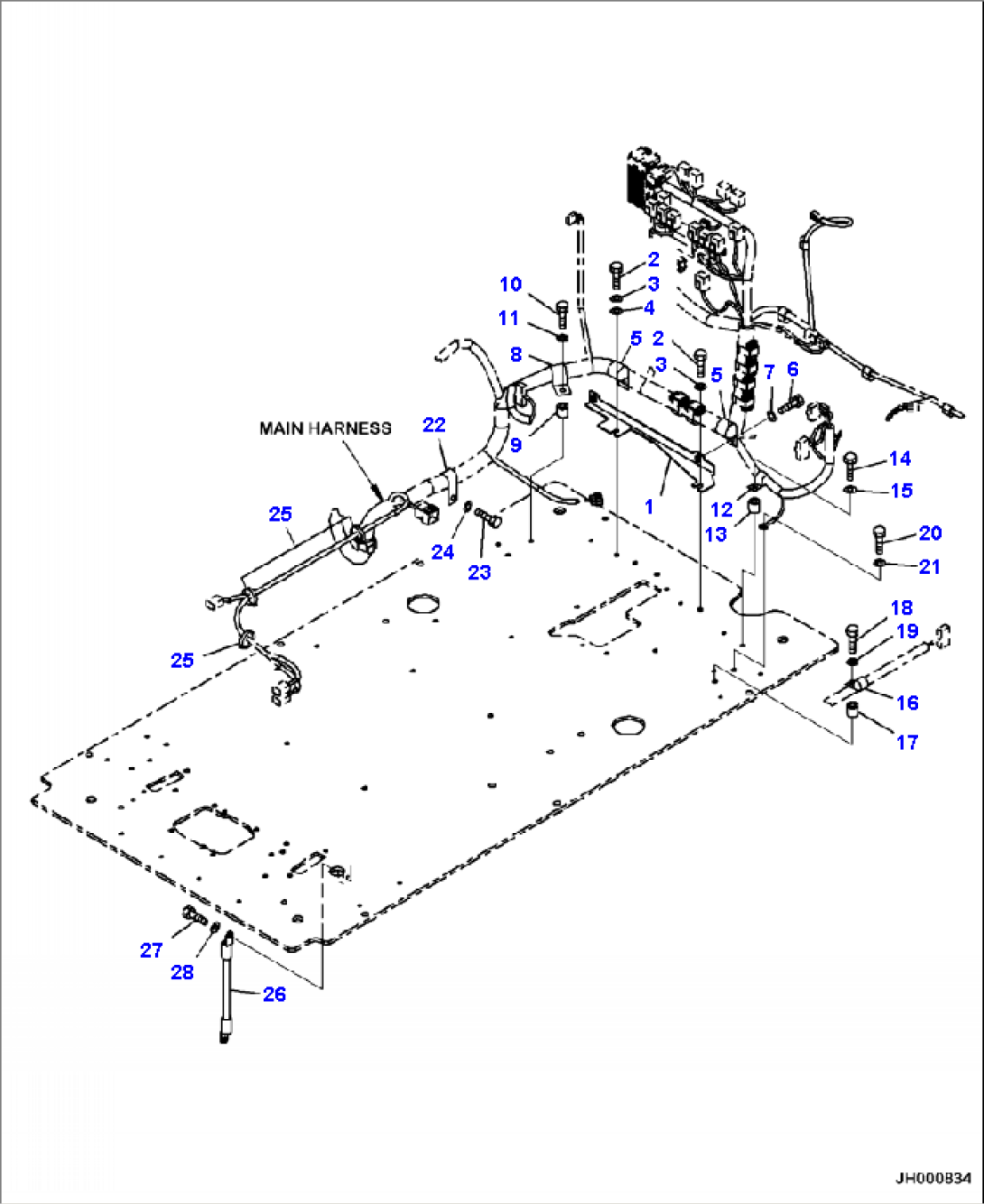

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-53-14121 | BRACKET | A87001-- | |
| 2 | 01010-81016 | BOLT | A87001-- | |
| 3 | 01643-31032 | WASHER | A87001-- | |
| 4 | 01643-31032 | WASHER | A87001-- | |
| 5 | 04434-53411 | CLIP | A87001-- | |
| 6 | 01010-81020 | BOLT | A87001-- | |
| 7 | 01643-31032 | WASHER | A87001-- | |
| 8 | 04434-53411 | CLIP | A87001-- | |
| 9 | 195-33-11220 | SPACER | A87001-- | |
| 10 | 01010-81040 | BOLT | A87001-- | |
| 11 | 01643-31032 | WASHER | A87001-- | |
| 12 | 04434-51910 | CLIP | A87001-- | |
| 13 | 195-33-11220 | SPACER | A87001-- | |
| 14 | 01010-81040 | BOLT | A87001-- | |
| 15 | 01643-31032 | WASHER | A87001-- | |
| 16 | 04434-51410 | CLIP | A87001-- | |
| 17 | 195-33-11220 | SPACER | A87001-- | |
| 18 | 01010-81040 | BOLT | A87001-- | |
| 19 | 01643-31032 | WASHER | A87001-- | |
| 20 | 01010-81020 | BOLT | A87001-- | |
| 21 | 01643-31032 | WASHER | A87001-- | |
| 22 | 04434-53411 | CLIP | A87001-- | |
| 23 | 01010-81020 | BOLT | A87001-- | |
| 24 | 01643-31032 | WASHER | A87001-- | |
| 25 | 08034-20519 | BAND | A87001-- | |
| 26 | 08028-43030 | CABLE | A87001-- | |
| 27 | 01010-81020 | BOLT | A87001-- | |
| 28 | 01643-31032 | WASHER | A87001-- |
