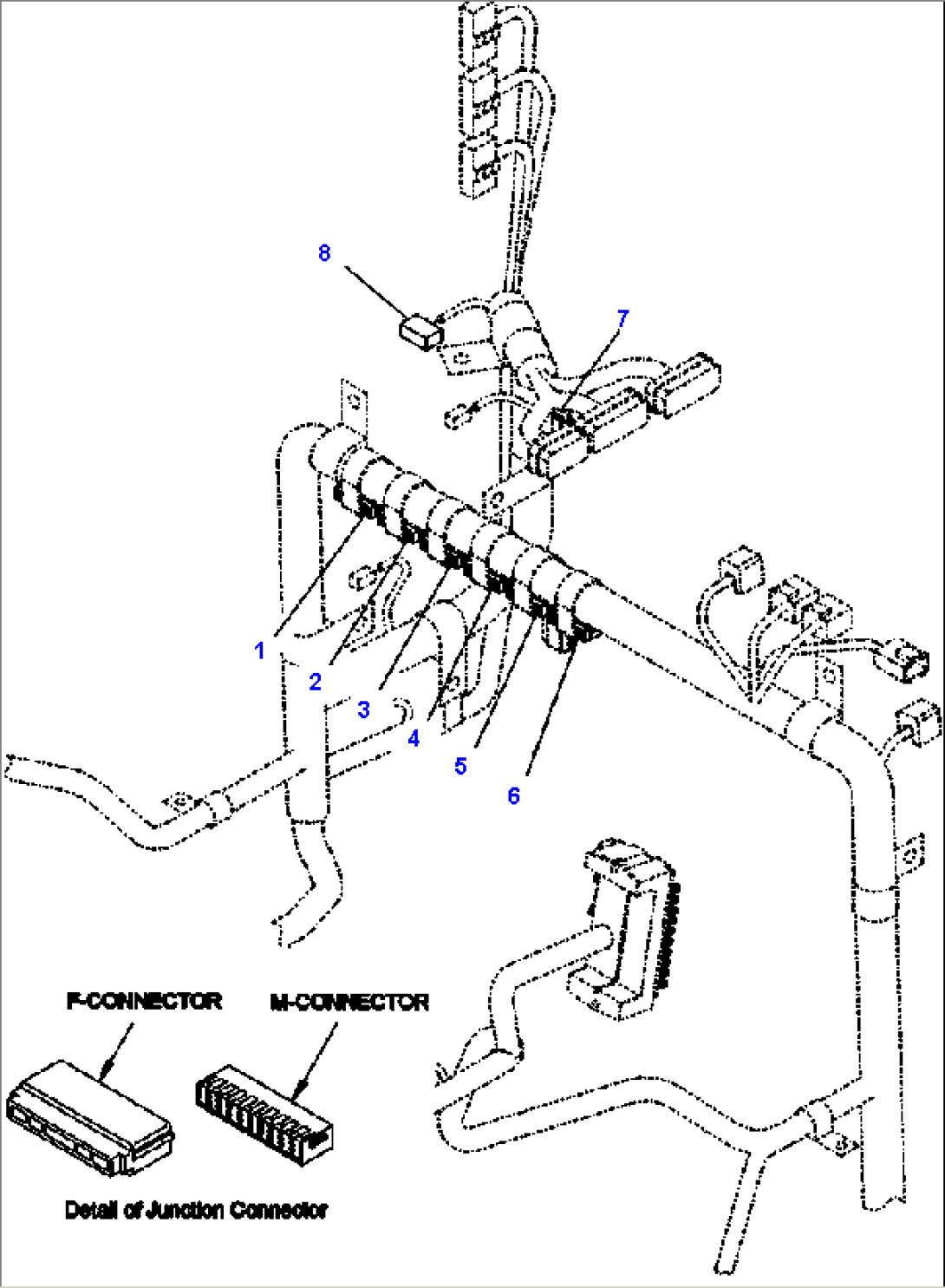

| Item | Part No. | Part Name | Qty | Serial No. |
| | WIRING HARNESS (SEE FIG. E0200-07A0 ) | | |
| | OR | | |
| | (SEE FIG. K1110-06A1 ) | | |
| 1 | (NSS) | JUNCTION CONNECTOR, BLACK (CN-J01) | | A85001-- |
| HM6400-0012 | F-CONNECTOR, BLACK | | A85001-- |
| HM6409-0071 | M-CONNECTOR, BLACK | | A85001-- |
| 2 | (NSS) | JUNCTION CONNECTOR, BLACK (CN-J02) | | A85001-- |
| HM6400-0012 | F-CONNECTOR, BLACK | | A85001-- |
| HM6409-0071 | M-CONNECTOR, BLACK | | A85001-- |
| 3 | (NSS) | JUNCTION CONNECTOR, ORANGE (CN-J03) | | A85001-- |
| HM6400-0013 | F-CONNECTOR, GREEN | | A85001-- |
| HM6409-0072 | M-CONNECTOR, GREEN | | A85001-- |
| 4 | (NSS) | JUNCTION CONNECTOR, GREEN (CN-J04) | | A85001-- |
| HM6400-0013 | F-CONNECTOR, GREEN | | A85001-- |
| HM6409-0072 | M-CONNECTOR, GREEN | | A85001-- |
| 5 | (NSS) | JUNCTION CONNECTOR, PINK (CN-J05) | | A85001-- |
| HM6440-0129 | F-CONNECTOR, PINK | | A85001-- |
| HM6440-0128 | M-CONNECTOR, PINK | | A85001-- |
| 6 | (NSS) | JUNCTION CONNECTOR, ORANGE (CN-J06) | | A85001-- |
| HM6400-0016 | F-CONNECTOR, ORANGE | | A85001-- |
| HM6409-0075 | M-CONNECTOR, ORANGE | | A85001-- |
| 7 | (NSS) | JUNCTION CONNECTOR, ORANGE (CN-J07) | | A85001-- |
| HM6400-0016 | F-CONNECTOR, ORANGE | | A85001-- |
| HM6409-0075 | M-CONNECTOR, ORANGE | | A85001-- |
| 8 | (NSS) | JUNCTION CONNECTOR, PINK (CN-J08) | | A85001-- |
| HM6440-0129 | F-CONNECTOR, PINK | | A85001-- |
| HM6440-0128 | M-CONNECTOR, PINK | | A85001-- |
