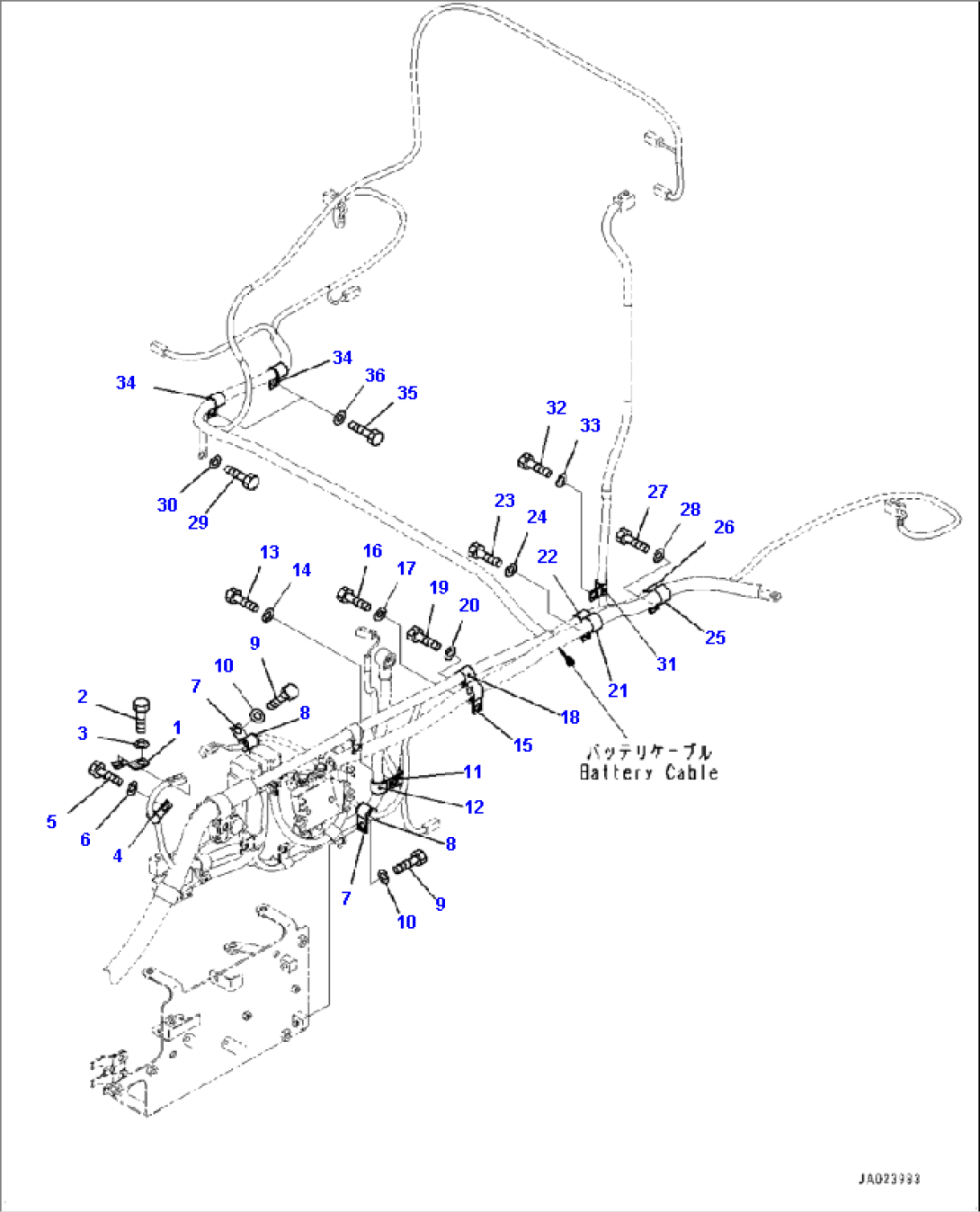

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08193-20012 | CLIP | ||
| 2 | 01010-81016 | BOLT | ||
| 3 | 01643-31032 | WASHER | ||
| 4 | 04434-51012 | CLIP | ||
| 5 | 01010-81020 | BOLT | ||
| 6 | 01643-31032 | WASHER | ||
| 7 | 04434-51612 | CLIP | ||
| 8 | 07095-20211 | CUSHION | ||
| 9 | 01010-81020 | BOLT | ||
| 10 | 01643-31032 | WASHER | ||
| 11 | 04434-51012 | CLIP | ||
| 12 | 04434-51712 | CLIP | ||
| 13 | 01010-81025 | BOLT | ||
| 14 | 01643-31032 | WASHER | ||
| 15 | 04434-52312 | CLIP | ||
| 16 | 01010-D1020 | BOLT | ||
| 17 | 01643-71032 | WASHER | ||
| 18 | 04434-51912 | CLIP | ||
| 19 | 01010-D1020 | BOLT | ||
| 20 | 01643-71032 | WASHER | ||
| 21 | 04434-52312 | CLIP | ||
| 22 | 04434-51712 | CLIP | ||
| 23 | 01010-81025 | BOLT | ||
| 24 | 01643-31032 | WASHER | ||
| 25 | 04434-52312 | CLIP | ||
| 26 | 04434-51012 | CLIP | ||
| 27 | 01010-81025 | BOLT | ||
| 28 | 01643-31032 | WASHER | ||
| 29 | 01010-81016 | BOLT | ||
| 30 | 01643-31032 | WASHER | ||
| 31 | 04434-51412 | CLIP | ||
| 32 | 01010-81020 | BOLT | ||
| 33 | 01643-31032 | WASHER | ||
| 34 | 04434-51712 | CLIP | ||
| 35 | 01010-81020 | BOLT | ||
| 36 | 01643-31032 | WASHER |
