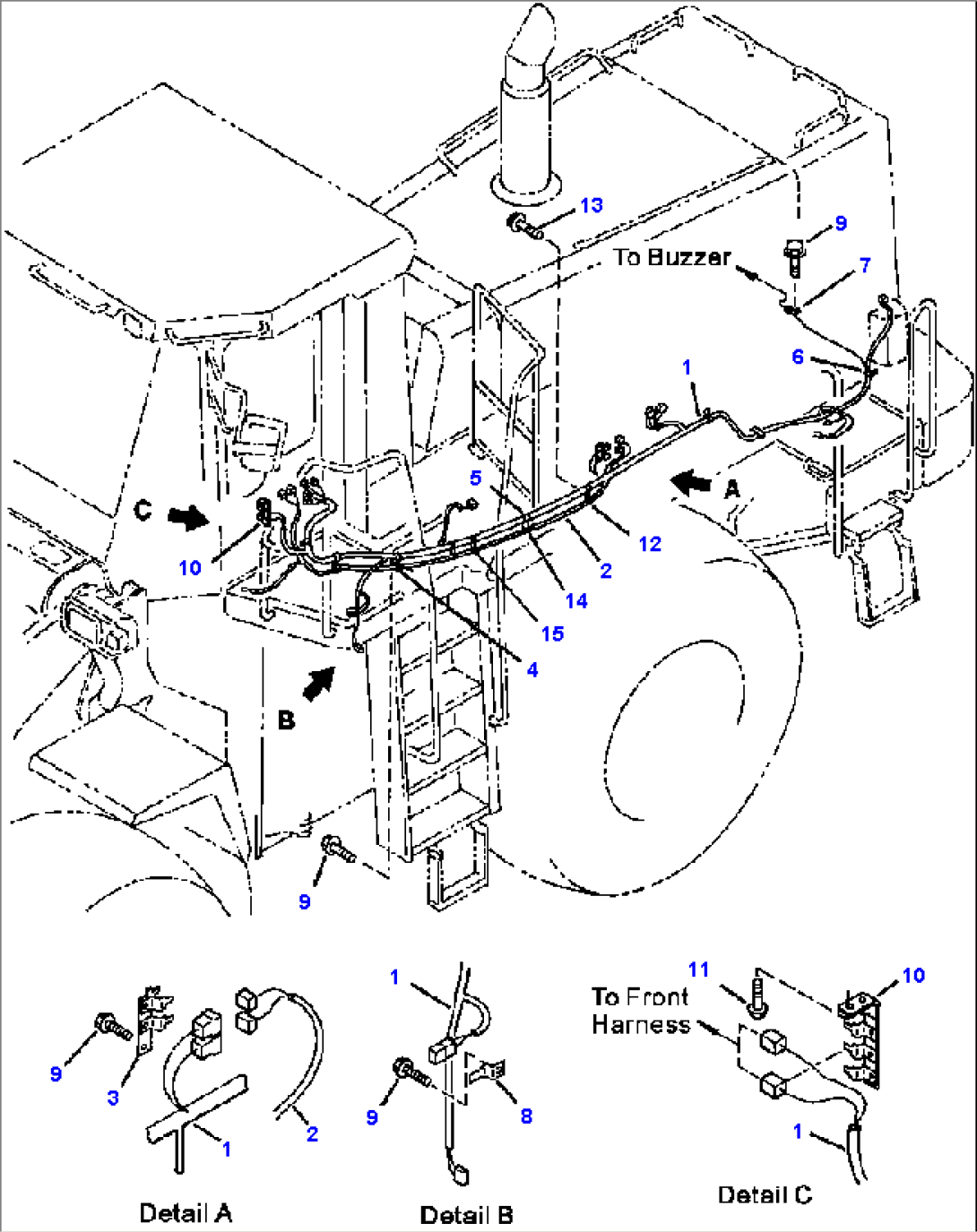

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-06-A2740 | HARNESS, REAR FRAME | A52001-- | |
| 421-06-22750 | HARNESS, WIRING (JUMPER) | A52001-- | ||
| OR | ||||
| 426-06-22390 | HARNESS, REAR FRAME | A52001-- | ||
| 421-06-22750 | HARNESS, WIRING (JUMPER) | A52001-- | ||
| 2 | 421-06-22351 | HARNESS, ECM LINE | A52001-- | |
| 3 | 426-06-22830 | PLATE | A52001-- | |
| 4 | 04434-53410 | CLIP | A52001-- | |
| 5 | 04434-52710 | CLIP | A52001-- | |
| 6 | 04434-51710 | CLIP | A52001-- | |
| 7 | 04434-51010 | CLIP | A52001-- | |
| 8 | 08053-01510 | CLIP | A52001-- | |
| 9 | 01435-01016 | BOLT | A52001-- | |
| 10 | 421-06-22660 | BRACKET | A52001-- | |
| 11 | 01435-01016 | BOLT | A52001-- | |
| 12 | 04434-51810 | CLIP | A52001-- | |
| 13 | 01435-01016 | BOLT | A52001-- | |
| 14 | 04434-51910 | CLIP | A52001-- | |
| 15 | 08034-20536 | BAND | A52001-- | |
| F1 - WITH LOGGING OPTION ONLY. |
