| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-41710 | CABLE, BATTERY TO STARTER RELAY | A47001-- | |
| 2 | 01010-81020 | BOLT | A47001-- | |
| 3 | 01643-31032 | WASHER | A47001-- | |
| 4 | 04434-52312 | CLIP | A47001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n a47001 up
- Electrical system
- E0202 03a0 wiring harness battery to starter relay
Поиск по каталогу

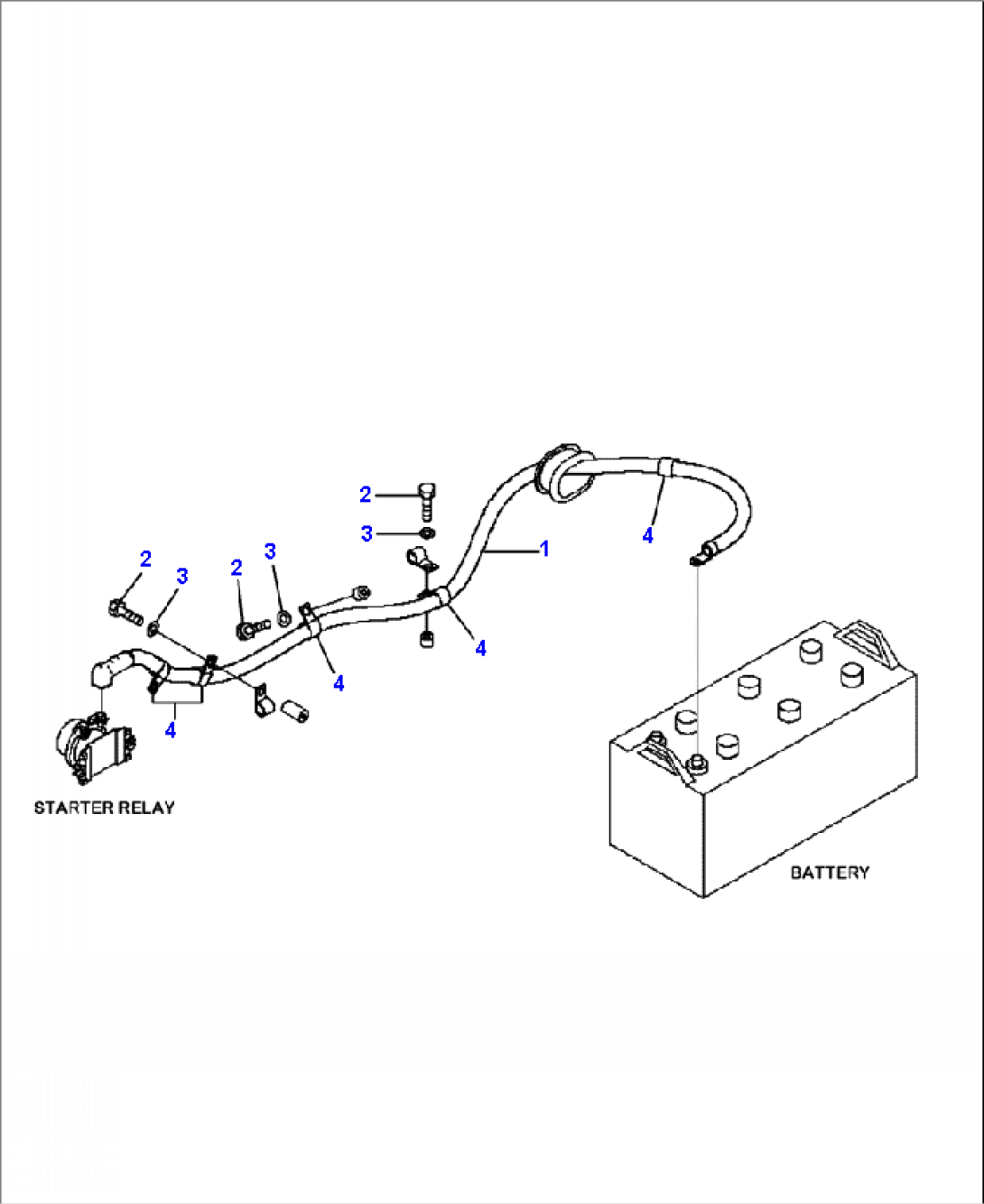

E0202-03A0 WIRING HARNESS BATTERY TO STARTER RELAY
