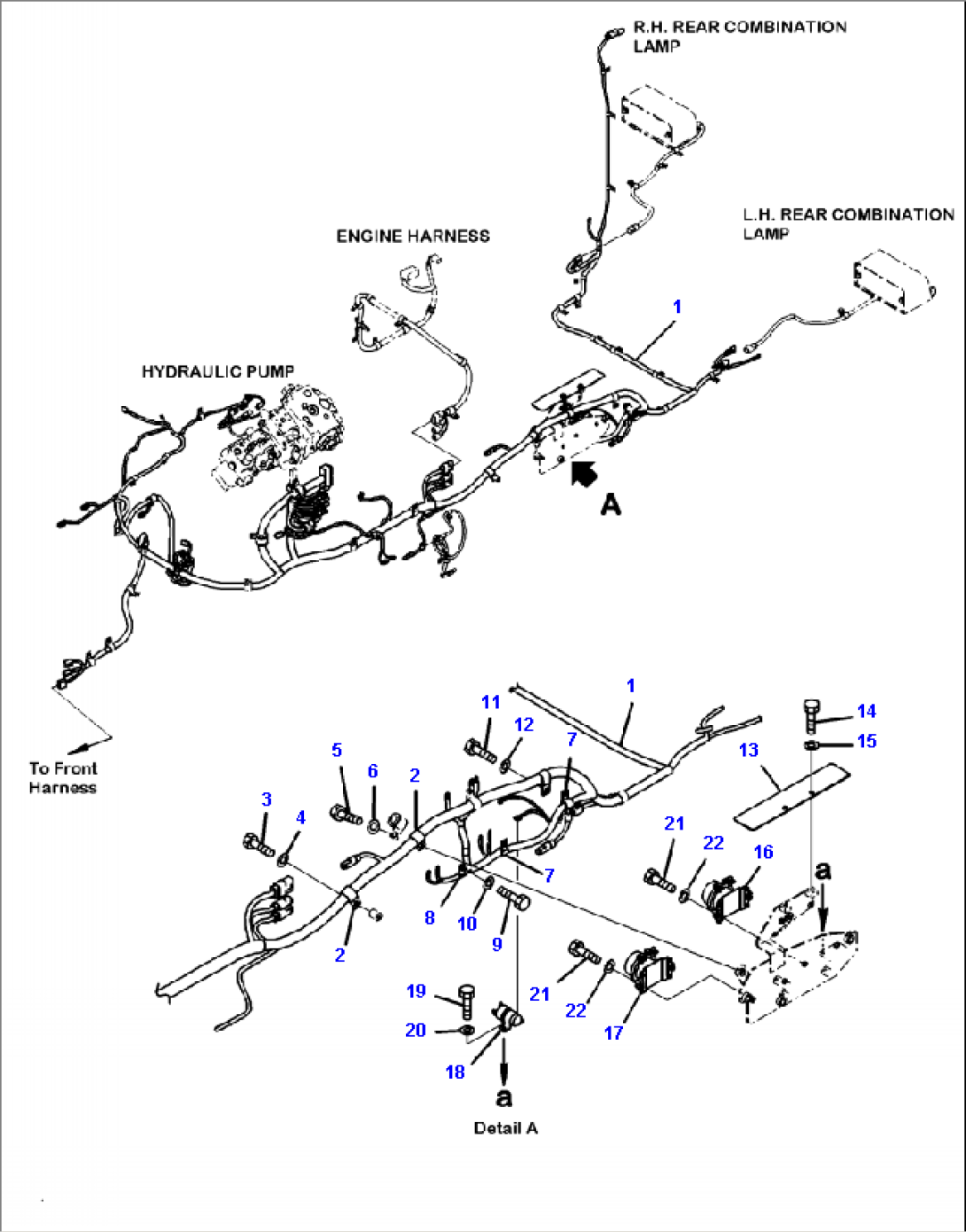

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-42381 | WIRING HARNESS | A48001-- | |
| N/I | 21J-06-13661 | DIODE | A48001-- | |
| 2 | 04434-52712 | CLIP | A48001-- | |
| 3 | 01010-81020 | BOLT | A48001-- | |
| 4 | 01643-31032 | WASHER | A48001-- | |
| 5 | 01010-81025 | BOLT | A48001-- | |
| 6 | 01643-31032 | WASHER | A48001-- | |
| 7 | 04434-51712 | CLIP | A48001-- | |
| 8 | 04434-51012 | CLIP | A48001-- | |
| 9 | 01010-81020 | BOLT | A48001-- | |
| 10 | 01643-31032 | WASHER | A48001-- | |
| 11 | 01010-81025 | BOLT | A48001-- | |
| 12 | 01643-31032 | WASHER | A48001-- | |
| 13 | 421-06-42910 | PLATE | A48001-- | |
| 14 | 01010-80816 | BOLT | A48001-- | |
| 15 | 01643-30823 | WASHER | A48001-- | |
| 16 | 08088-30000 | SWITCH, STARTER RELAY | A48001-- | |
| 17 | 561-06-61510 | SWITCH, EMERGENCY STEERING RELAY | A48001-- | |
| 18 | 600-815-2170 | SWITCH, HEATER | A48001-- | |
| 19 | 01010-80616 | BOLT | A48001-- | |
| 20 | 01643-30623 | WASHER | A48001-- | |
| 21 | 01010-80830 | BOLT | A48001-- | |
| 22 | 01643-30823 | WASHER | A48001-- |
