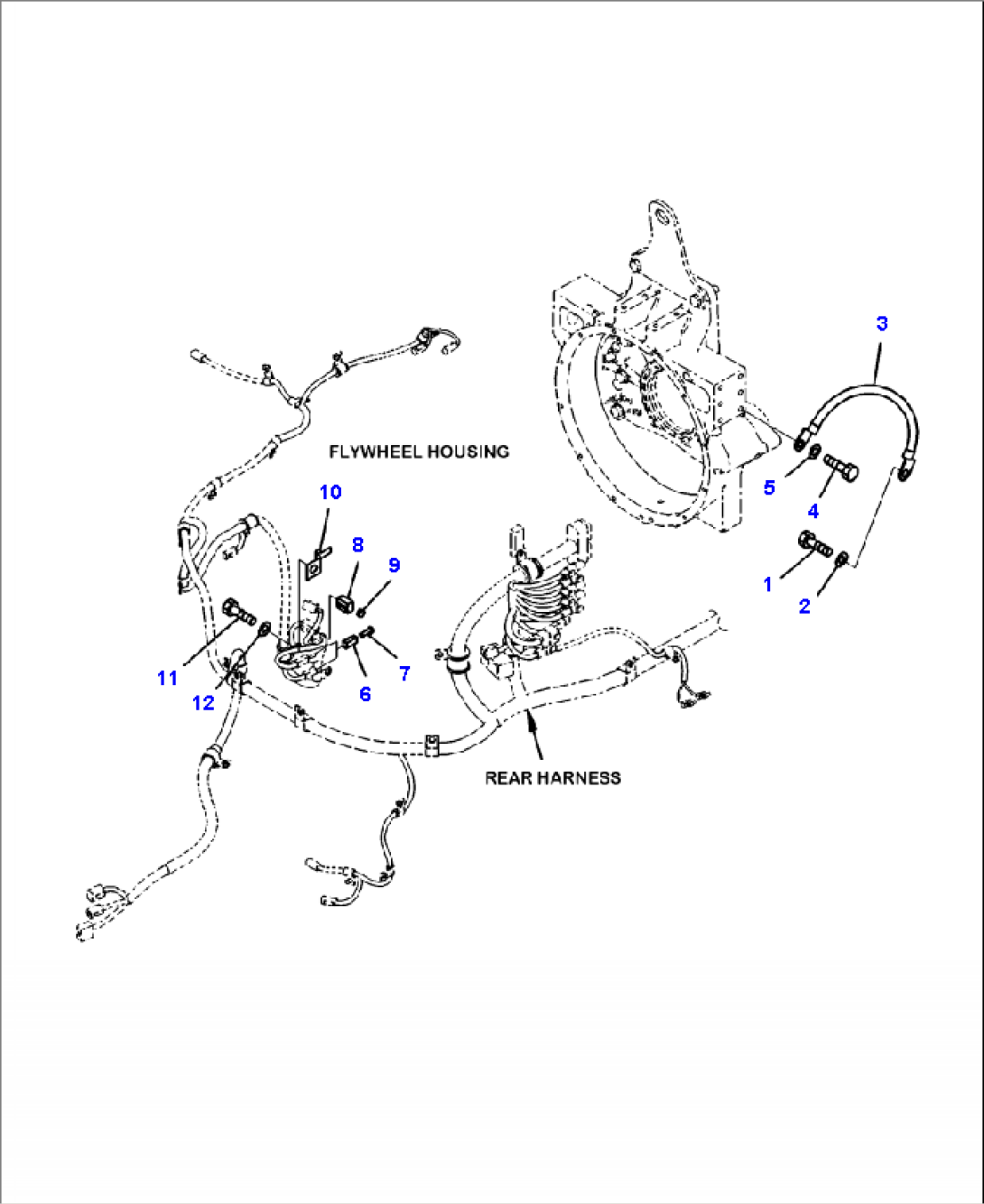

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81625 | BOLT | A47001-- | |
| 2 | 01643-31645 | WASHER | A47001-- | |
| 3 | 421-06-42760 | CABLE, ENGINE GROUND | A47001-- | |
| 4 | 01010-81425 | BOLT | A47001-- | |
| 5 | 01643-31445 | WASHER | A47001-- | |
| 6 | 08192-22830 | CONNECTOR | A47001-- | |
| 7 | 08191-00770 | PLUG | A47001-- | |
| 8 | 08055-00282 | CONNECTOR | A47001-- | |
| 9 | 08055-00070 | PLUG | A47001-- | |
| 10 | 08053-01510 | CLIP | A47001-- | |
| 11 | 01010-81020 | BOLT | A47001-- | |
| 12 | 01643-31032 | WASHER | A47001-- |
