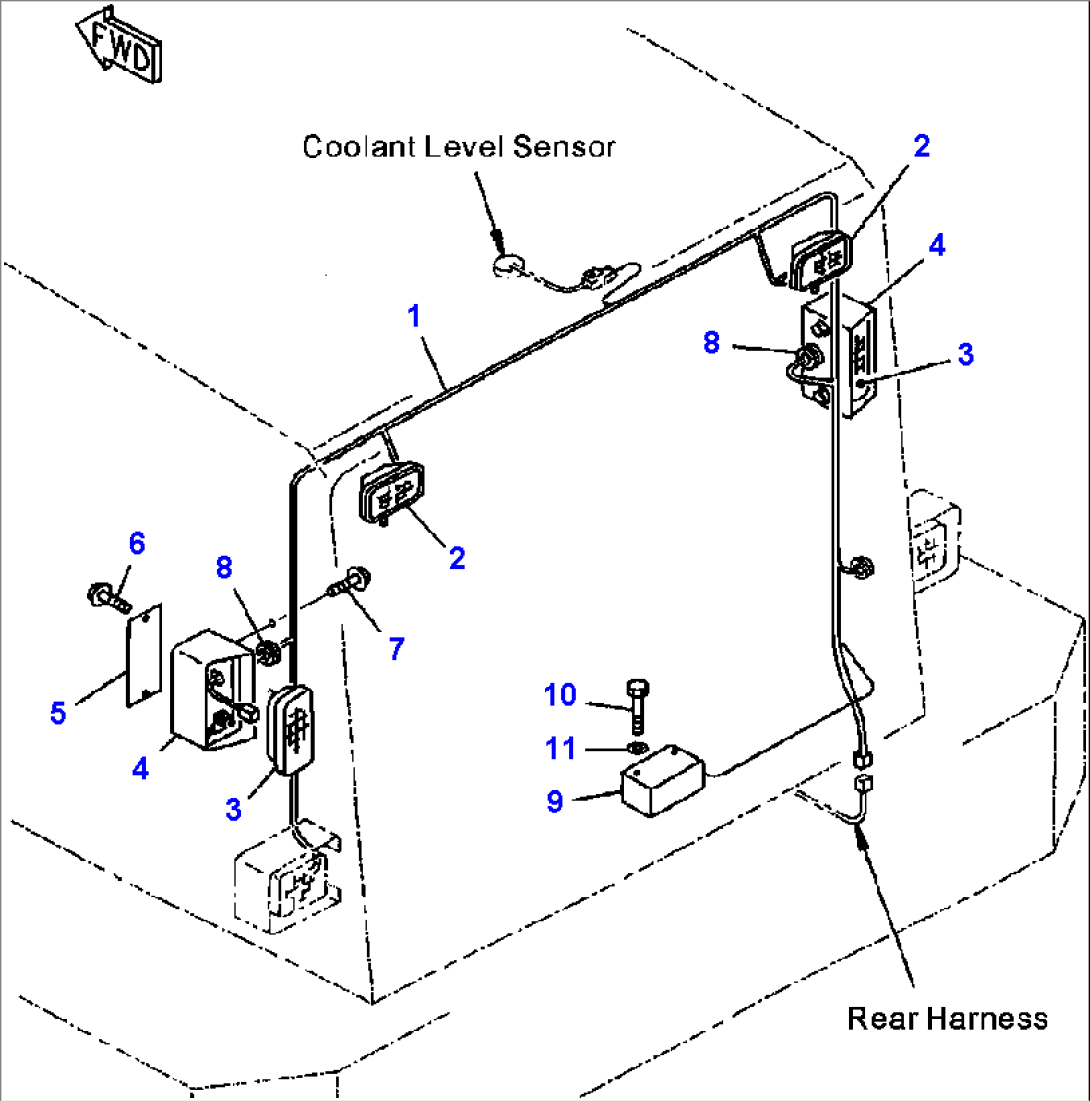

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-22470 | HARNESS, REAR LAMP AND BACK-UP WIRING | A50001-- | |
| 2 | 421-06-23310 | LAMP ASSEMBLY, REAR | A50001-- | |
| 421-06-23340 | LENS | A50001-- | ||
| 421-06-23330 | BULB, 70W | A50001-- | ||
| 01582-11411 | NUT | A50001-- | ||
| 01602-21442 | WASHER, LOCK | A50001-- | ||
| 01643-31445 | WASHER | A50001-- | ||
| 08056-00271 | CONNECTOR | A50001-- | ||
| 3 | 421-06-23210 | LAMP ASSEMBLY, COMBINATION | A50001-- | |
| 421-06-23220 | LAMP ASSEMBLY | A50001-- | ||
| 08104-12420 | BULB, 25/10W | A50001-- | ||
| 08105-12420 | BULB, 25W | A50001-- | ||
| 01220-40535 | SCREW | A50001-- | ||
| 42A-06-13160 | NUT | A50001-- | ||
| 08056-00671 | CONNECTOR | A50001-- | ||
| 4 | 428-06-22240 | BRACKET | A50001-- | |
| 5 | 428-06-22250 | PLATE | A50001-- | |
| 6 | 01435-01016 | BOLT | A50001-- | |
| 7 | 01435-01020 | BOLT | A50001-- | |
| 8 | 08037-03614 | GROMMET | A50001-- | |
| 9 | 737 188 C2 | ALARM, BACK-UP | A50001-- | |
| 10 | 6132-11-6460 | BOLT | A50001-- | |
| 11 | 01640-20816 | WASHER | A50001-- |
