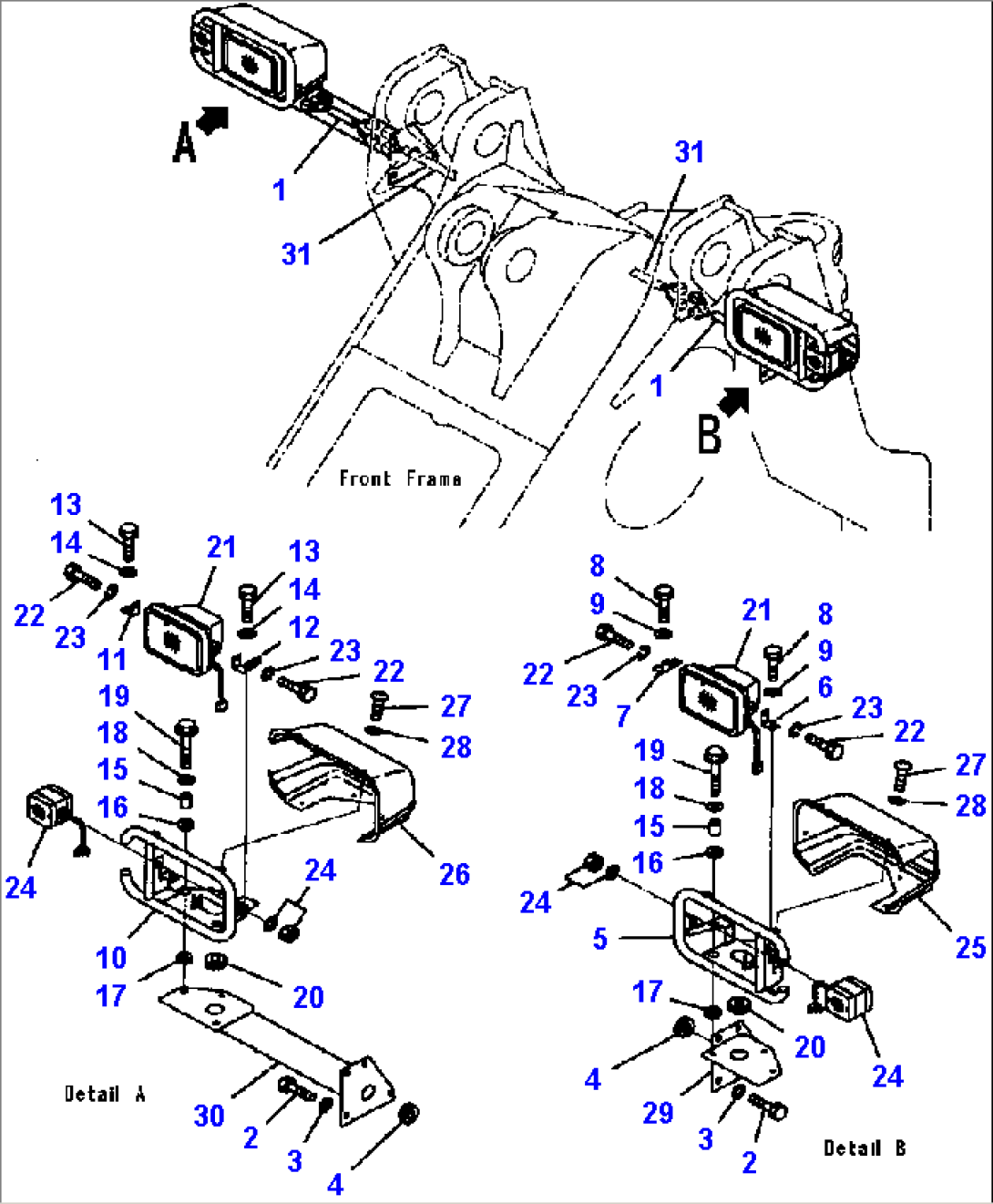

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-22360 | HARNESS, FRONT LAMP | A70001 -- | |
| 2 | 01010-81225 | BOLT | A70001 -- | |
| 3 | 01643-31232 | WASHER | A70001 -- | |
| 4 | 08037-03614 | GROMMET | A70001 -- | |
| 5 | 421-06-23522 | BRACKET, L.H. | A70001 -- | |
| 6 | 421-06-23552 | PLATE | A70001 -- | |
| 7 | 421-06-23630 | PLATE, L.H. | A70001 -- | |
| 8 | 01010-81025 | BOLT | A70001 -- | |
| 9 | 01643-31032 | WASHER | A70001 -- | |
| 10 | 421-06-23532 | BRACKET, R.H. | A70001 -- | |
| 11 | 421-06-23552 | PLATE | A70001 -- | |
| 12 | 421-06-23640 | PLATE, R.H. | A70001 -- | |
| 13 | 01010-81025 | BOLT | A70001 -- | |
| 14 | 01643-31032 | WASHER | A70001 -- | |
| 15 | 417-54-13470 | SPACER | A70001 -- | |
| 16 | 419-43-17930 | CUSHION | A70001 -- | |
| 17 | 415-64-13130 | CUSHION | A70001 -- | |
| 18 | 419-43-17920 | WASHER | A70001 -- | |
| 19 | 01435-01250 | BOLT | A70001 -- | |
| 20 | 08037-03614 | GROMMET | A70001 -- | |
| 21 | 424-06-23210 | LIGHT ASSEMBLY, HEAD | A70001 -- | |
| 424-06-23230 | BULB, 70/75W | A70001 -- | ||
| 424-06-23220 | LENS | A70001 -- | ||
| 22 | 01010-80825 | BOLT | A70001 -- | |
| 23 | 01602-20825 | WASHER, LOCK | A70001 -- | |
| 24 | 41G-06-13201 | LIGHT ASSEMBLY, FRONT COMBINATION | A70001 -- | |
| 41G-06-13210 | LENS, FRONT | A70001 -- | ||
| 41G-06-13230 | BULB, 5W | A70001 -- | ||
| 08105-12420 | BULB, 25W | A70001 -- | ||
| 41G-06-13220 | LENS, REAR | A70001 -- | ||
| 01220-40425 | SCREW | A70001 -- | ||
| 25 | 421-06-23611 | COVER, L.H. | A70001 -- | |
| 26 | 421-06-23621 | COVER, R.H. | A70001 -- | |
| 27 | 01220-40616 | SCREW | A70001 -- | |
| 28 | 01643-30623 | WASHER | A70001 -- | |
| 29 | 425-06-23111 | SUPPORT, L.H. | A70001 -- | |
| 30 | 425-06-23121 | SUPPORT, R.H. | A70001 -- | |
| 31 | HARNESS, FRONT LAMP (SEE FIG. E0200-01A0 ) | A70001 -- |
