| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81225 | BOLT | A92001-- | |
| 2 | 01643-31232 | WASHER | A92001-- | |
| 3 | 08193-21012 | CLIP | A92001-- | |
| 4 | 04434-51012 | CLIP | A92001-- | |
| 5 | 01010-81016 | BOLT | A92001-- | |
| 6 | 01643-31032 | WASHER | A92001-- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 6 s/n a92001 a93000
- Electrical system
- E0300 03a0 front working lamp mounting
Поиск по каталогу

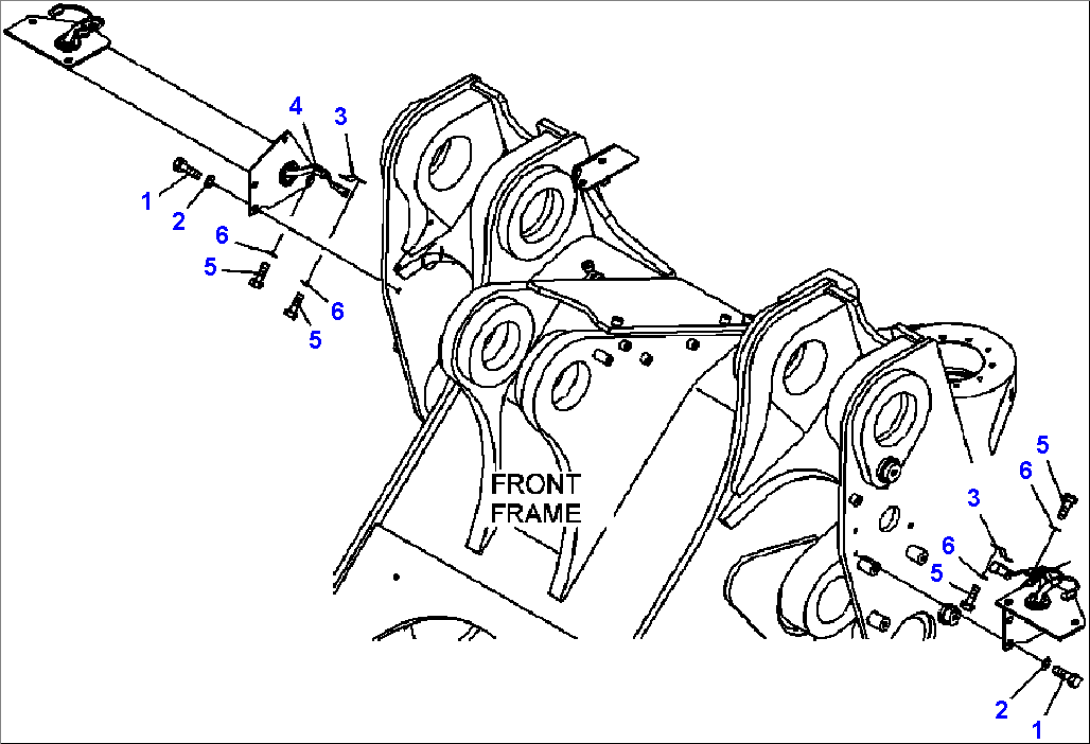

E0300-03A0 FRONT WORKING LAMP MOUNTING
