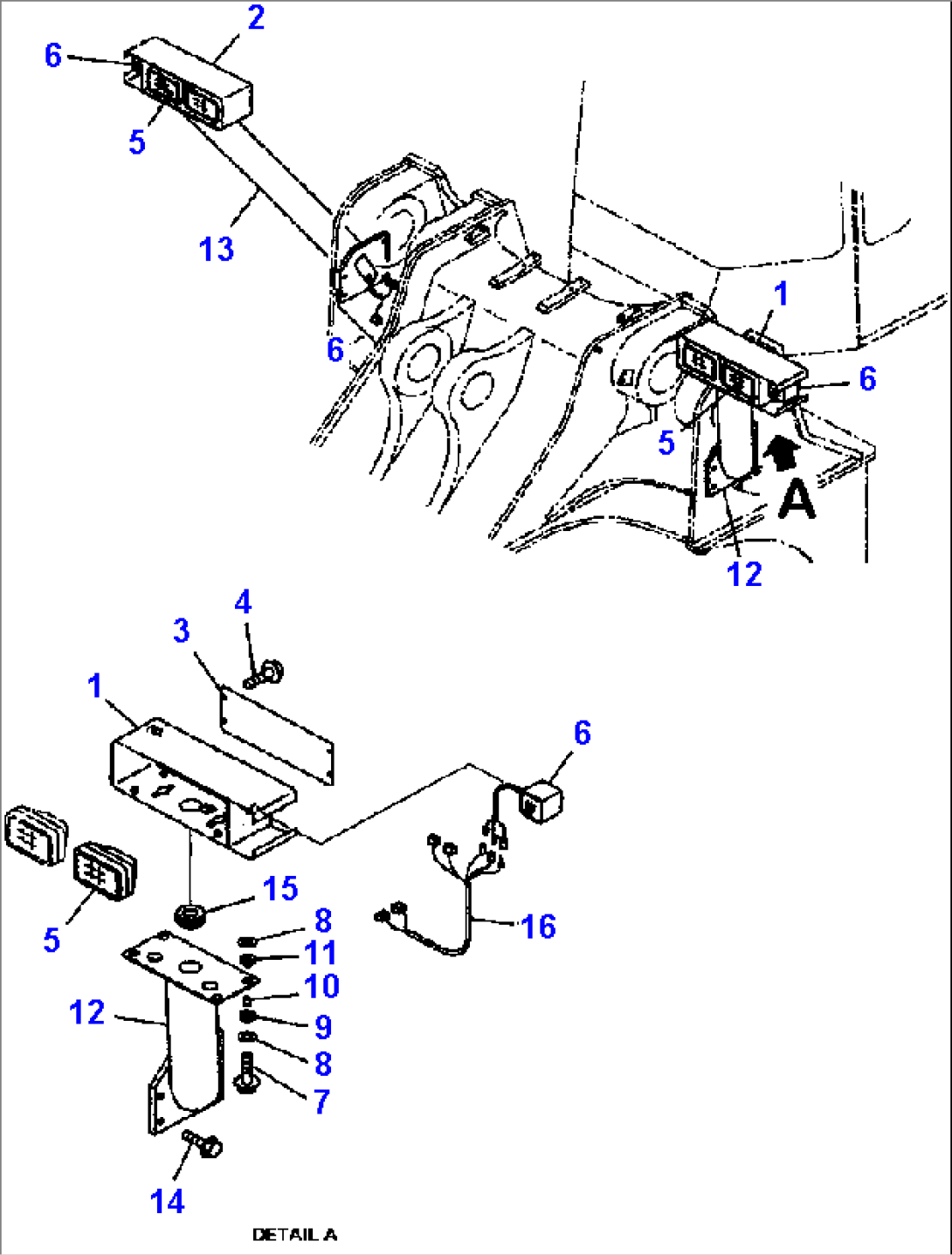

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-23132 | BRACKET | A50001-- | |
| 2 | 427-06-23141 | BRACKET | A50001-- | |
| 3 | 427-06-23150 | PLATE | A50001-- | |
| 4 | 01435-01020 | BOLT | A50001-- | |
| 5 | 421-06-23310 | LAMP ASSEMBLY, FRONT | A50001-- | |
| 421-06-23340 | LENS | A50001-- | ||
| 421-06-23330 | BULB, 70W | A50001-- | ||
| 01582-11411 | NUT | A50001-- | ||
| 01602-21442 | WASHER, LOCK | A50001-- | ||
| 01643-31445 | WASHER | A50001-- | ||
| 6 | 41G-06-13201 | LAMP ASSEMBLY, TURN SIGNAL | A50001-- | |
| 41G-06-13210 | LENS, FRONT | A50001-- | ||
| 41G-06-13220 | LENS, REAR | A50001-- | ||
| 41G-06-13230 | BULB, 5W | A50001-- | ||
| 08105-12420 | BULB, 25W | A50001-- | ||
| 01220-40425 | SCREW | A50001-- | ||
| 7 | 01435-01250 | BOLT | A50001-- | |
| 8 | 419-43-17920 | WASHER | A50001-- | |
| 9 | 415-64-13130 | CUSHION | A50001-- | |
| 10 | 417-54-13470 | SPACER | A50001-- | |
| 11 | 419-43-17930 | CUSHION | A50001-- | |
| 12 | 427-06-23112 | SUPPORT, LEFT | A50001-- | |
| 13 | 427-06-23122 | SUPPORT, RIGHT | A50001-- | |
| 14 | 01435-01240 | BOLT | A50001-- | |
| 15 | 08037-05016 | GROMMET | A50001-- | |
| 16 | 427-06-22170 | HARNESS, FRONT LAMP WIRING | A50001-- |
