| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 2A5-06-12440 | LAMP ASSEMBLY, WORKING | ||
| 421-06-23330 | BULB, 70 WATT | |||
| 2 | 01010-D1030 | BOLT | ||
| 3 | 01643-71032 | WASHER | ||
| 4 | 560-43-15220 | WASHER | ||
| 5 | 08036-10810 | CLIP | ||
| 6 | 20Y-54-54480 | PLATE |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc210lc 10 s/n a10001 up
- Electrical system
- E0310 001001 additional working lamp cab front full guard lv1
Поиск по каталогу

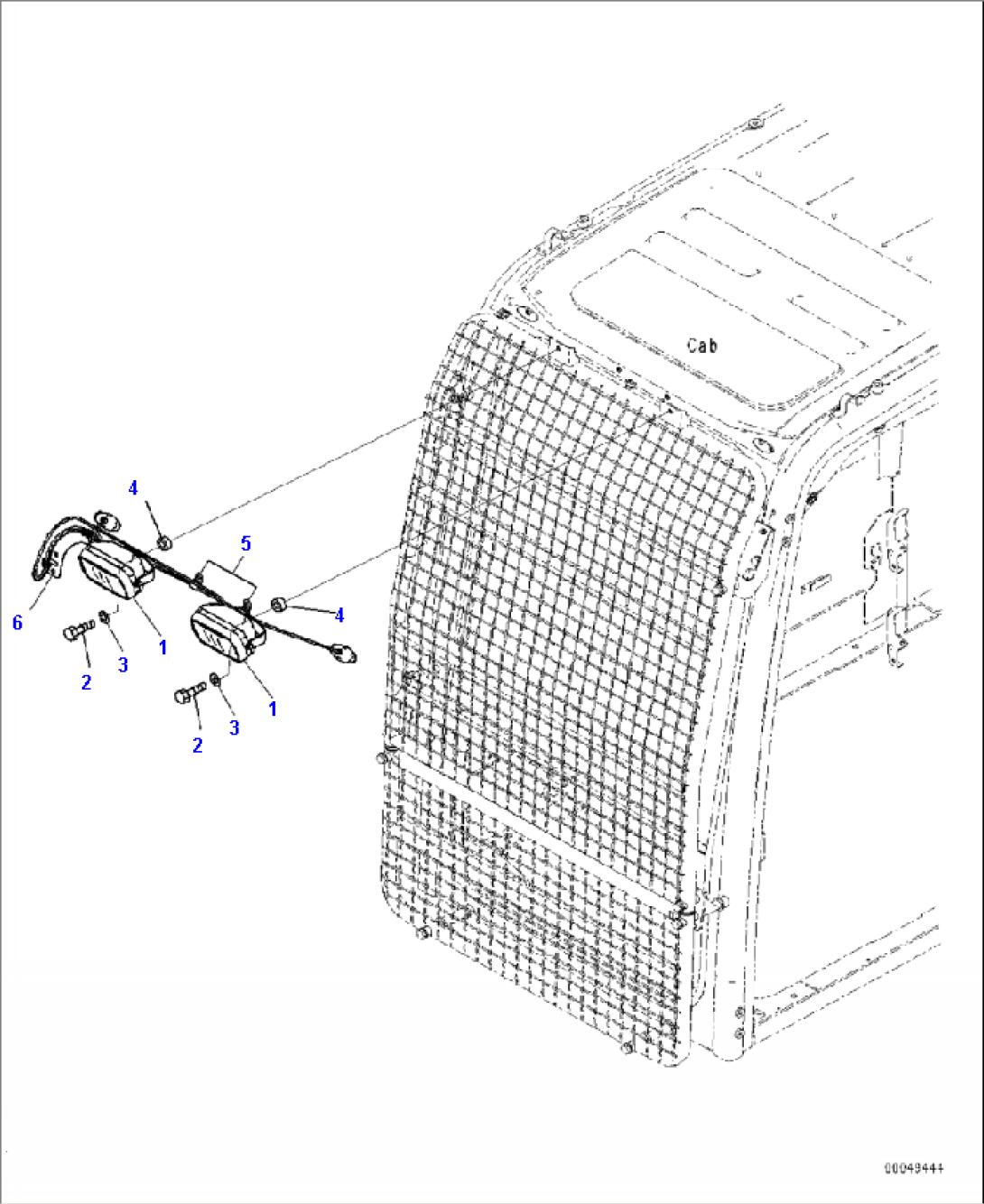

E0310-001001 ADDITIONAL WORKING LAMP CAB FRONT FULL GUARD LV1
