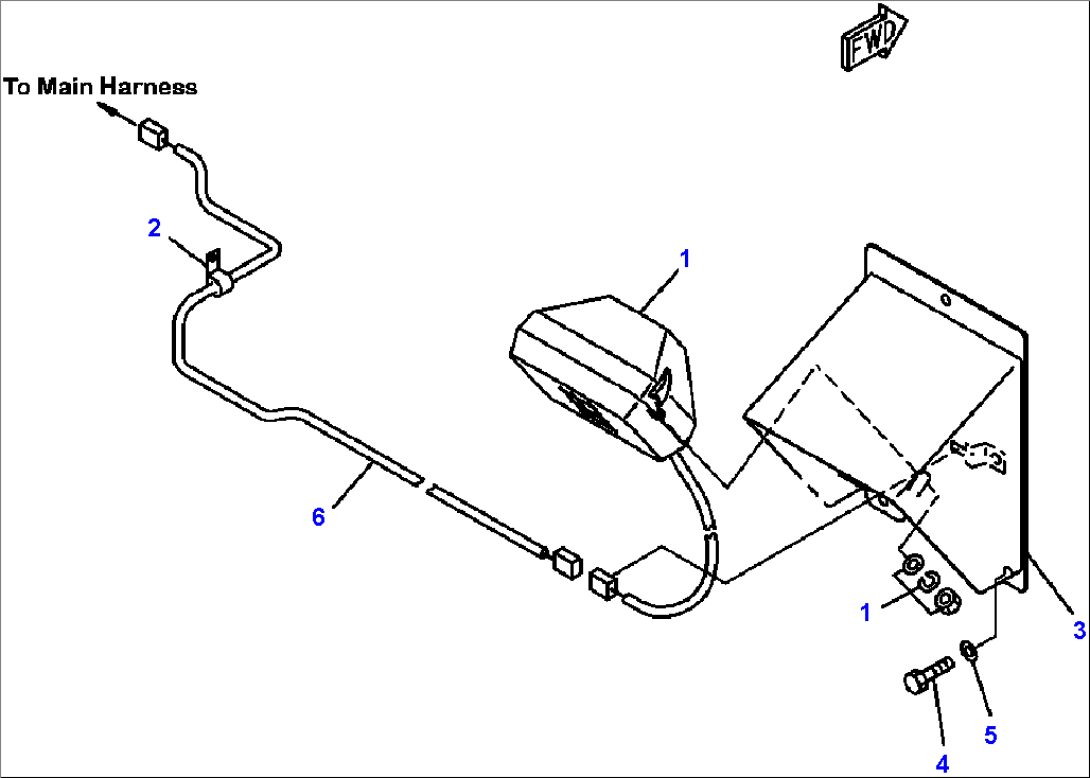

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-23310 | LAMP ASSEMBLY | A11001-- | |
| N/I | 421-06-23340 | LENS | A11001-- | |
| N/I | 421-06-23330 | BULB, 70 W | A11001-- | |
| N/I | 01582-11411 | NUT | A11001-- | |
| N/I | 01602-21442 | WASHER | A11001-- | |
| N/I | 01643-31445 | WASHER | A11001-- | |
| N/I | 08056-00271 | CONNECTOR | A11001-- | |
| 2 | 08036-01014 | CLIP | A11001-- | |
| 3 | 56D-85-21120 | COVER | A11001-- | |
| 4 | 01010-81016 | BOLT | A11001-- | |
| 5 | 01643-31032 | WASHER | A11001-- | |
| 6 | 56B-85-21410 | WIRING HARNESS | A11001-- |
