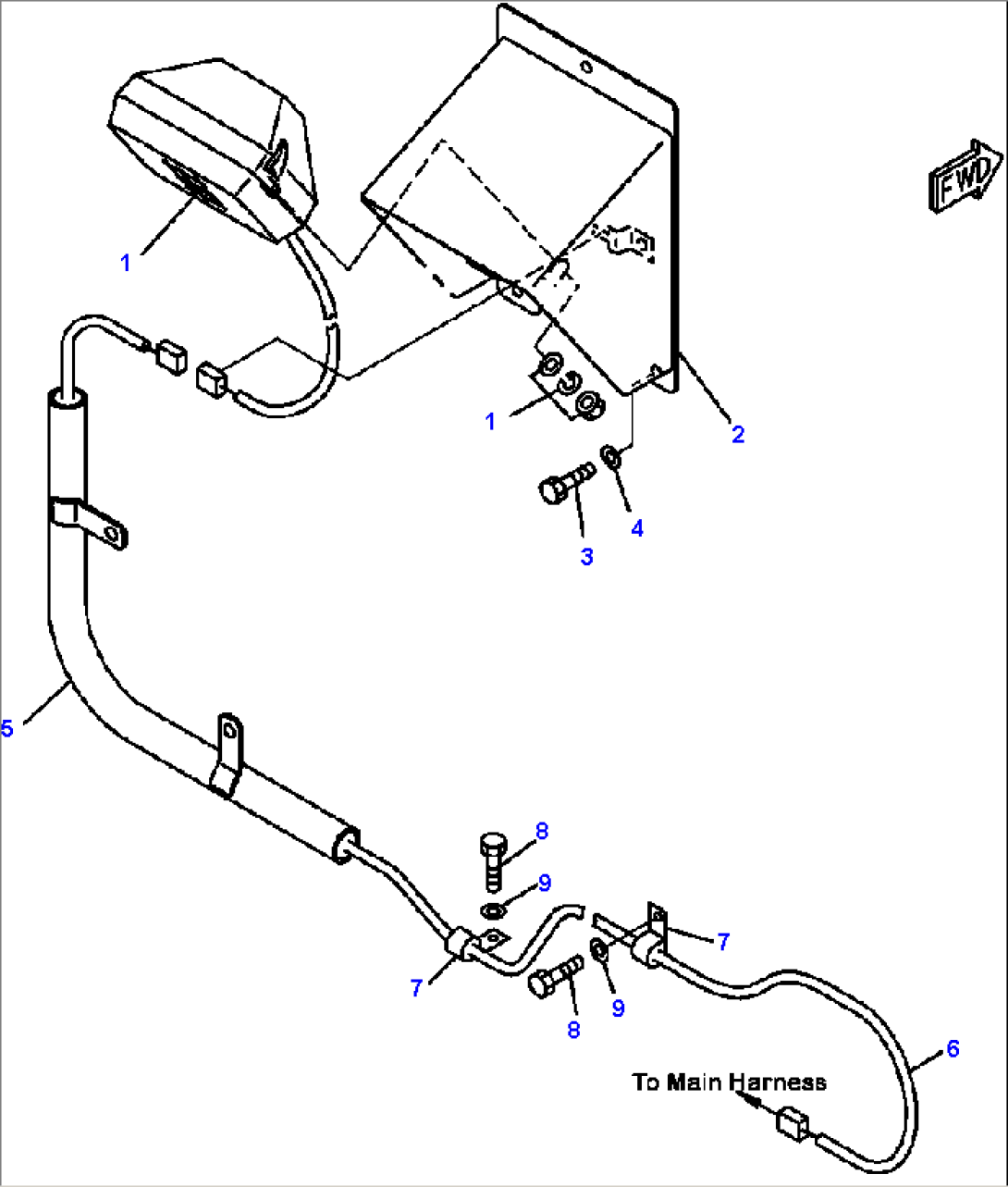

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-23310 | LAMP ASSEMBLY | ||
| N/I | 421-06-23340 | LENS | ||
| N/I | 421-06-23330 | BULB, 70 W, 24 V | ||
| N/I | 01582-11411 | NUT | ||
| N/I | 01602-21442 | WASHER, SPRING | ||
| N/I | 01643-31445 | WASHER | ||
| N/I | 08056-00271 | CONNECTOR | ||
| 2 | 56D-85-21120 | COVER | ||
| 3 | 01010-81016 | BOLT | ||
| 4 | 01643-31032 | WASHER | ||
| 5 | 56B-85-21131 | BRACKET | ||
| 6 | 56B-85-21421 | WIRING HARNESS | ||
| 7 | 08036-01014 | CLIP | ||
| 8 | 01010-81016 | BOLT | ||
| 9 | 01643-31032 | WASHER |
