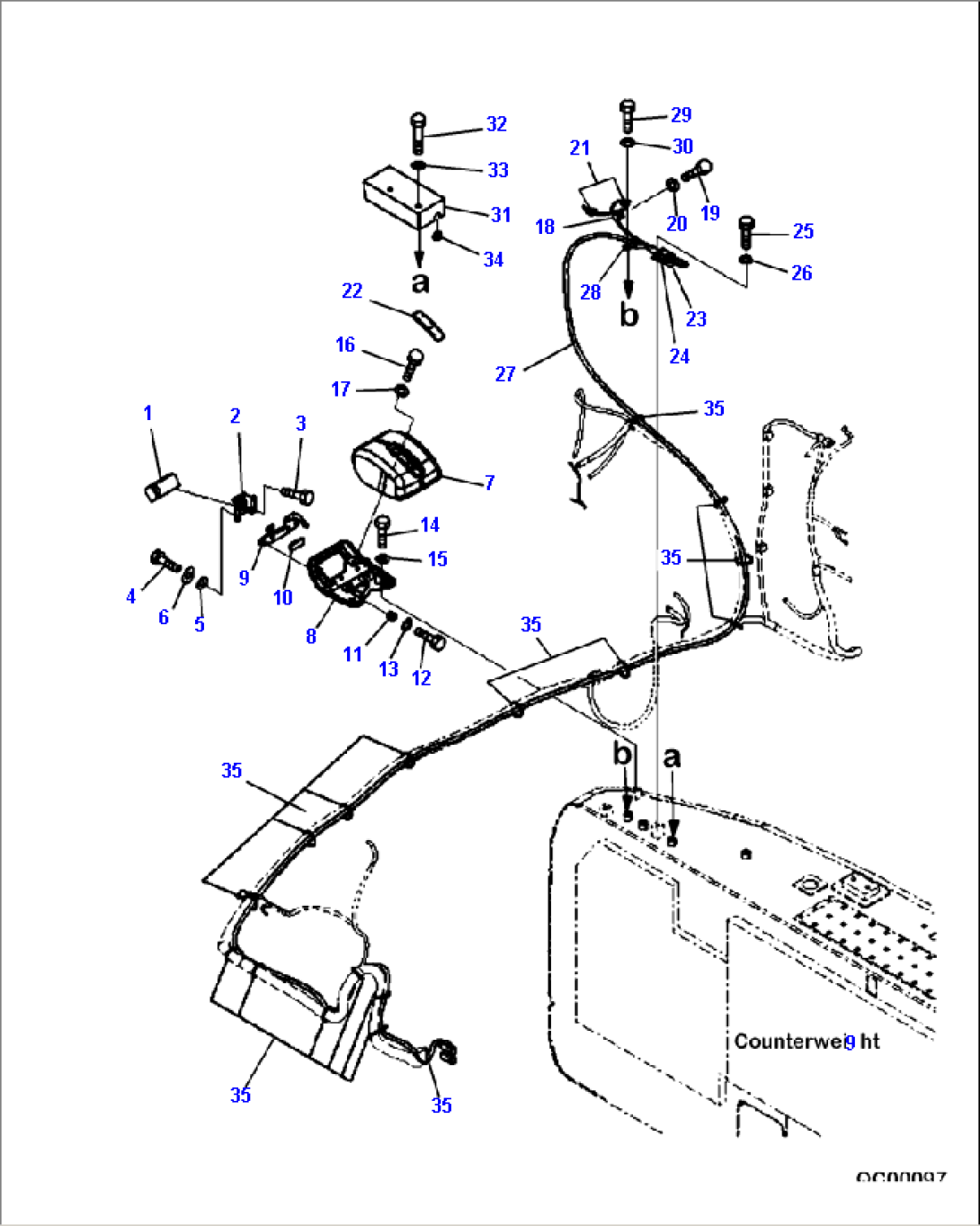

| Item | Part No. | Part Name | Qty | Serial No. |
| 7835-33-1001 | CAMERA ASSEMBLY | A87221-- | ||
| 1 | (NSS) | CAMERA | A87221-- | |
| 2 | (NSS) | BRACKET | A87221-- | |
| 3 | (NSS) | BOLT | A87221-- | |
| 4 | (NSS) | BOLT | A87221-- | |
| 5 | (NSS) | WASHER | A87221-- | |
| 6 | (NSS) | WASHER | A87221-- | |
| 7 | 207-06-76420 | COVER | A87221-- | |
| 8 | 207-06-76431 | COVER | A87221-- | |
| 9 | 207-06-76440 | BRACKET | A87221-- | |
| 10 | 207-06-76460 | SHEET | A87221-- | |
| 11 | 20Y-810-1240 | CUSHION | A87221-- | |
| 12 | 01010-80835 | BOLT | A87221-- | |
| 13 | 01643-30823 | WASHER | A87221-- | |
| 14 | 01010-81230 | BOLT | A87221-- | |
| 15 | 01643-31232 | WASHER | A87221-- | |
| 16 | 01010-80616 | BOLT | A87221-- | |
| 17 | 01643-30623 | WASHER | A87221-- | |
| 18 | 04434-50510 | CLIP | A87221-- | |
| 19 | 01010-81016 | BOLT | A87221-- | |
| 20 | 01643-31032 | WASHER | A87221-- | |
| 21 | 08059-00310 | CLIP | A87221-- | |
| 22 | 207-06-76451 | COVER | A87221-- | |
| 23 | 07095-00317 | CUSHION | A87221-- | |
| 24 | 00434-53212 | CLIP | A87221-- | |
| 25 | 01010-81220 | BOLT | A87221-- | |
| 26 | 01643-31232 | WASHER | A87221-- | |
| 27 | 20Y-06-42270 | CABLE | A87221-- | |
| 28 | 04434-51012 | CLIP | A87221-- | |
| 29 | 01010-81220 | BOLT | A87221-- | |
| 30 | 01643-31232 | WASHER | A87221-- | |
| 31 | 20Y-06-42260 | BRACKET | A87221-- | |
| 32 | 01010-81265 | BOLT | A87221-- | |
| 33 | 01643-31232 | WASHER | A87221-- | |
| 34 | 201-54-13210 | GROMMET | A87221-- | |
| 35 | 08034-20536 | BAND | A87221-- |
