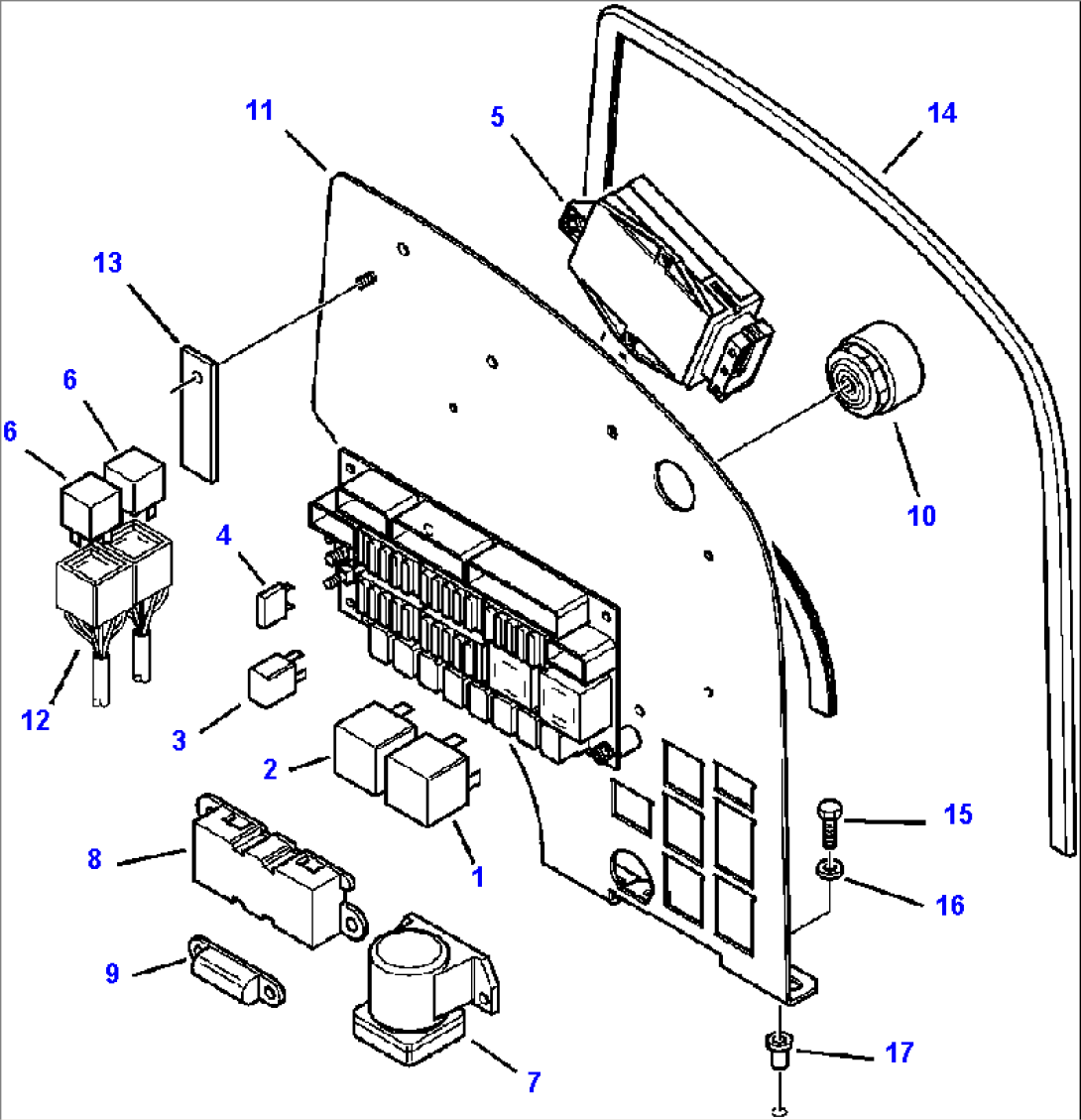

Item | Part No. | Part Name | Qty | Serial No. |
42N-06-11541 | HARNESS, LATERAL | A43001-- | ||
42N-06-15140 | FUSE BOARD | A43001-- | ||
1 | 22E-06-12310 | RELAY, FLASHER | A43001-- | |
2 | 42N-06-15210 | RELAY, STARTER | A43001-- | |
3 | (NSS) | RELAY, DP | A43001-- | |
4 | 21D-06-11810 | FUSE, 7.5 AMP | A43001-- | |
21D-06-11830 | FUSE, 15 AMP | A43001-- | ||
21D-06-11820 | FUSE, 10 AMP | A43001-- | ||
21D-06-11790 | FUSE, 3 AMP | A43001-- | ||
21D-06-12060 | FUSE, 5 AMP | A43001-- | ||
5 | CONTROL UNIT | A43001-- | ||
6 | 226-06-11350 | RELAY, 70 AMP | A43001-- | |
7 | 42N-06-16110 | RELAY, HEATER | A43001-- | |
8 | 42N-06-15250 | BOX, FUSE | A43001-- | |
9 | 42N-06-15260 | FUSE, 175 AMP | A43001-- | |
10 | 22E-06-11830 | ALARM, AUDIBLE | A43001-- | |
11 | 42N-06-15310 | PLATE, MOUNTING | A43001-- | |
12 | 42N-06-11550 | HARNESS | A43001-- | |
13 | 22L-09-R3960 | BRACKET | A43001-- | |
14 | 42N-54-17950 | MOLDING | A43001-- | |
15 | 01010-80620 | BOLT | A43001-- | |
16 | 01640-20610 | WASHER | A43001-- | |
17 | 42N-54-17590 | INSERT | A43001-- | |
F1 - CONTACT RIPLEY PARTS SUPPLY CENTER WITH ENGINE SERIAL NUMBER TO ORDER PROPER ENGINE CONTROLLER. |
