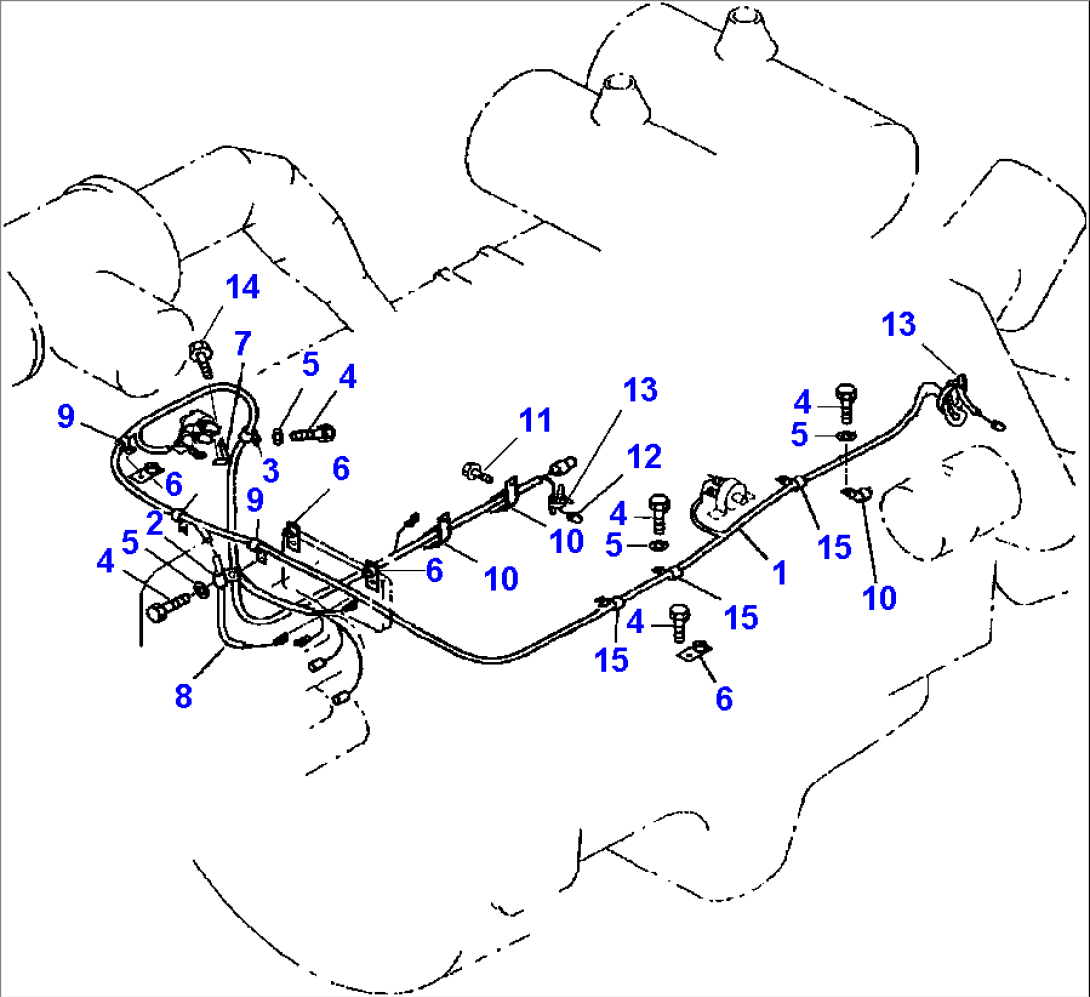

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-A2430 | HARNESS, ENGINE WIRING | A50001-- | |
| 08020-10000 | DIODE | A50001-- | ||
| 2 | 08052-11711 | CLIP | A50001-- | |
| 3 | 04434-51710 | CLIP | A50001-- | |
| 4 | 01010-81020 | BOLT | A50001-- | |
| 5 | 01643-31032 | WASHER | A50001-- | |
| 6 | 426-06-11570 | BRACKET | A50001-- | |
| 7 | 425-46-14130 | PLATE | A50001-- | |
| 8 | 7861-92-3320 | SENSOR, COOLANT TEMPERATURE | A50001-- | |
| 9 | 04434-53412 | CLIP | A50001-- | |
| 10 | 04434-50510 | CLAMP | A50001-- | |
| 11 | C 1 601 | BOLT, HEX - 3/8NCX3/4 | A50001-- | |
| 12 | 1308 655 H1 | SENSOR, OIL LEVEL | A50009-- | |
| OR | ||||
| 12 | 427-06-A2190 | SENSOR, OIL LEVEL | A50001-A50008- | |
| 13 | 08034-20834 | STRAP, TIE | A50001-- | |
| 14 | 01011-61065 | BOLT | A50001-- | |
| 15 | 04434-52712 | CLIP | A50001-- |
