| Item | Part No. | Part Name | Qty | Serial No. |
| (569-15-71001) | TRANSMISSION ASS'Y | 10716- | ||
| (569-15-71000) | TRANSMISSION ASS'Y | 8001-10715 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F3320-51A2 TO F3320-66A2. | ||||

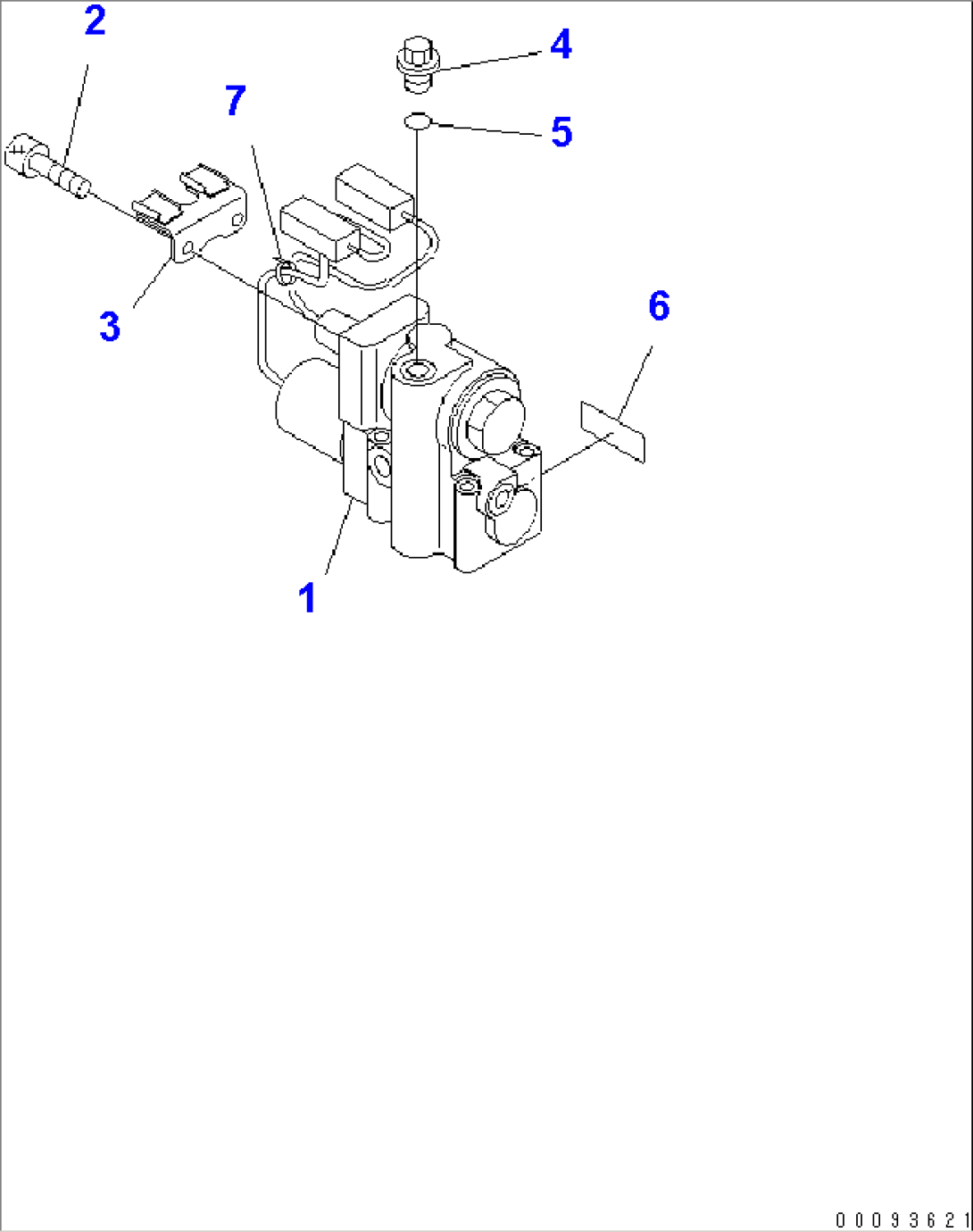

| (569-15-75002) | CONTROL VALVE ASS'Y | 8001- | ||
| (\2\569-15-75001) | CONTROL VALVE ASS'Y | (8001-10412) | ||
| 1 | 566-15-85301 | ECMV ASS'Y | 8001- | |
| 1 | (\2\566-15-85300) | ECMV ASS'Y | (8001-10412) | |
| 2 | 01252-60510 | BOLT | 8001- | |
| 3 | 714-23-15690 | BRACKET | 8001- | |
| 4 | 708-8E-16150 | PLUG | 8001- | |
| 5 | 07002-61023 | O-RING (K3) | 8001- | |
| 6 | (\7\700-11-31940) | PLATE,(LIMITED SUPPLY) | 8001- | |
| 7 | 08034-00310 | BAND | 10413- | |
| 7 | 08034-00414 | BAND | 8001-10412 |
